Trim Work Begins

Picture of By Rob Harvey
By Rob Harvey

Marketing Manager - Bridge Classic Cars

Classic car technician Brian has begun the trim work on our 1929 Riley 9 Tourer. The first step of this was to remove the front seats and base boards from the car. Brian then removed the rear axle cover so that it could be used as a pattern to make the rear seat base board.

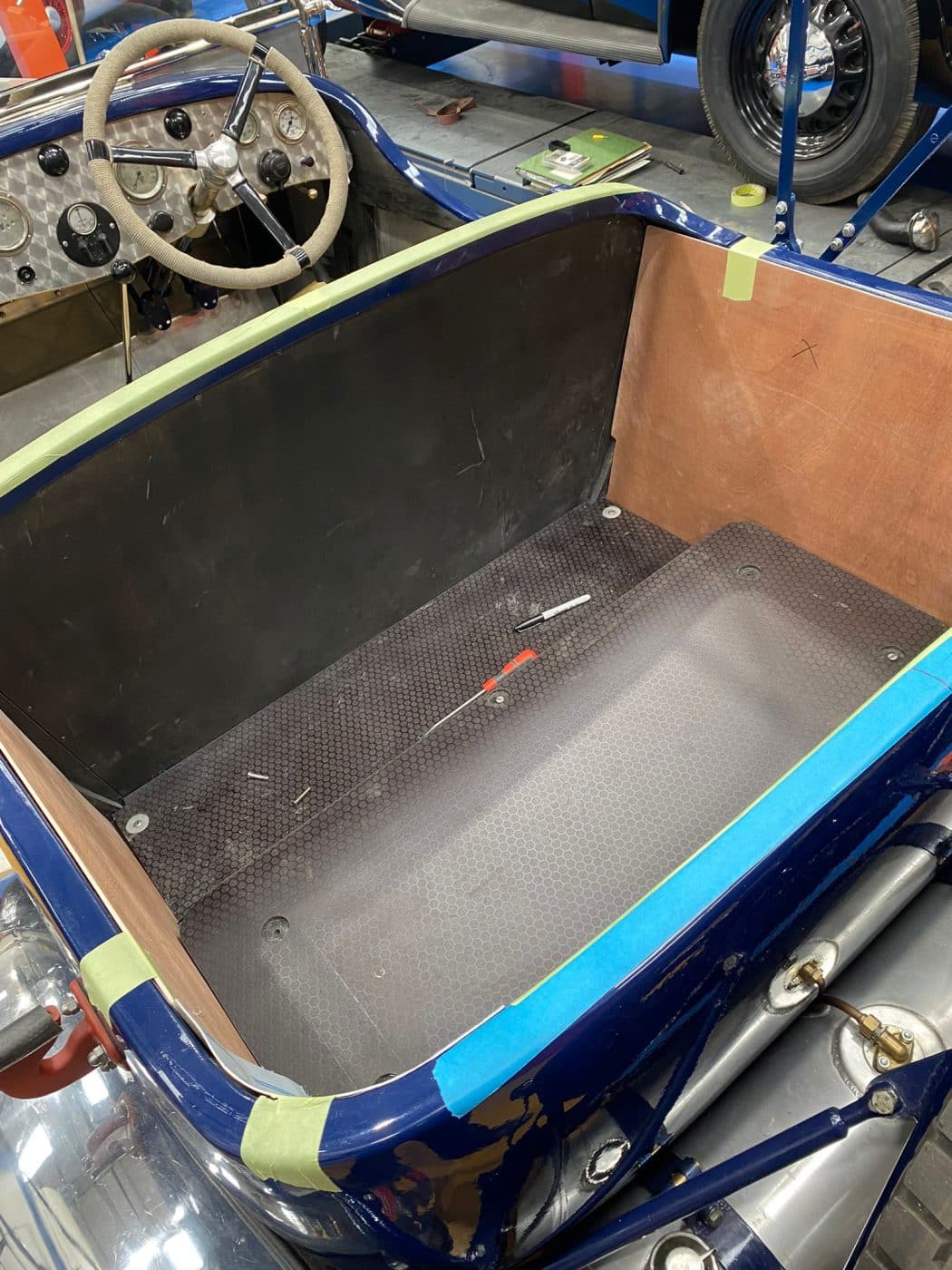

These were cut out before Brian went on to remove the rear floor board to trim the sides in order to allow for the side panels to fit. The rear seat board was then fitted into the car and the backboard was cut out.

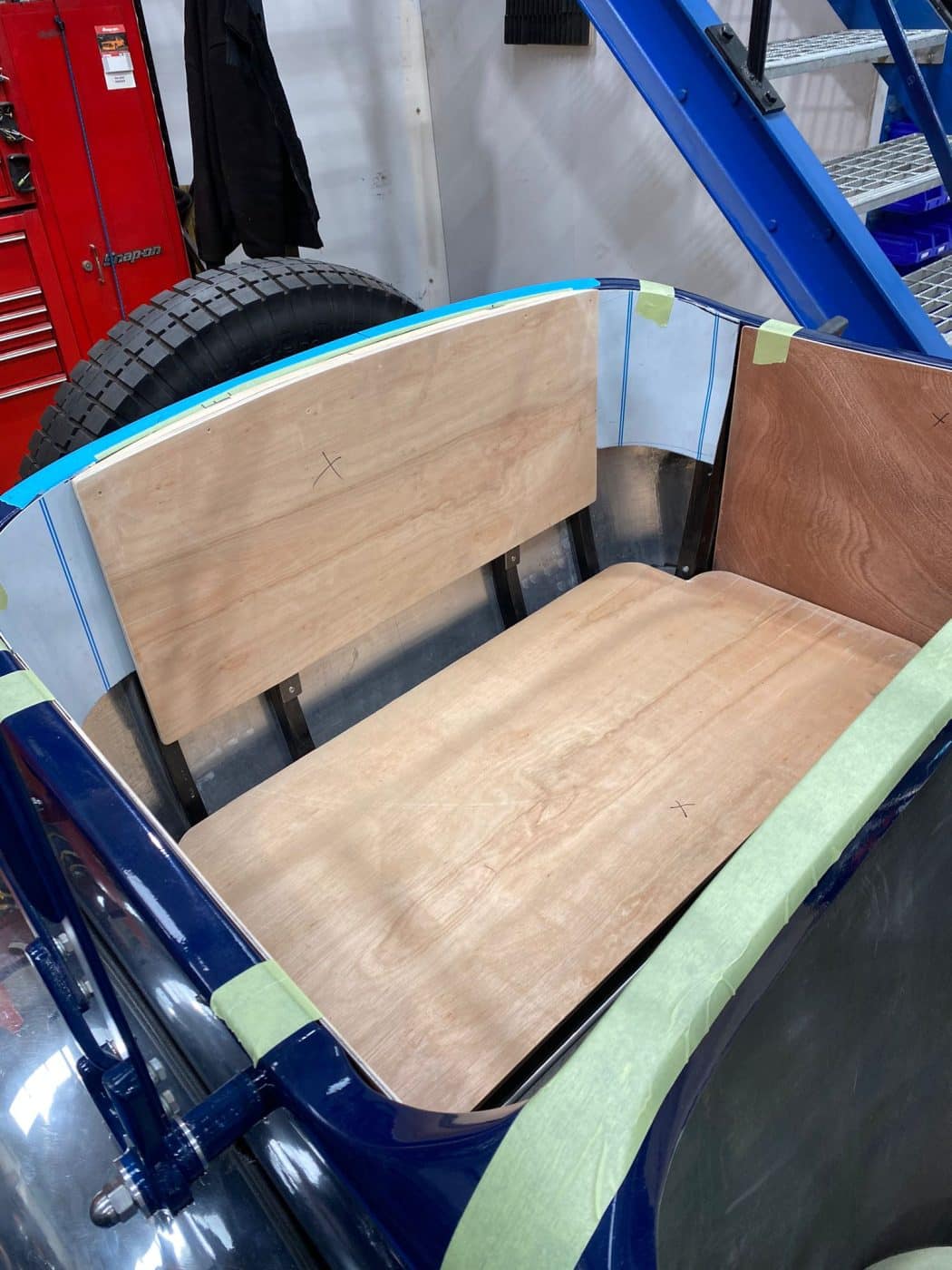

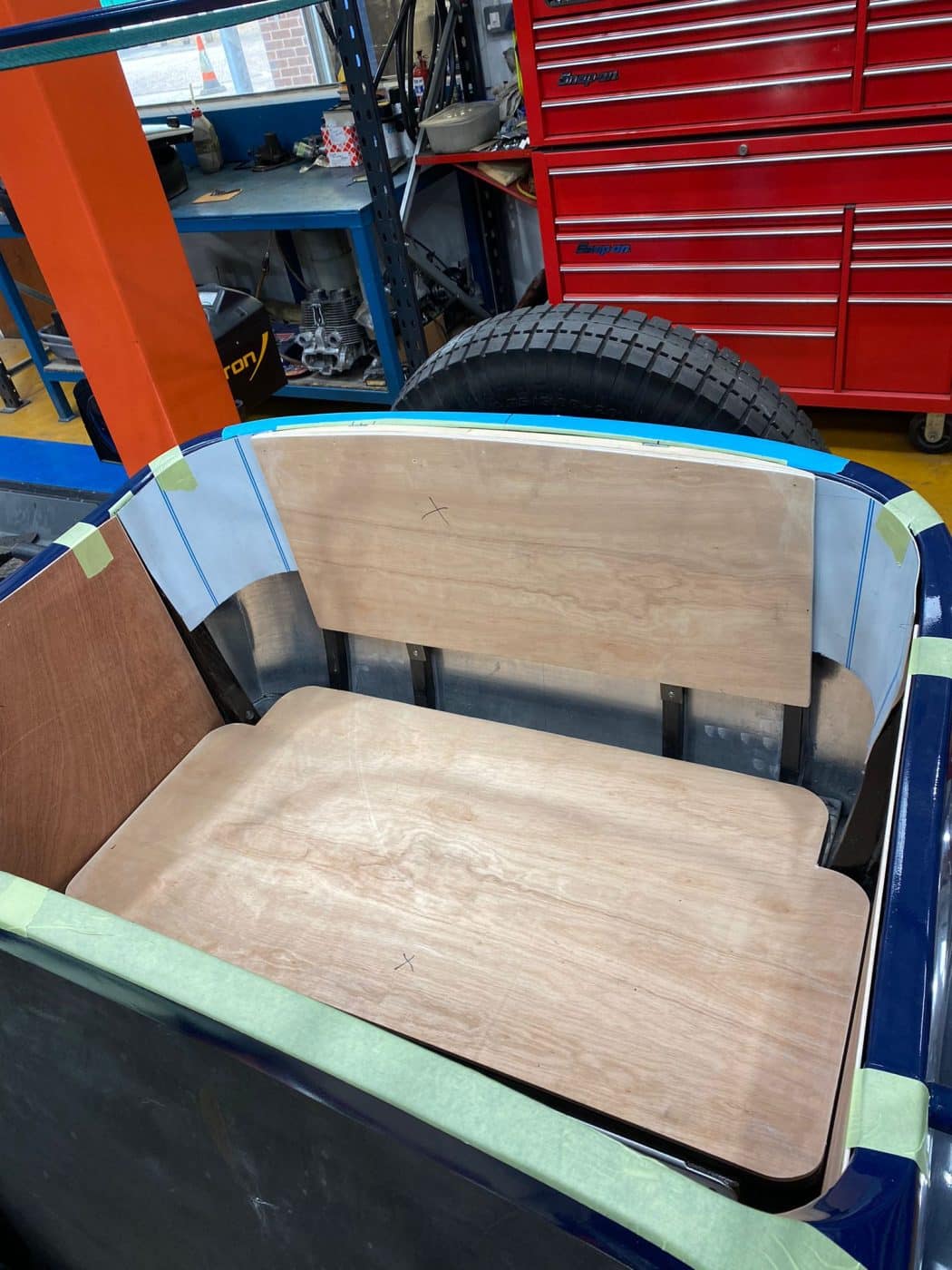

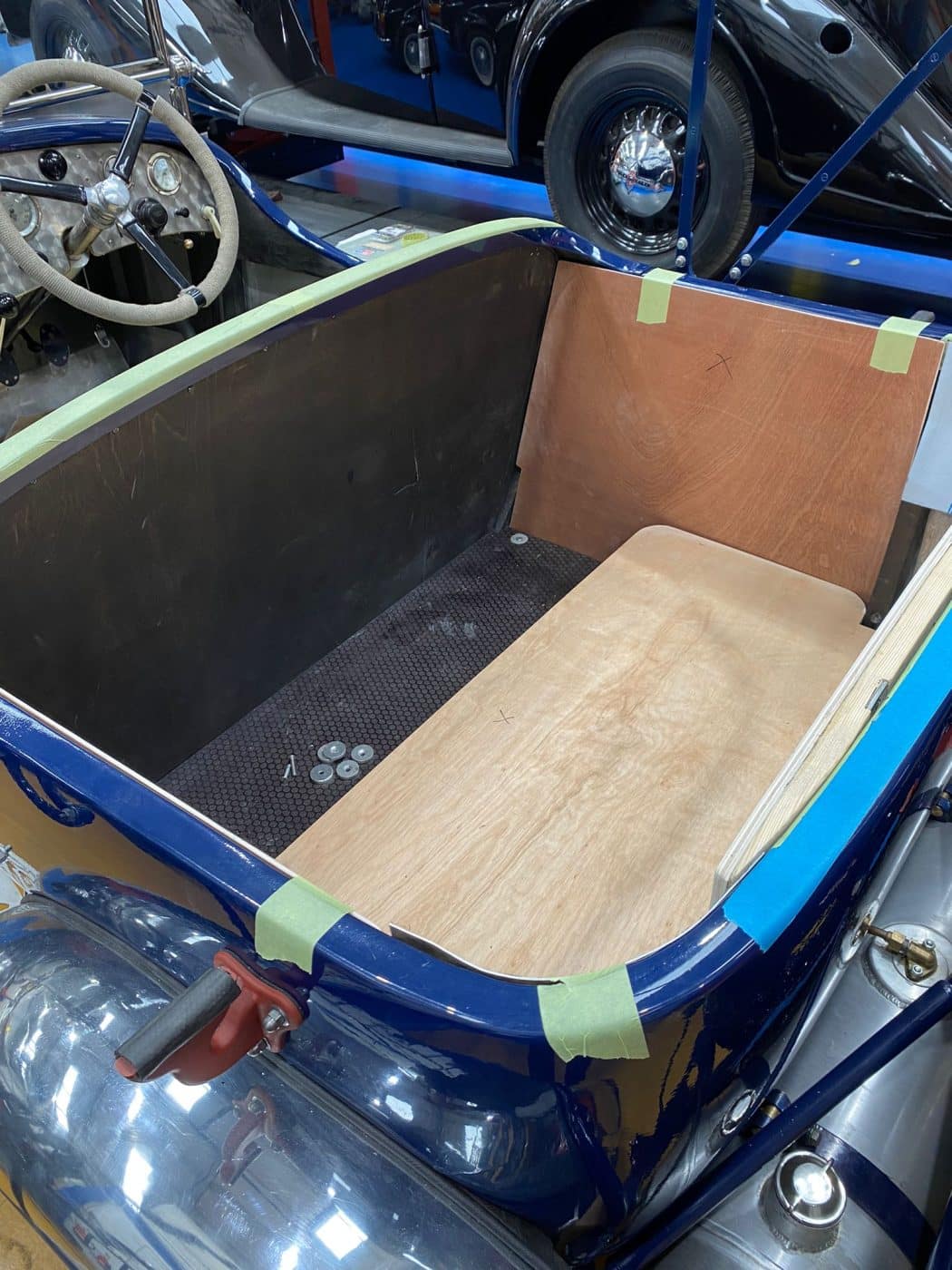

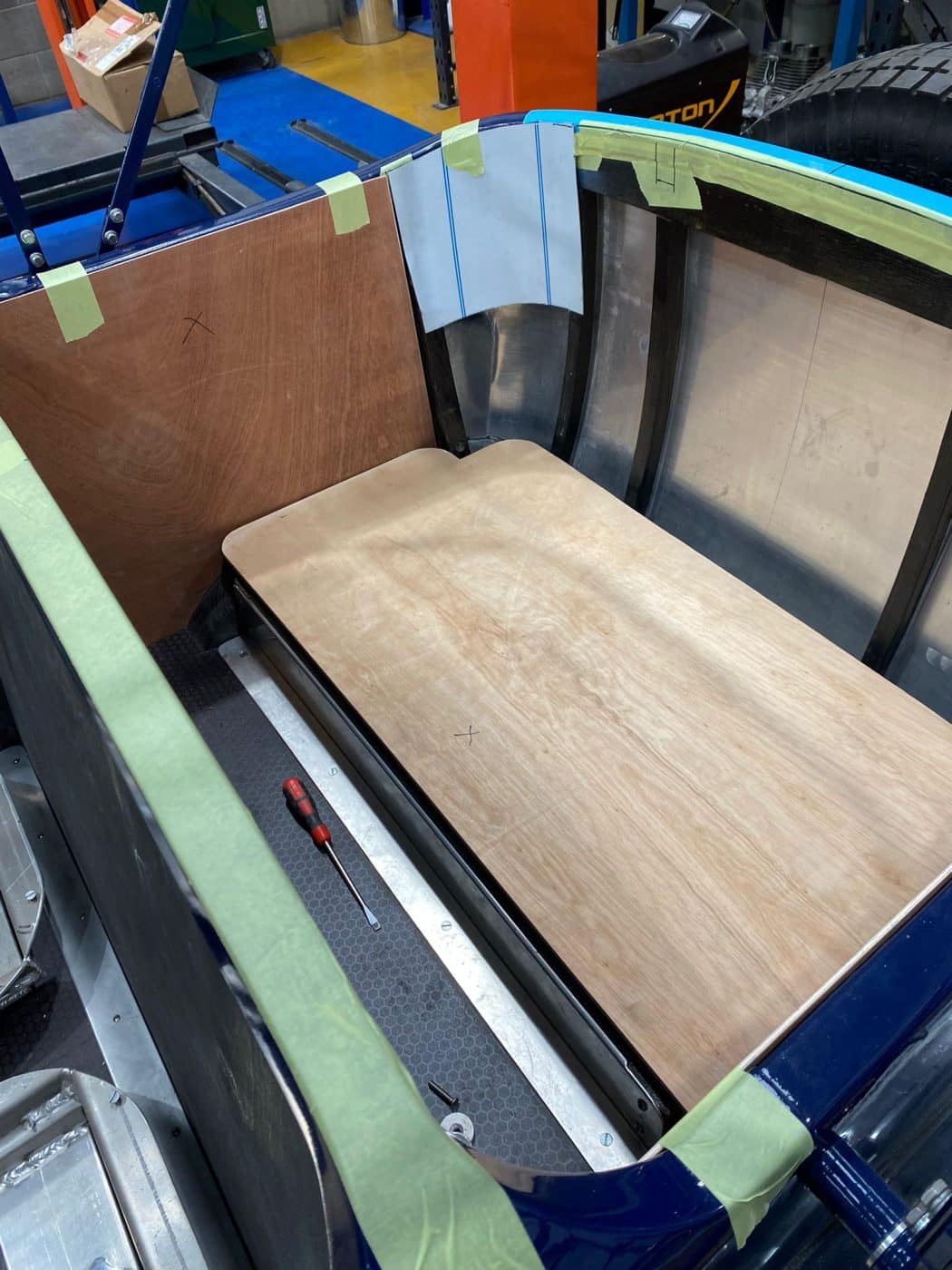

Brian made the pattern for the rear seat top edge and then cut this out. The rear seat board was trial fitted and the back edge was cut in line with the curve of the car body.

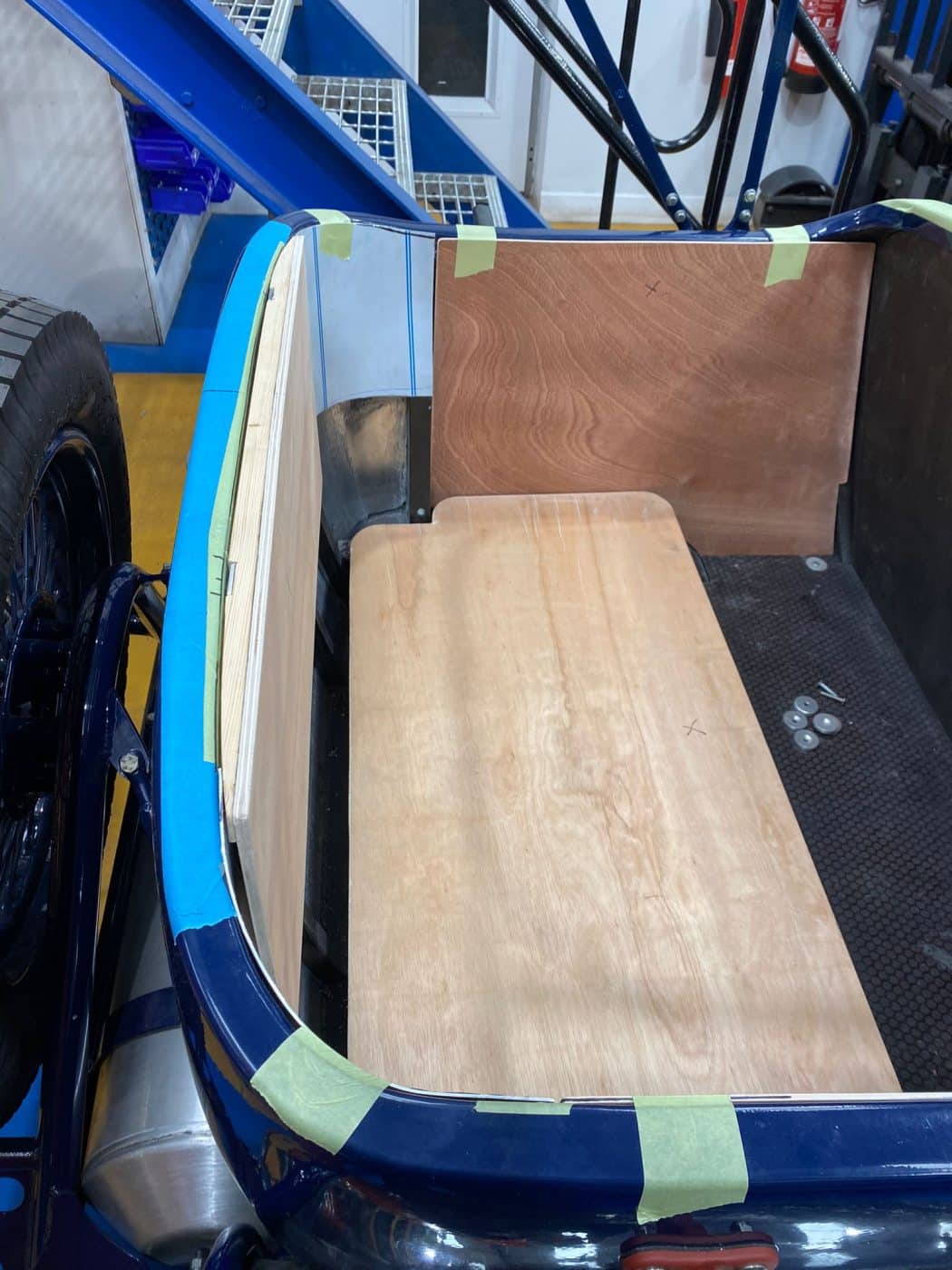

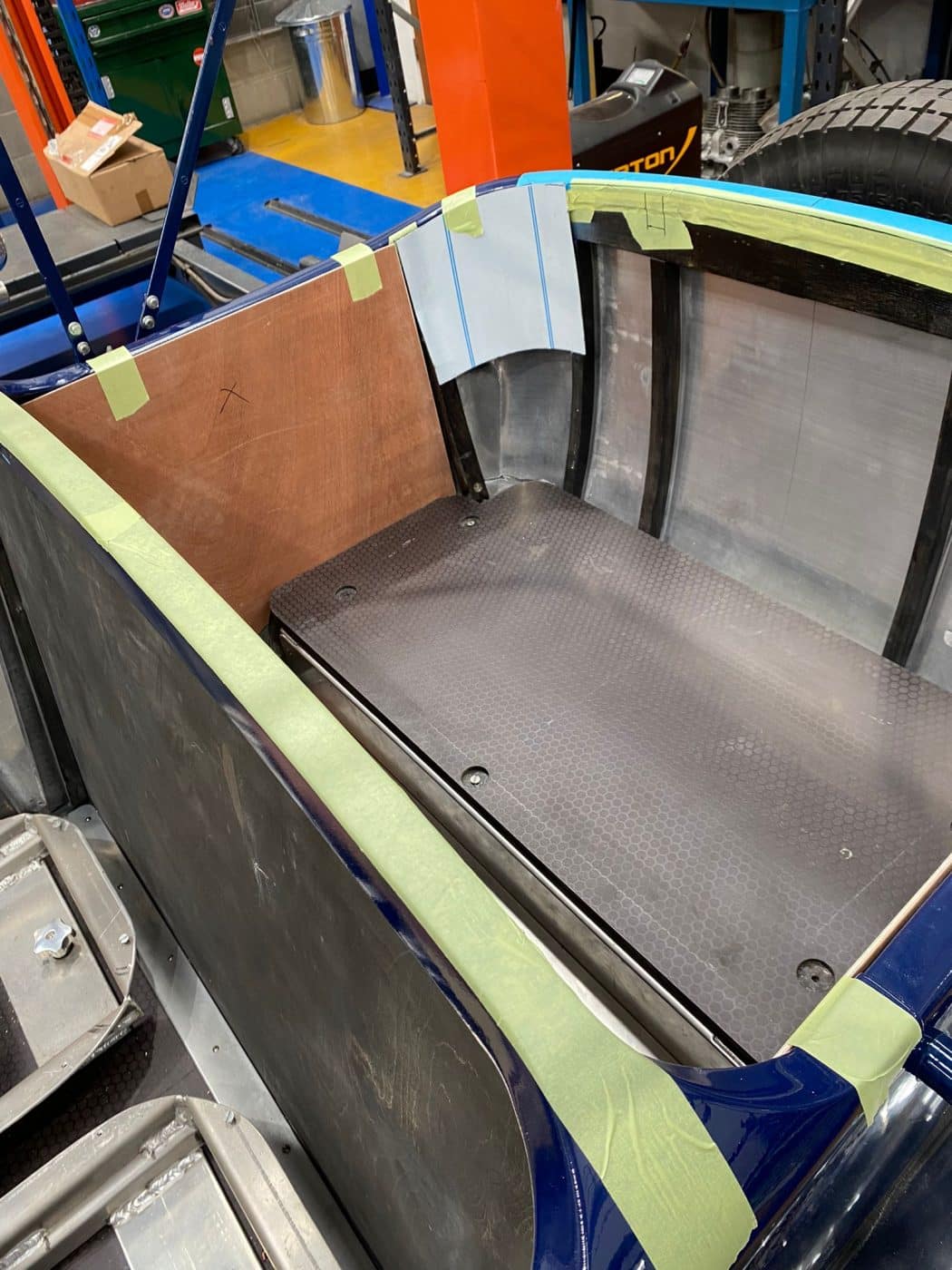

Rear quarter panels were the next focus of Brian. He made paper patterns and used these to mark out the panels on plywood. These were cut out and then fit into the car. The axle cover board was re-fitted before the rear base seat board was re-fitted too.

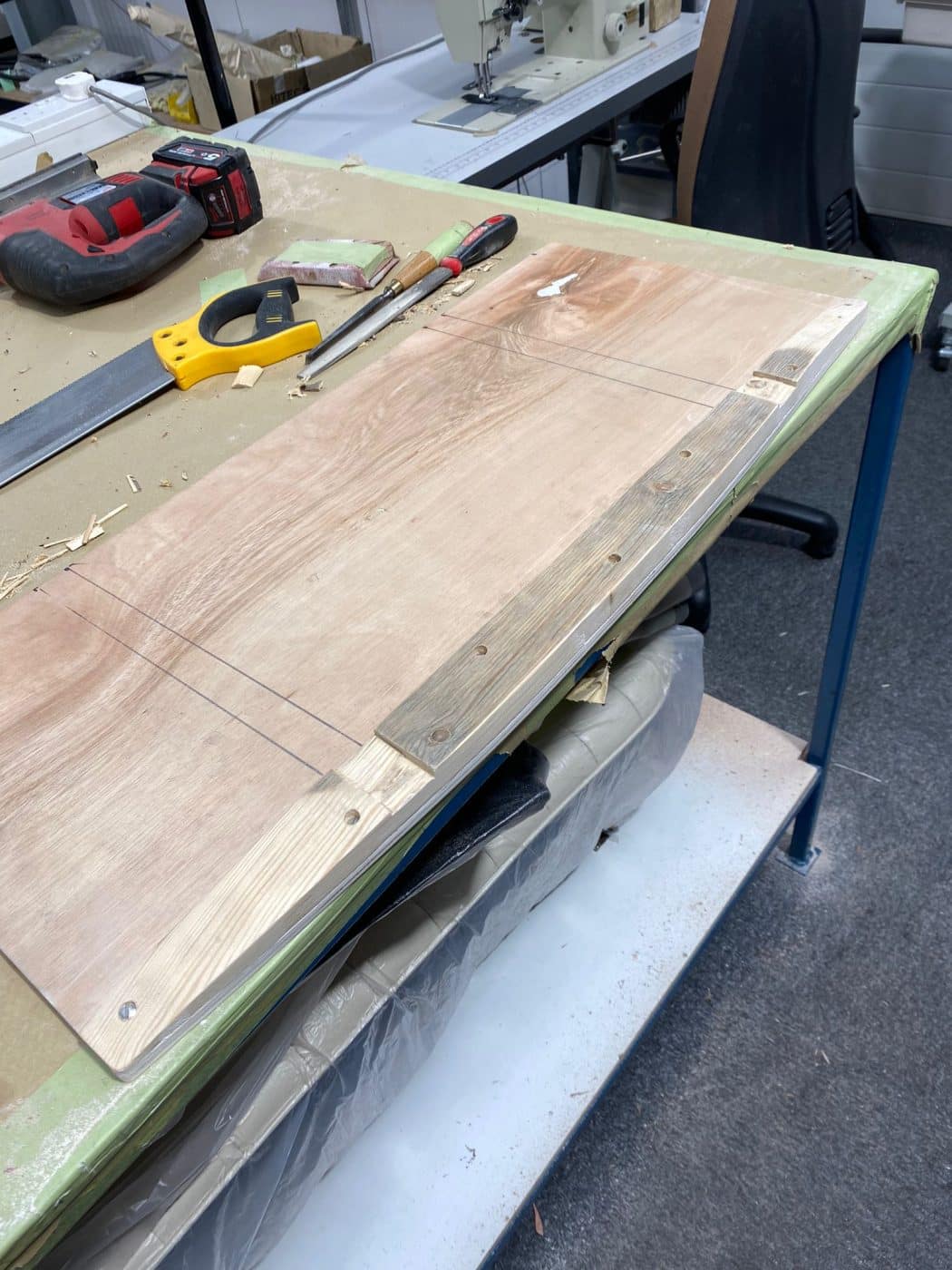

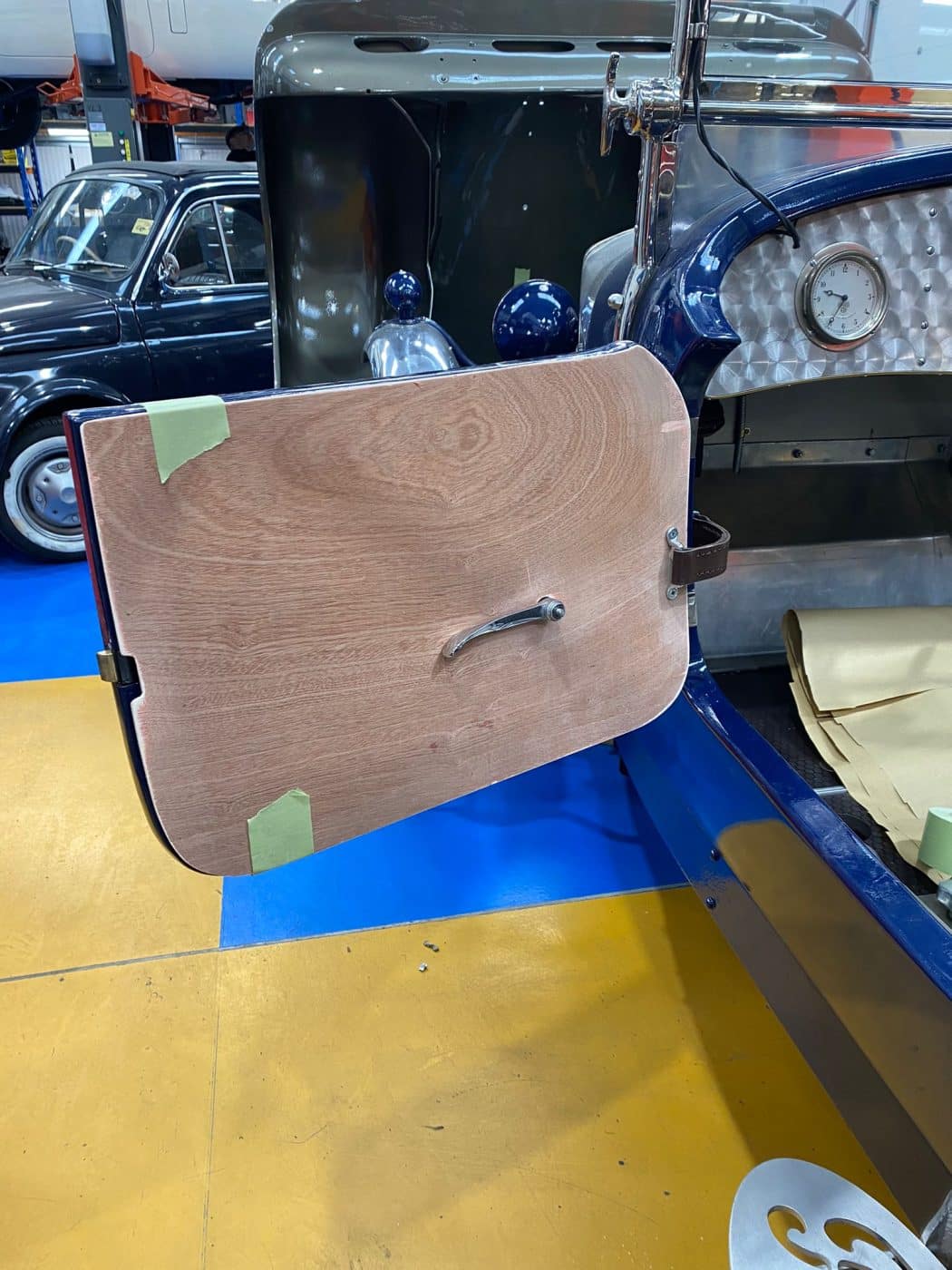

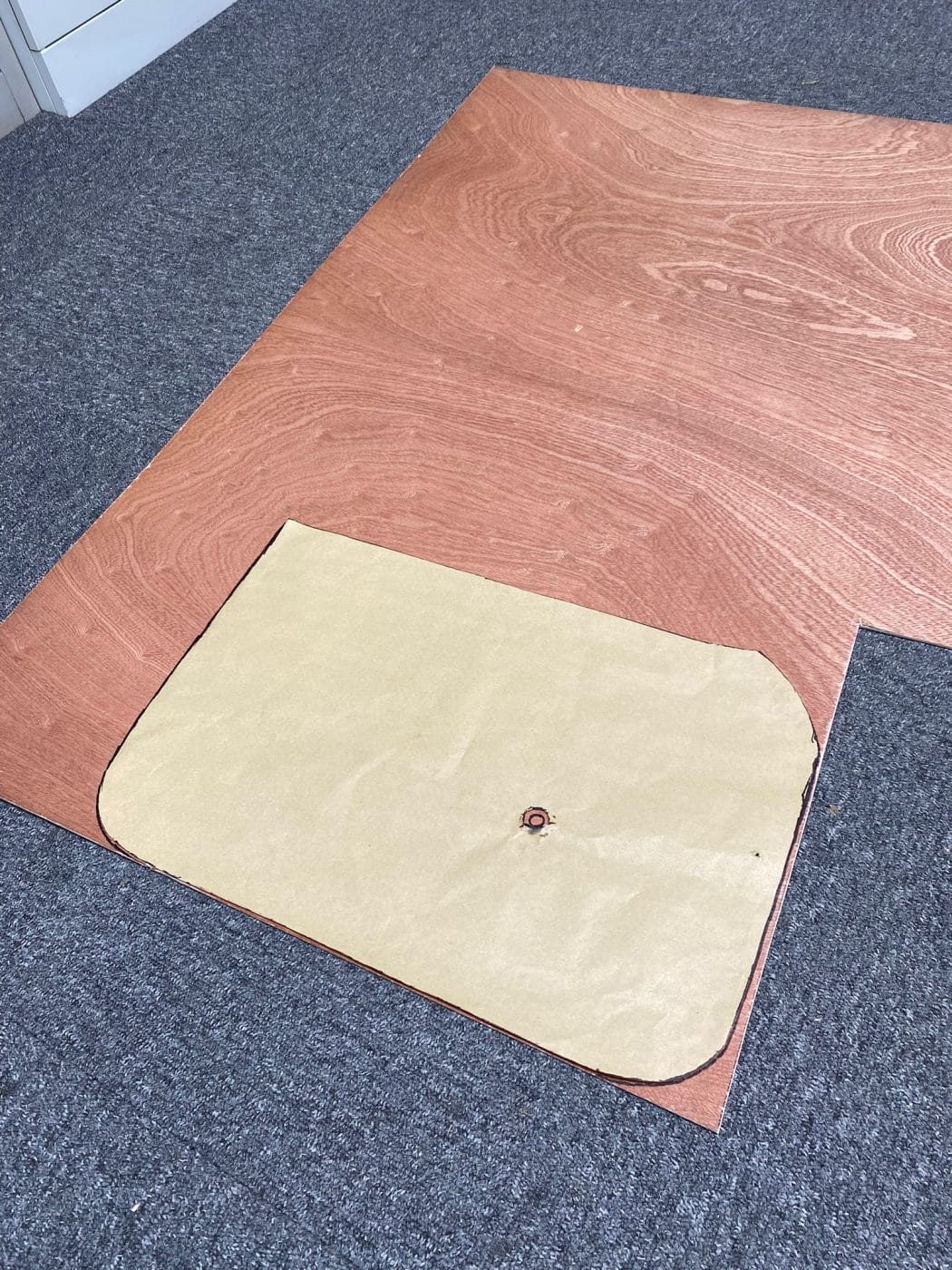

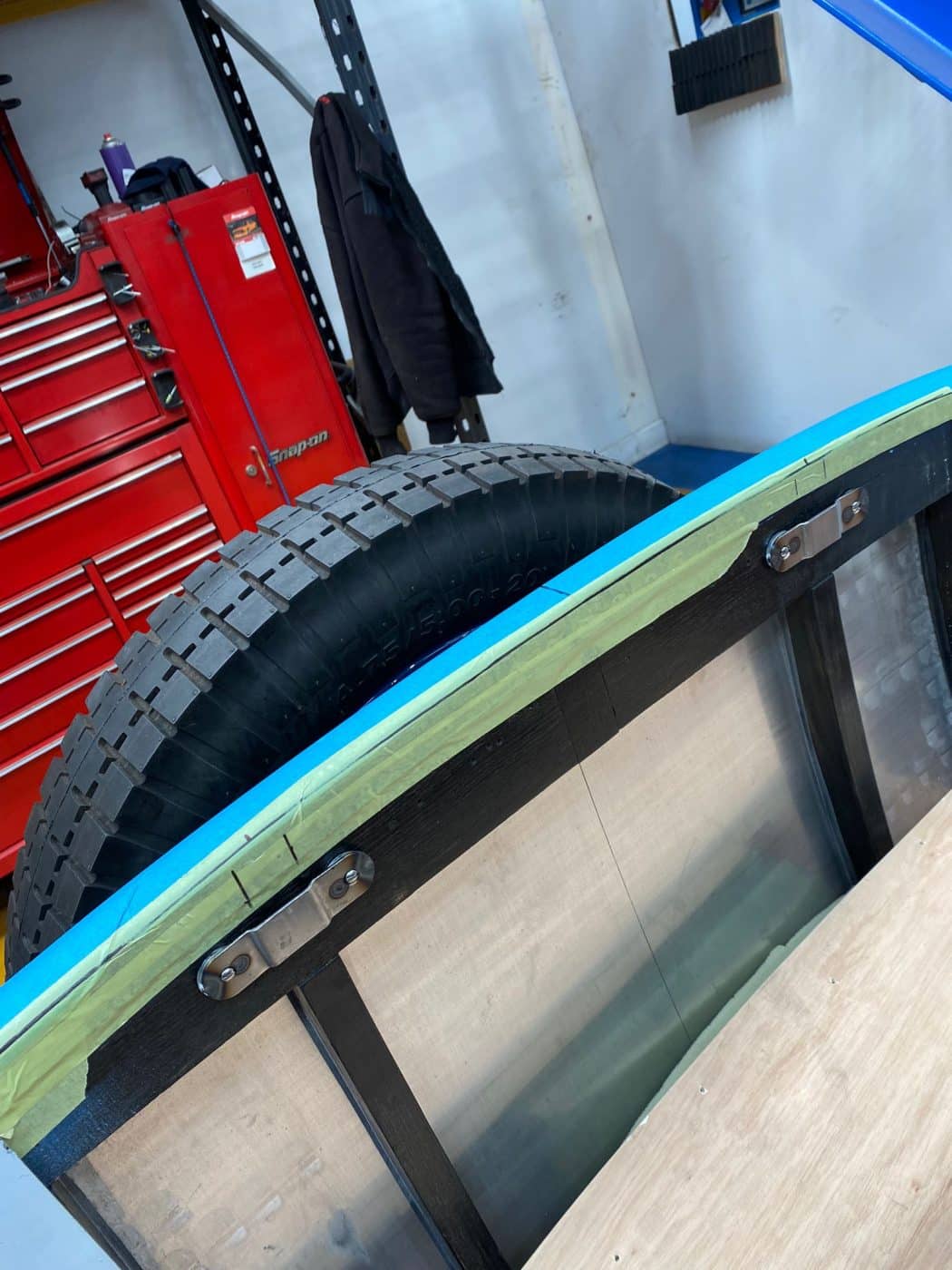

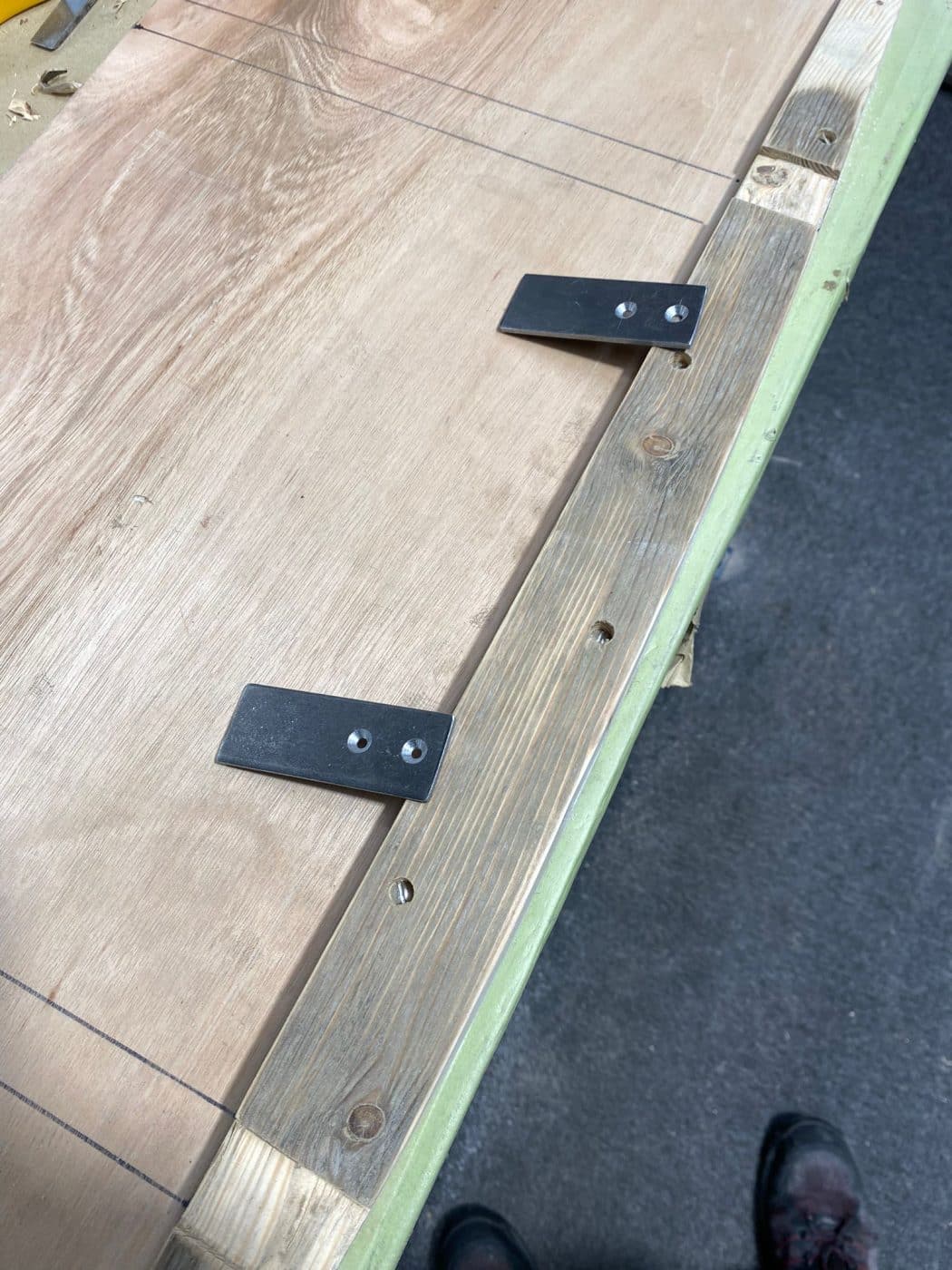

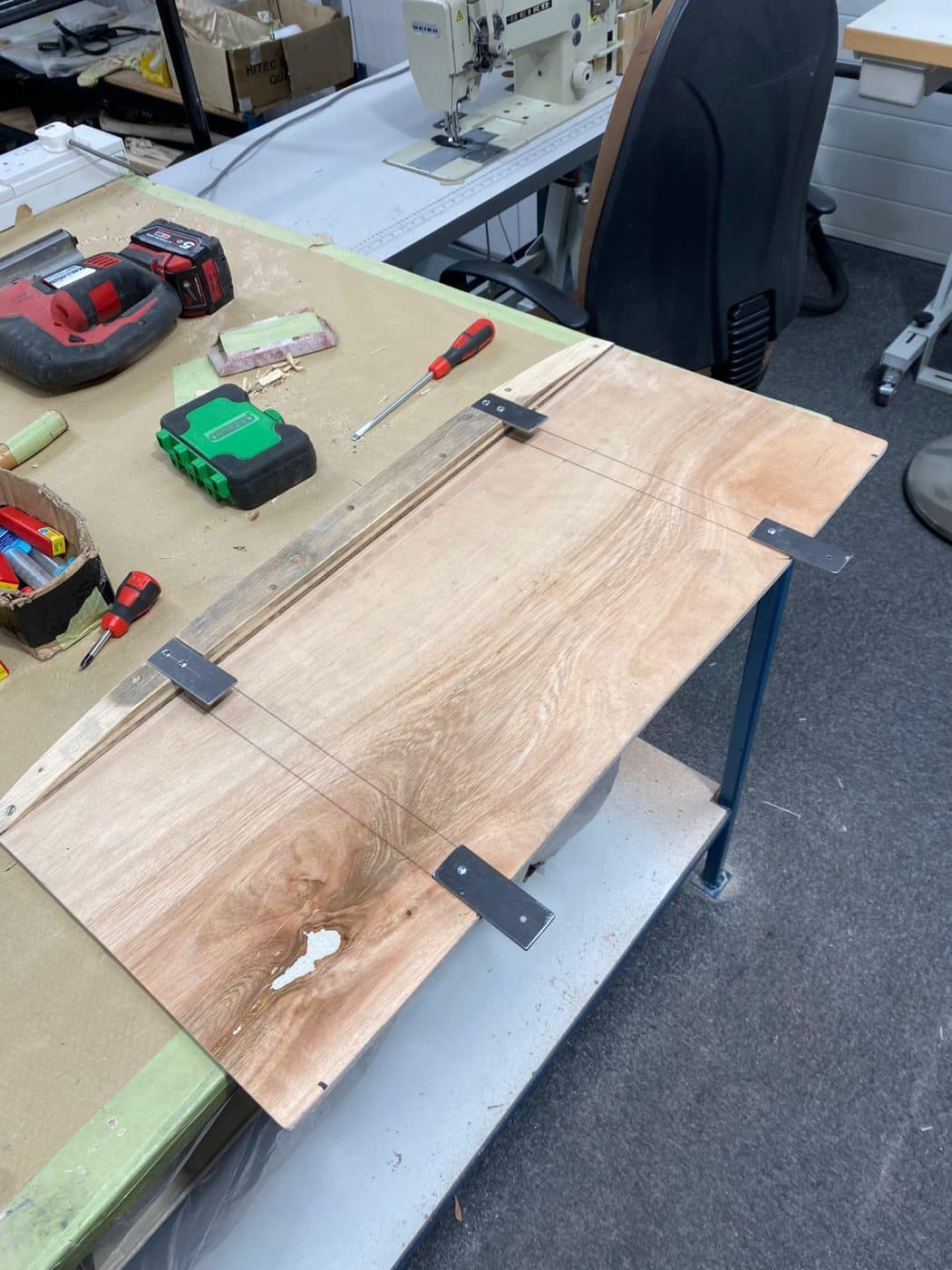

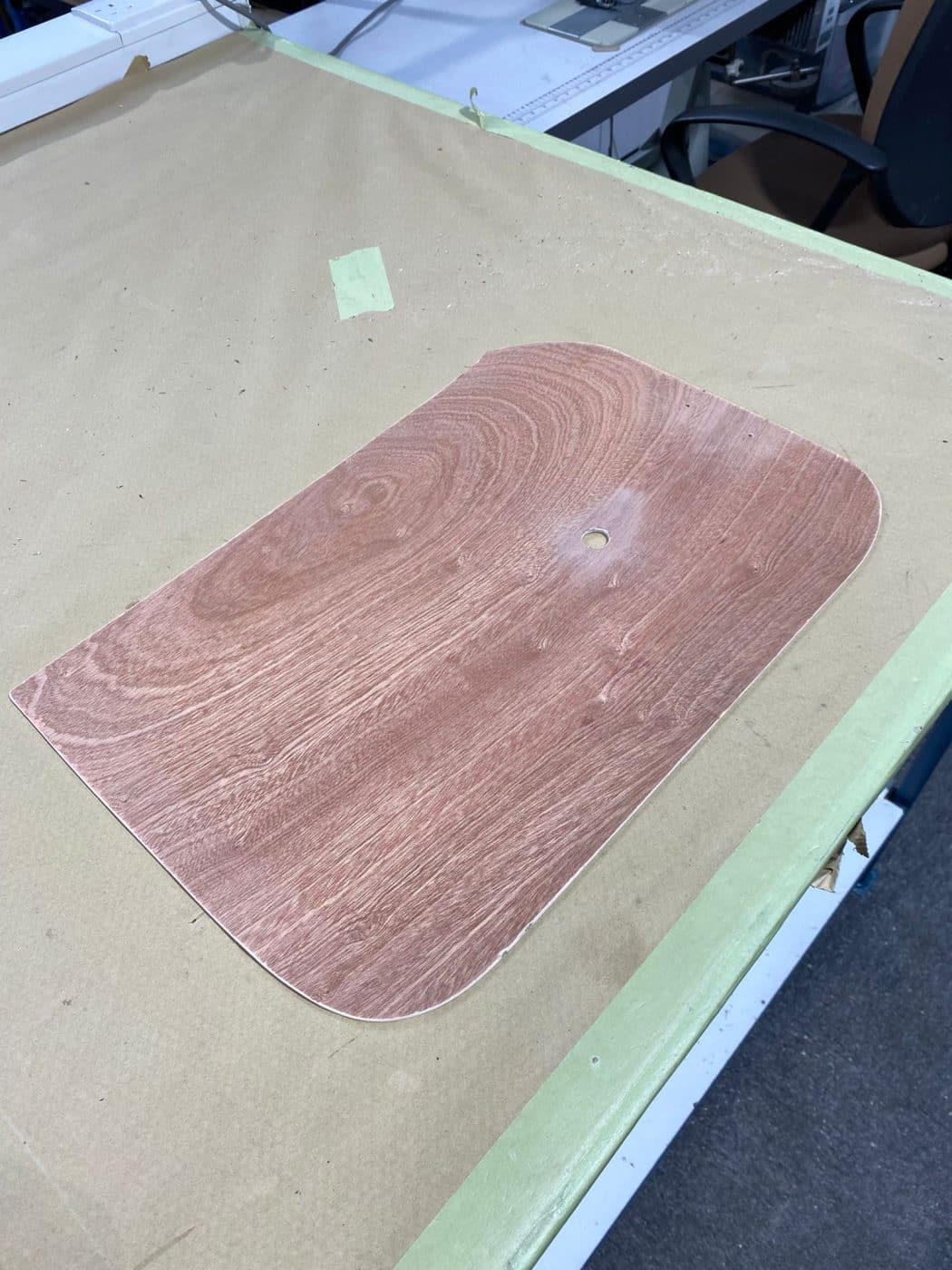

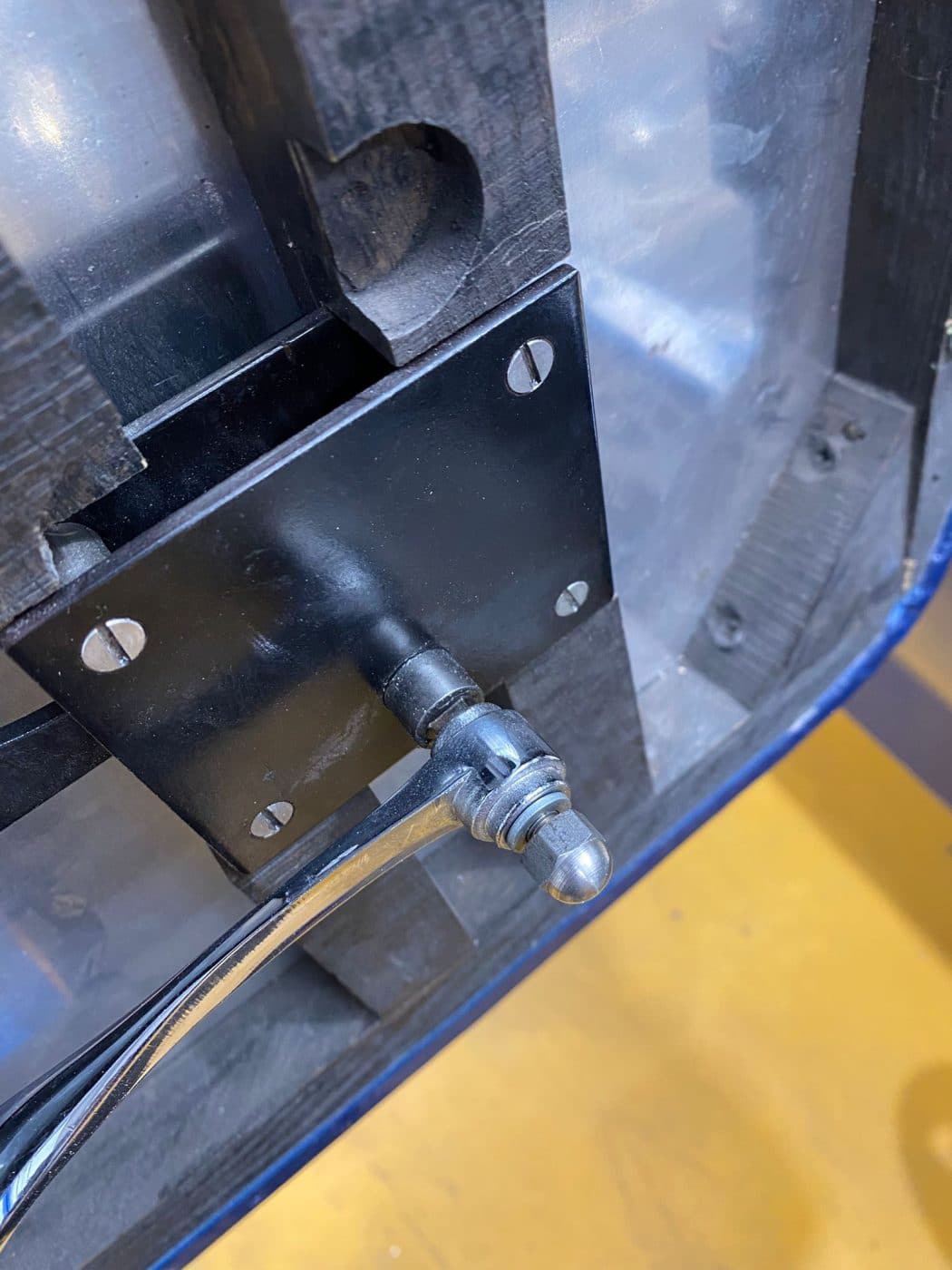

Brian went on to cut slots out for the rear squab board brackets and then fit the brackets in the car. He fit the squab board into the car before moving on to the door of our classic Riley. Once the door handle was removed, Brian made a paper pattern for the door panel and marked this out on wood. The door panel was cut out and a hole was made for the lock handle.

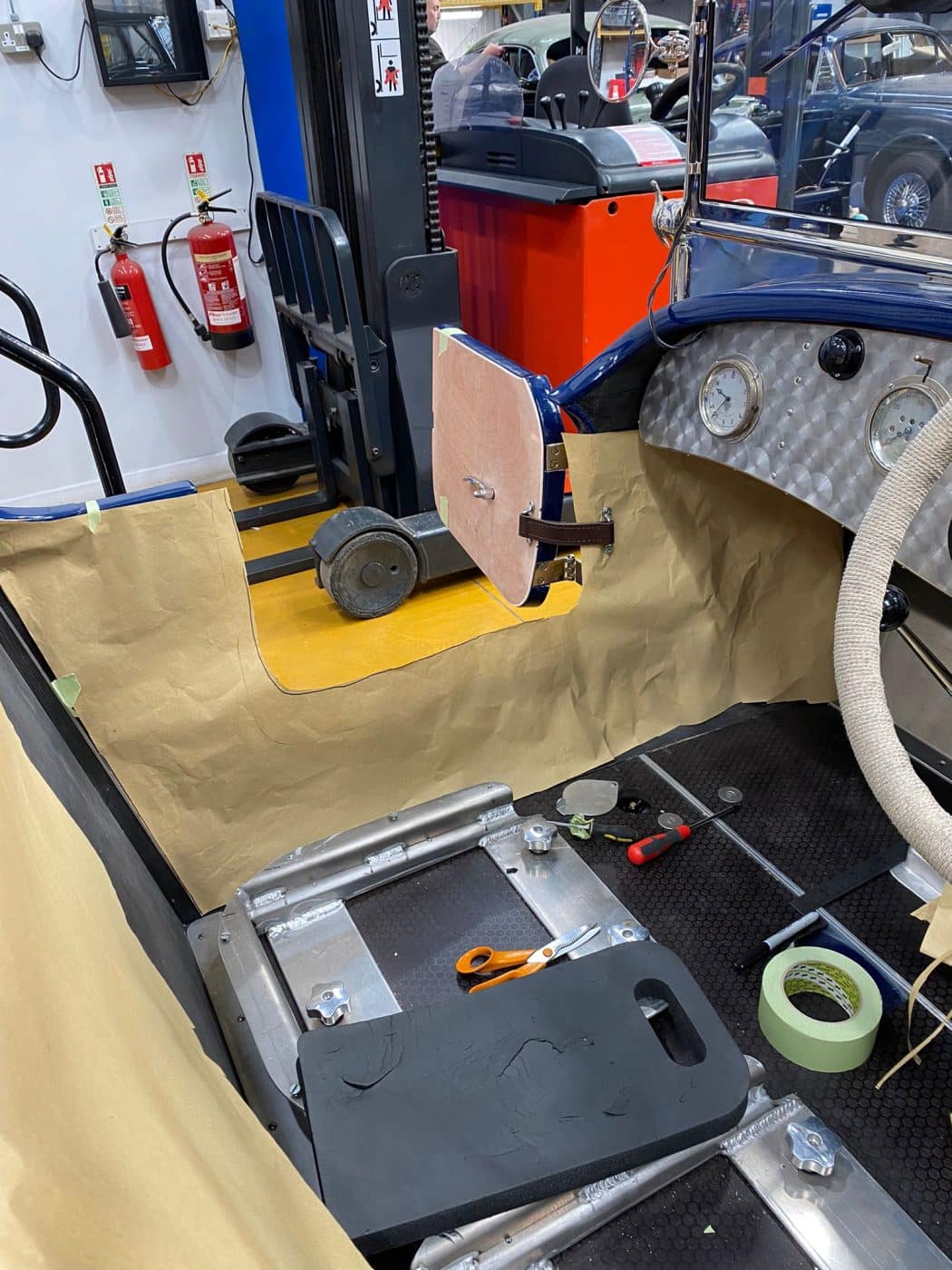

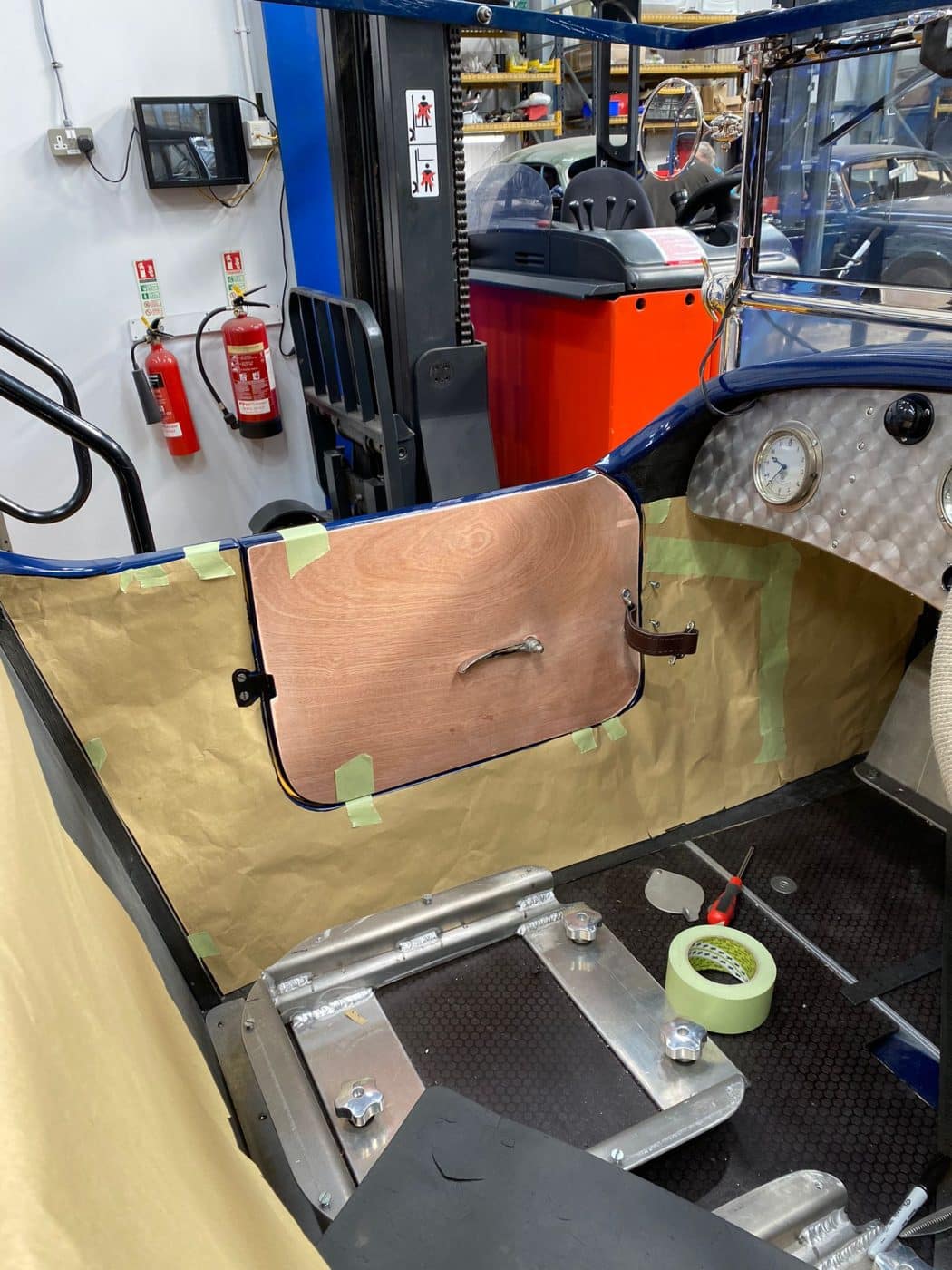

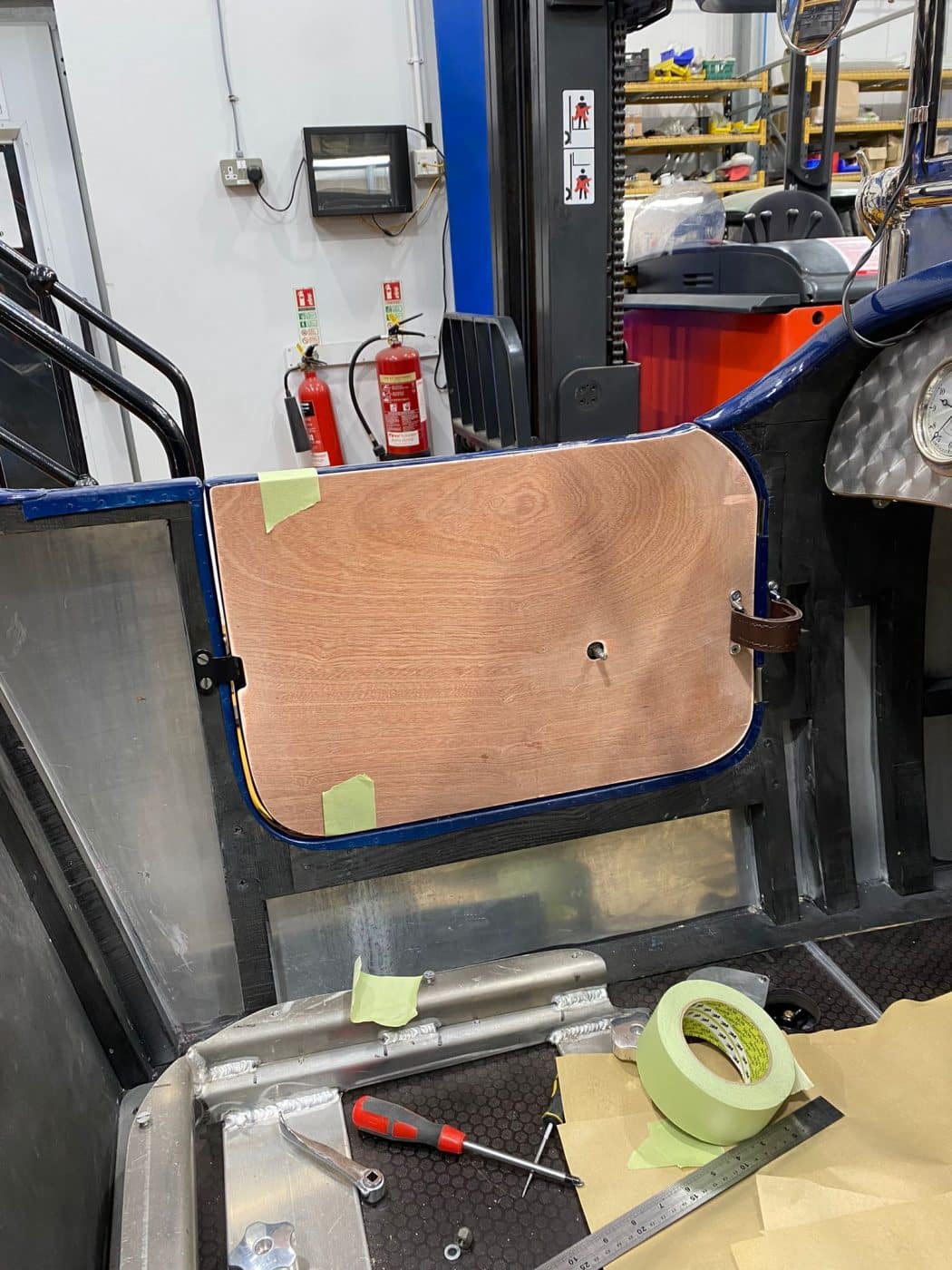

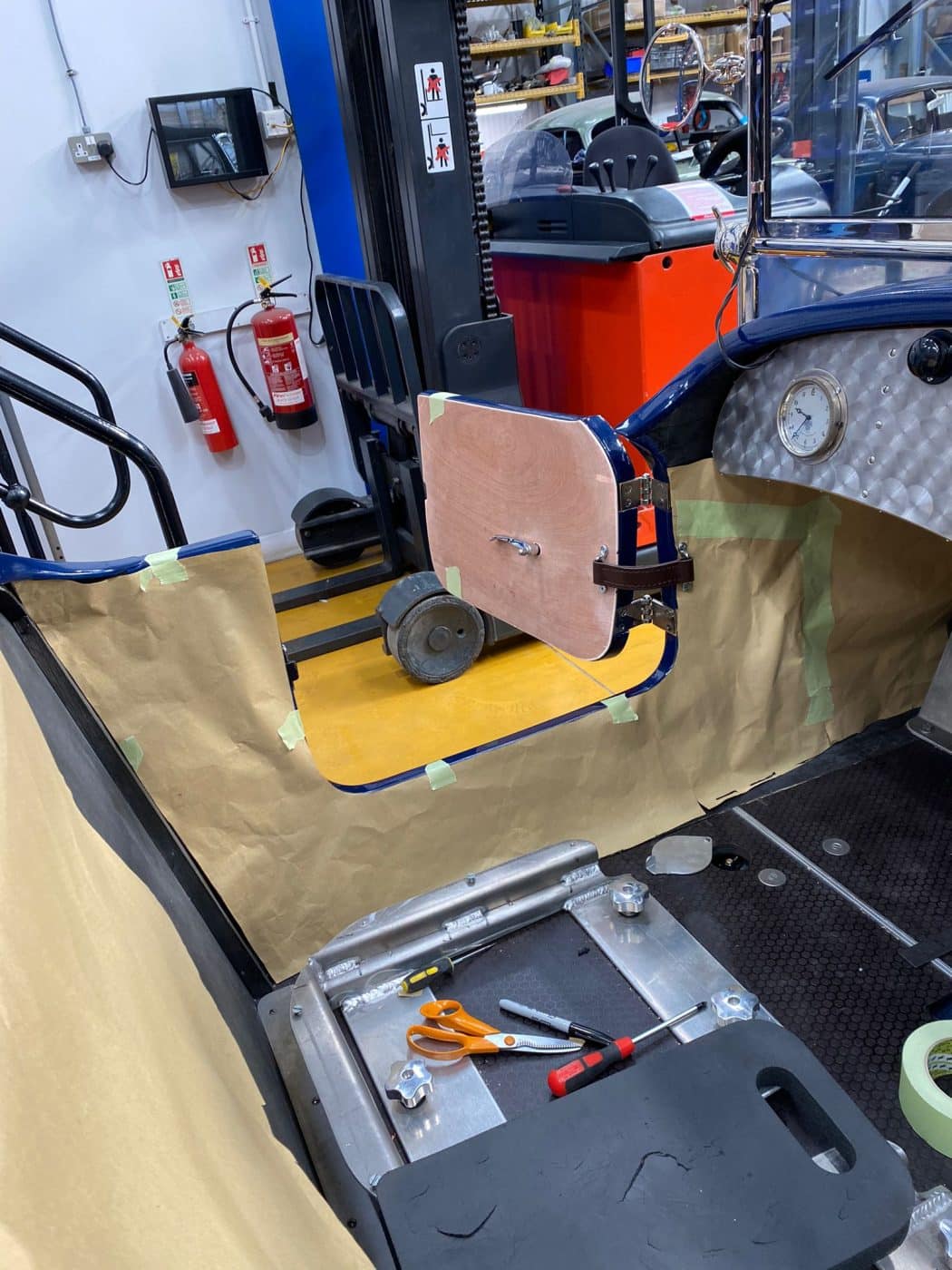

Brian fit the door panel to the car door and cut out the slot at the back for the lock. Paper patterns were made for the passenger side door panels.
