Repairs on the 1952 MG YA

Picture of By Nick Skinner
By Nick Skinner

Our technician Jonn has been getting the repairs done to our 1962 MG YA while its in with the Bridge Classic Cars team at our Suffolk HQ.

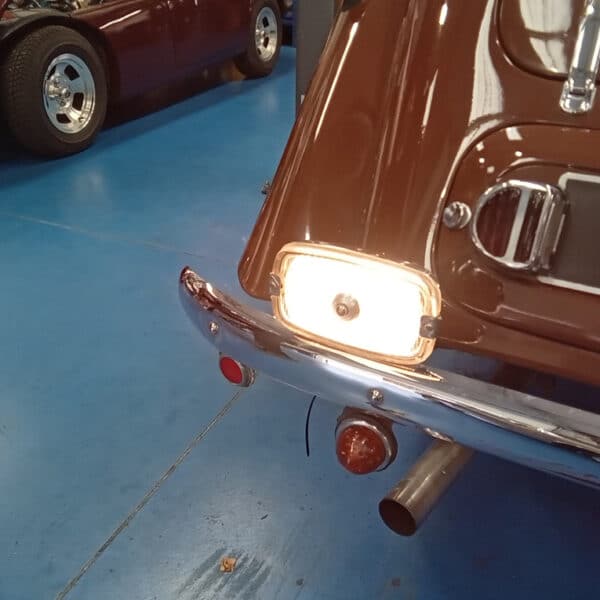

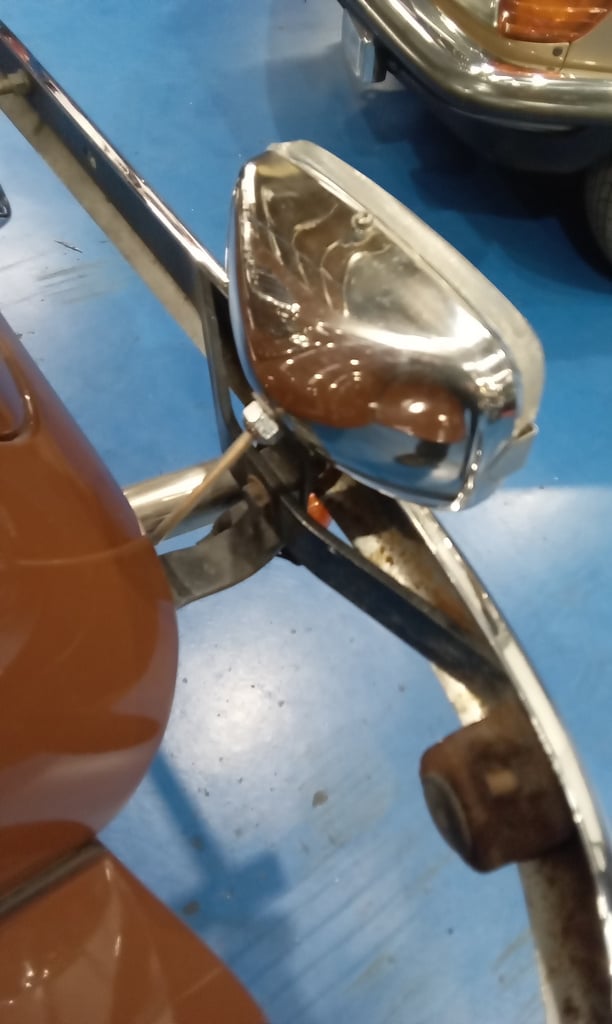

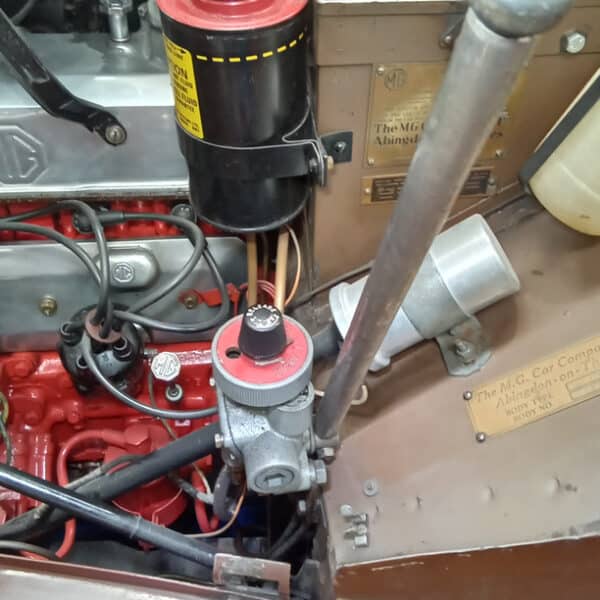

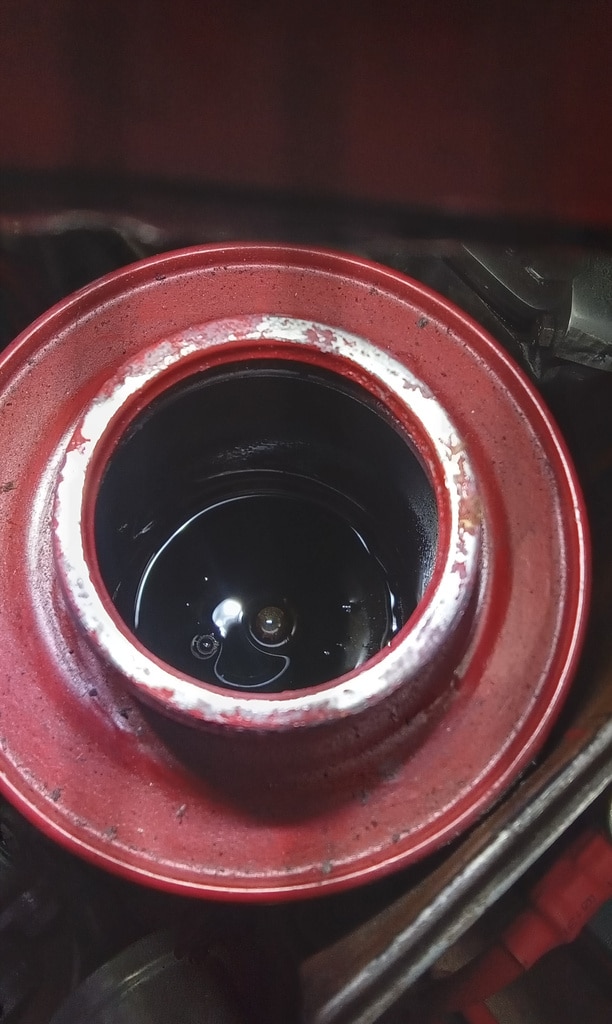

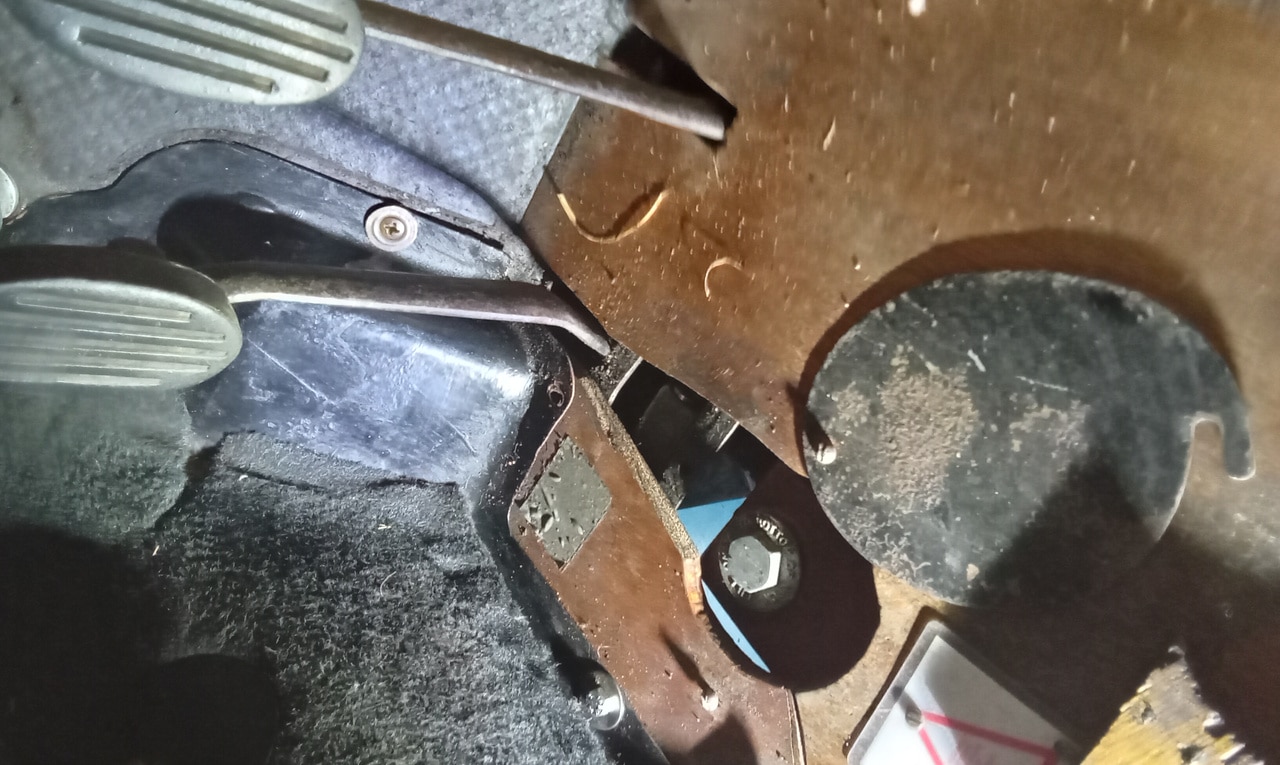

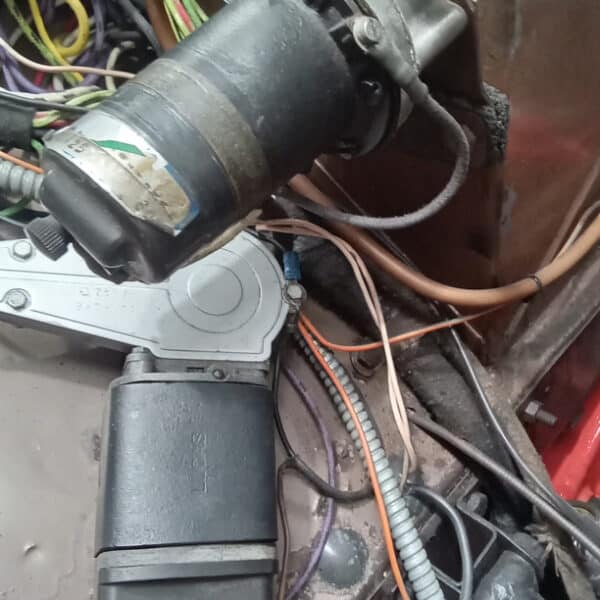

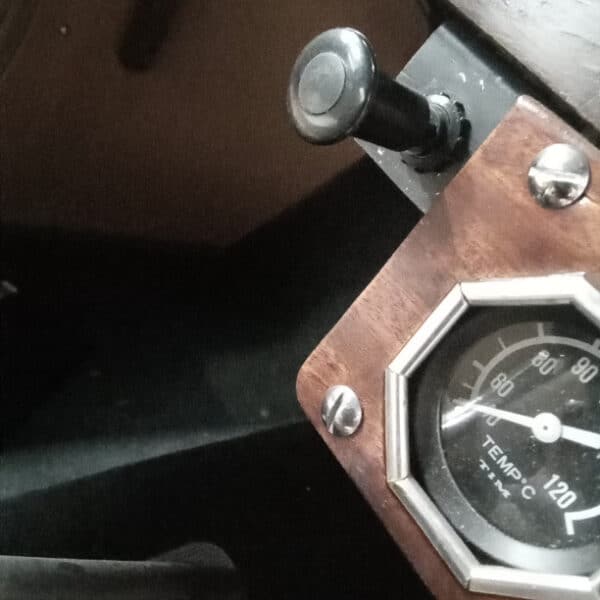

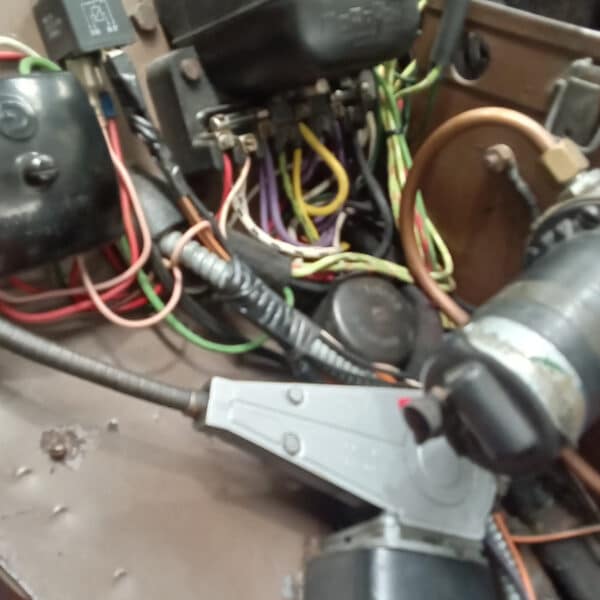

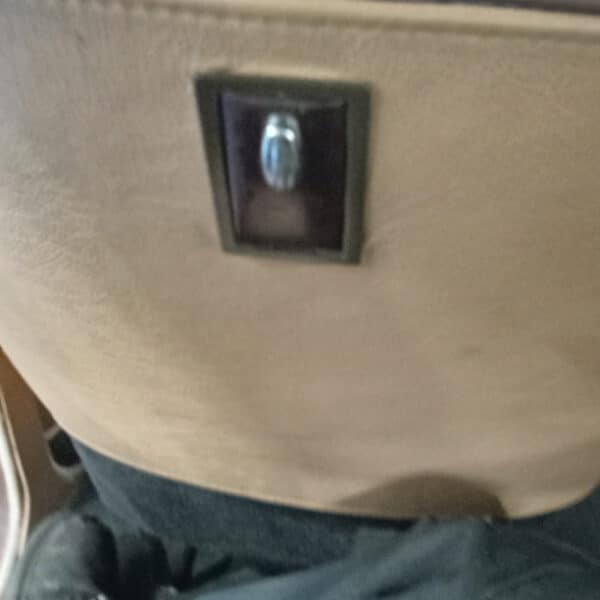

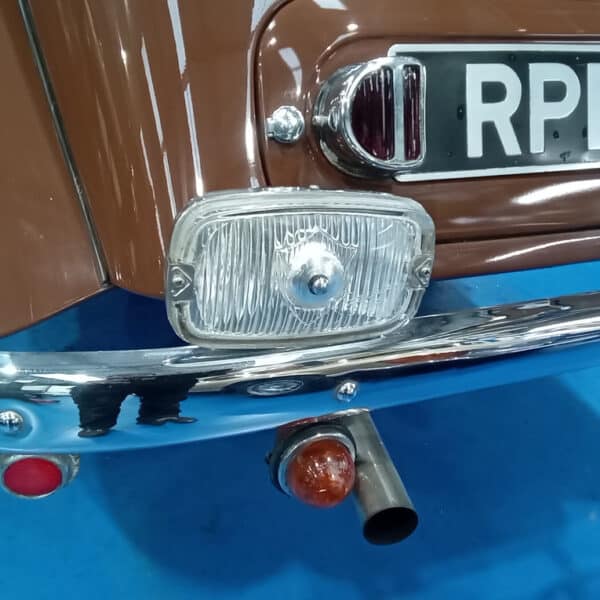

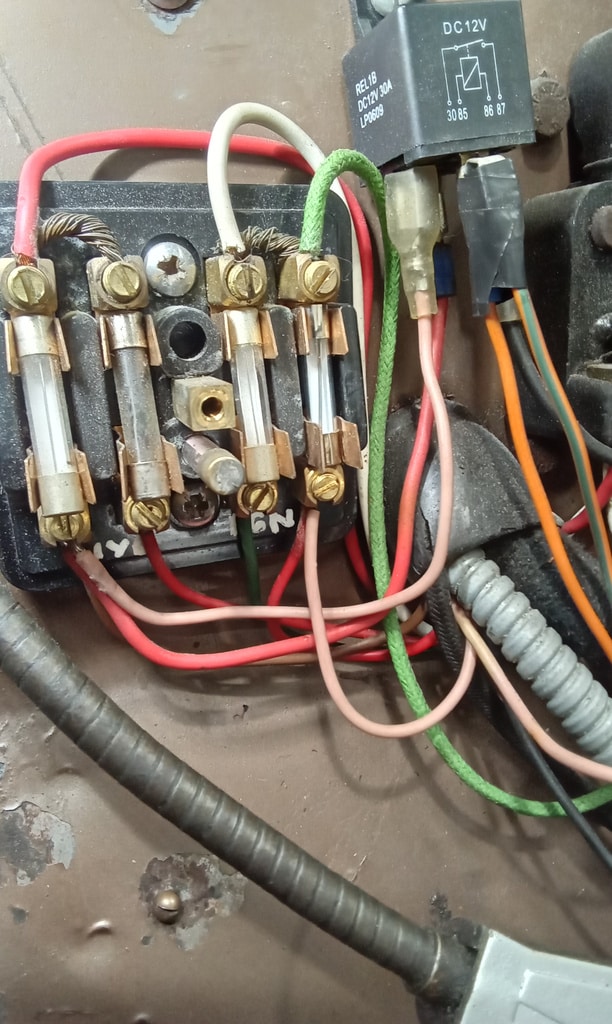

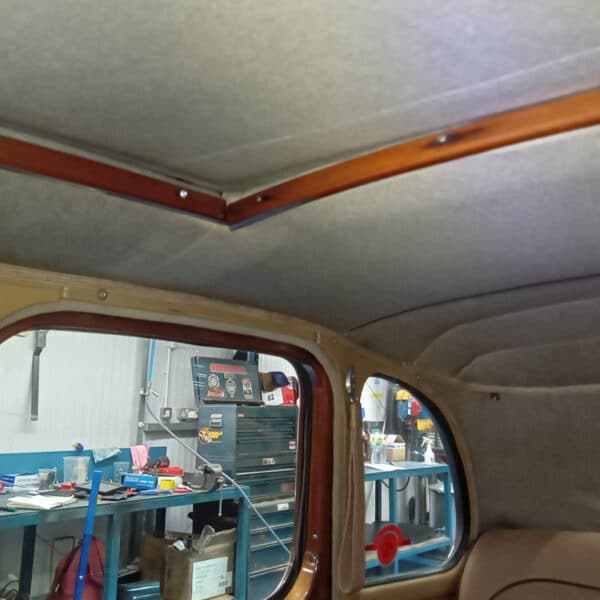

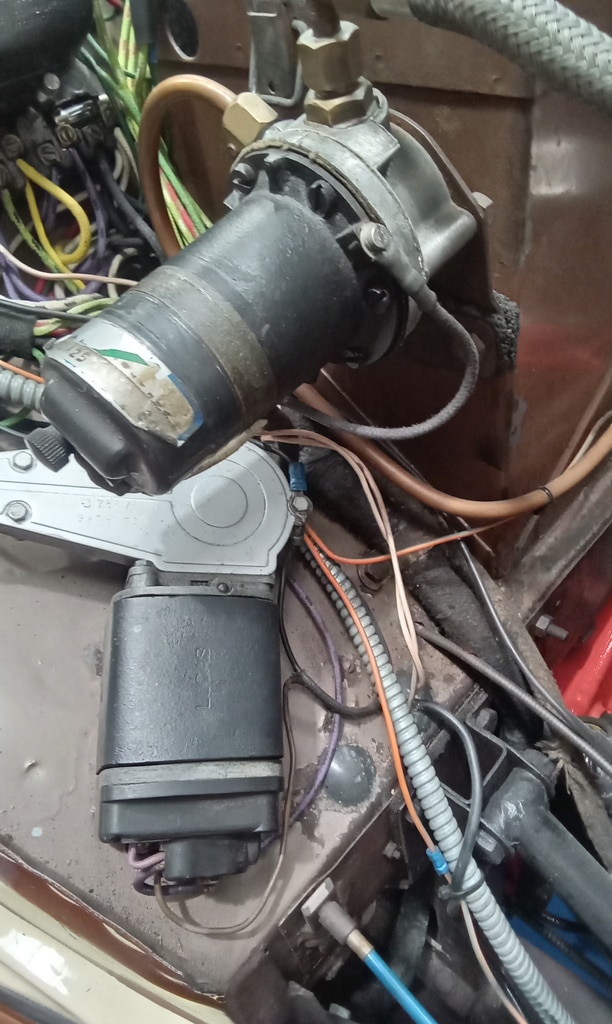

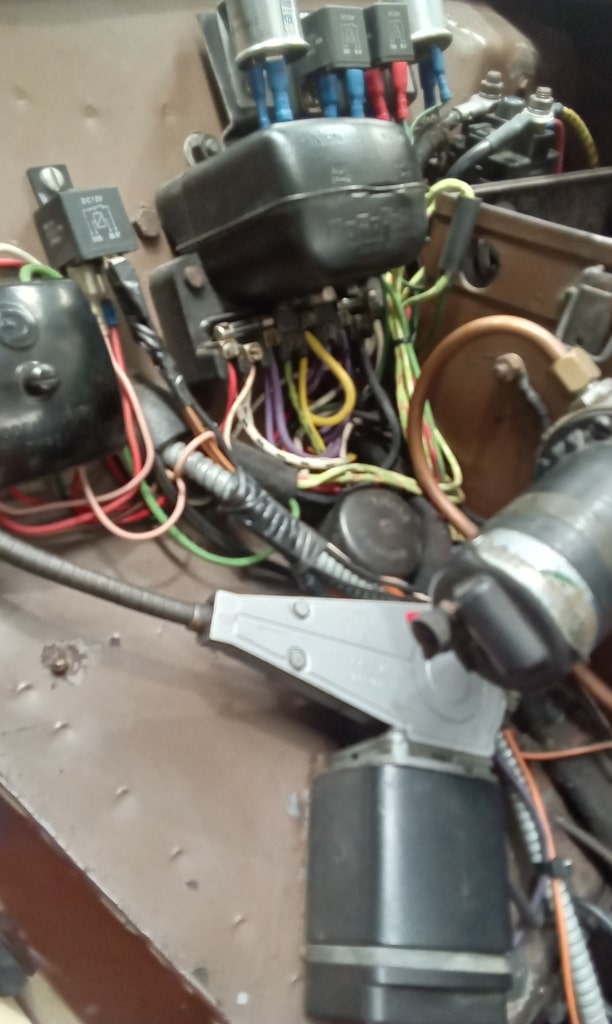

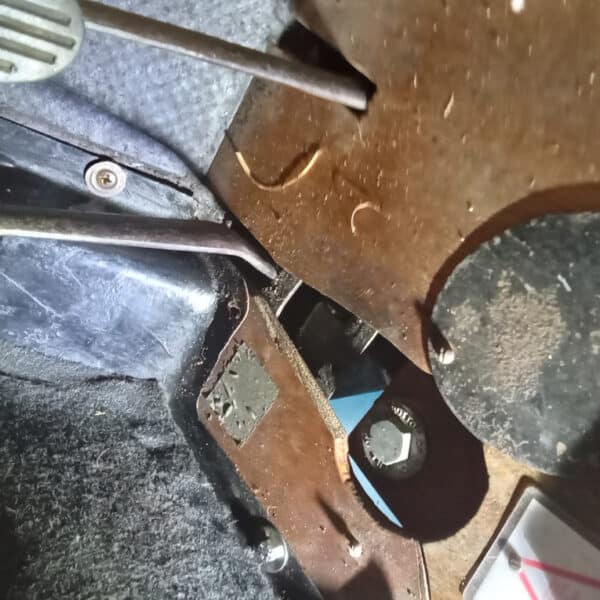

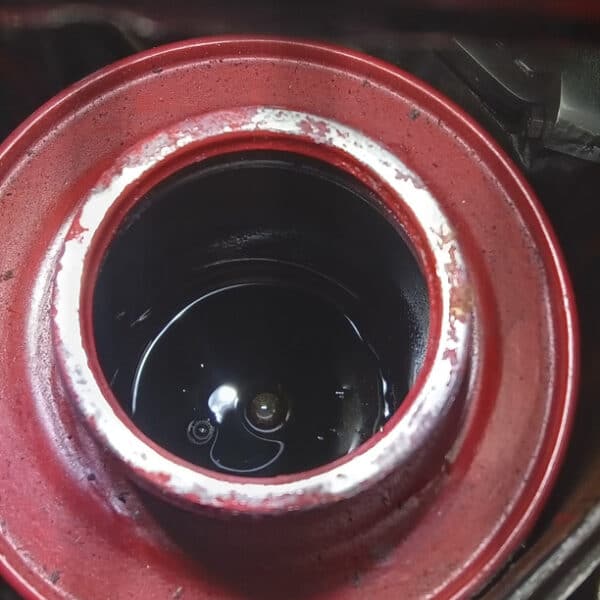

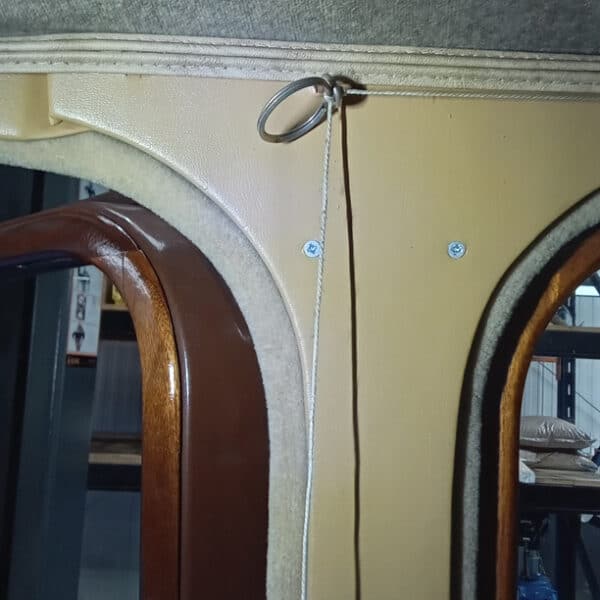

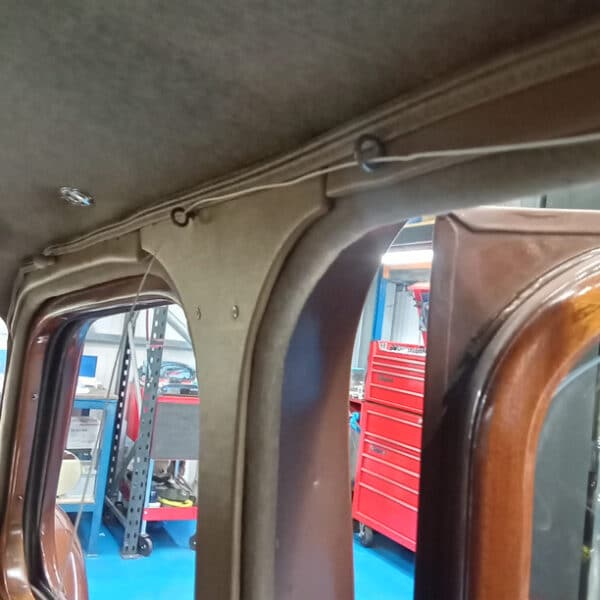

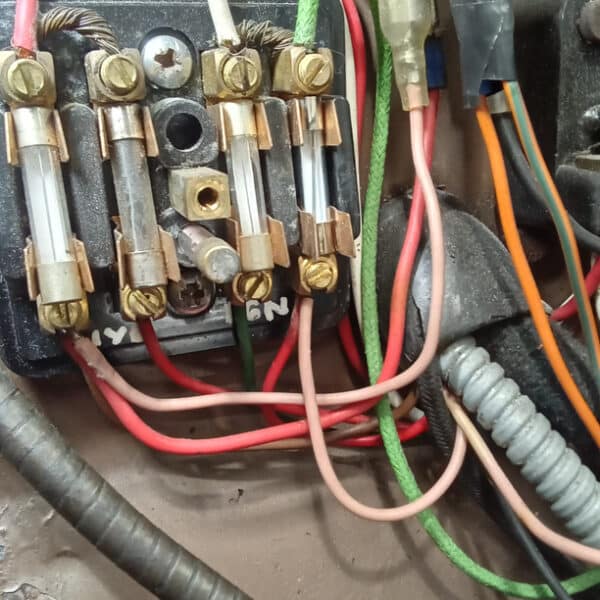

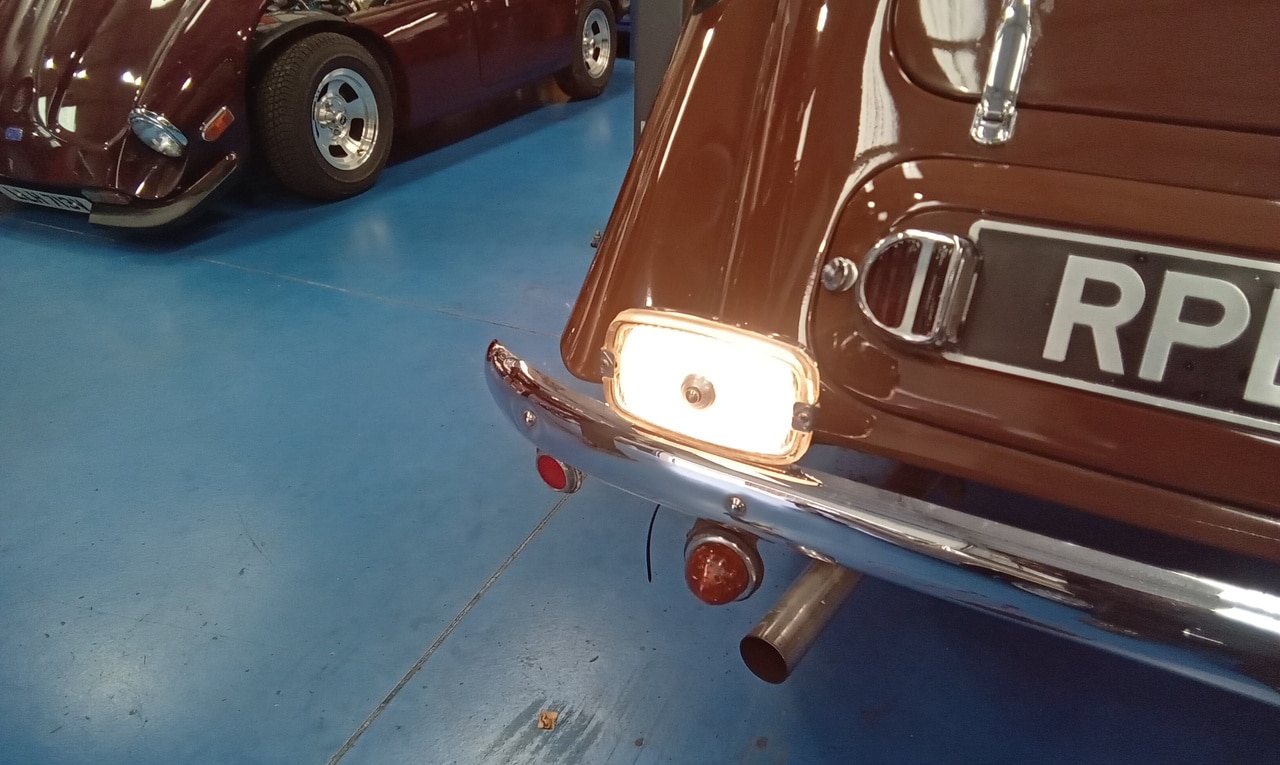

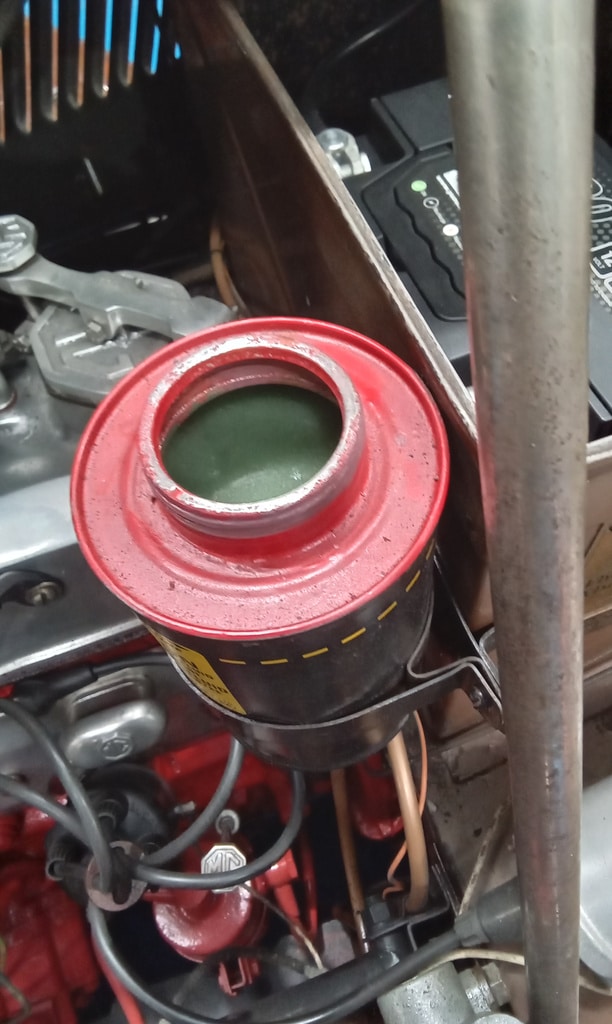

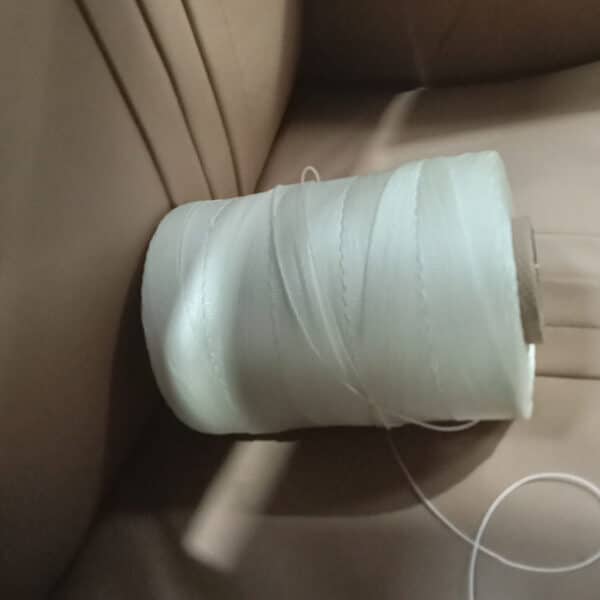

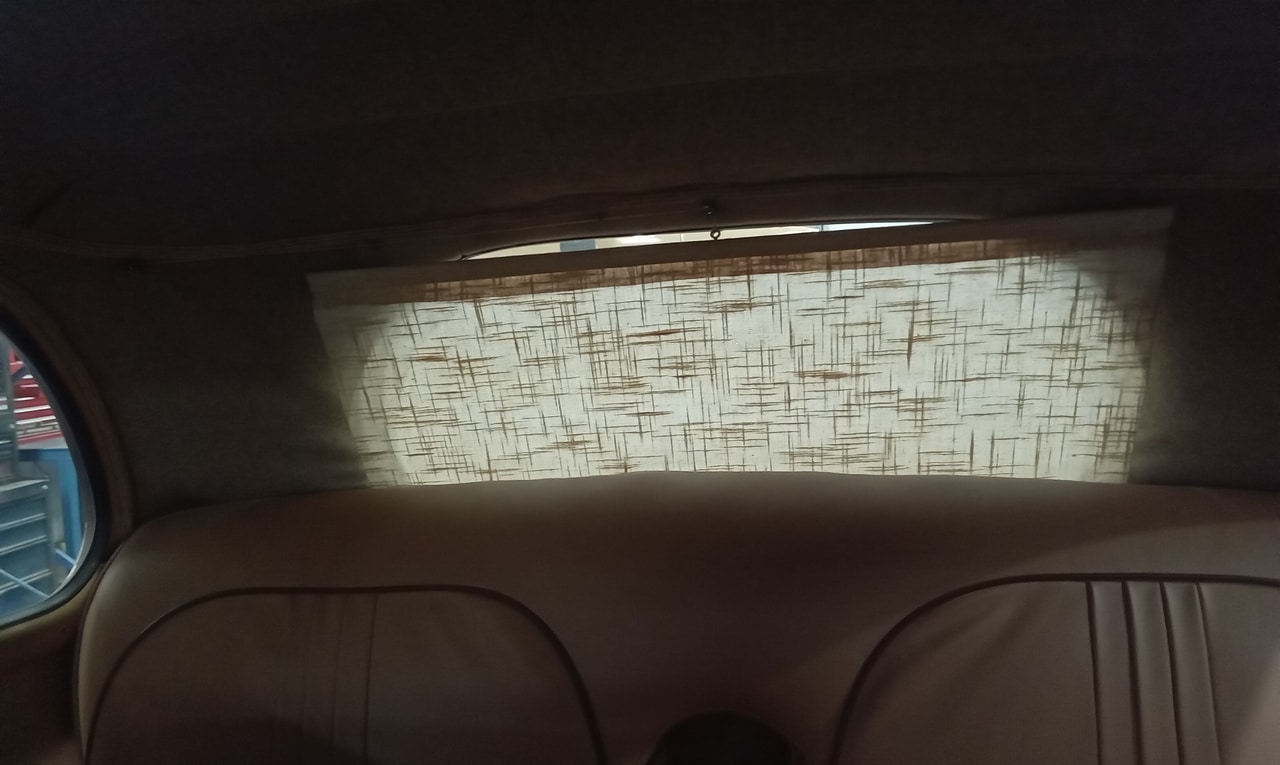

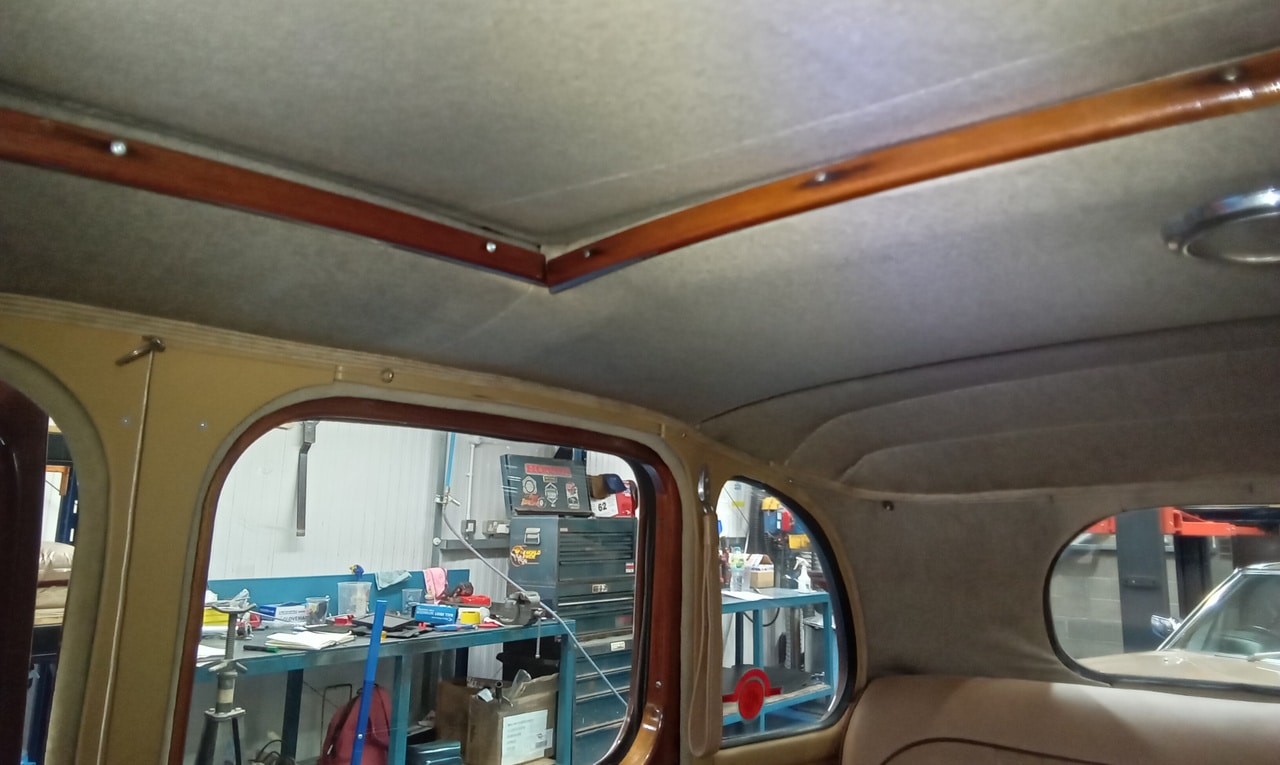

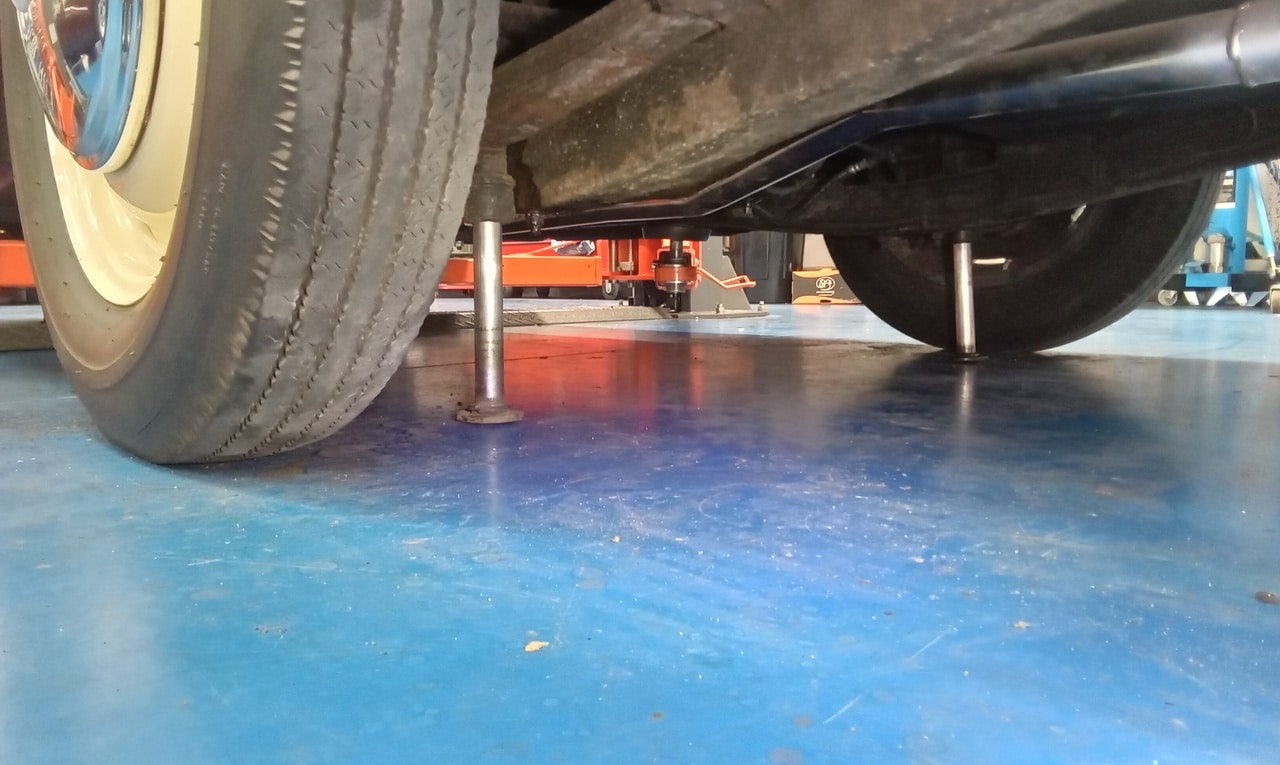

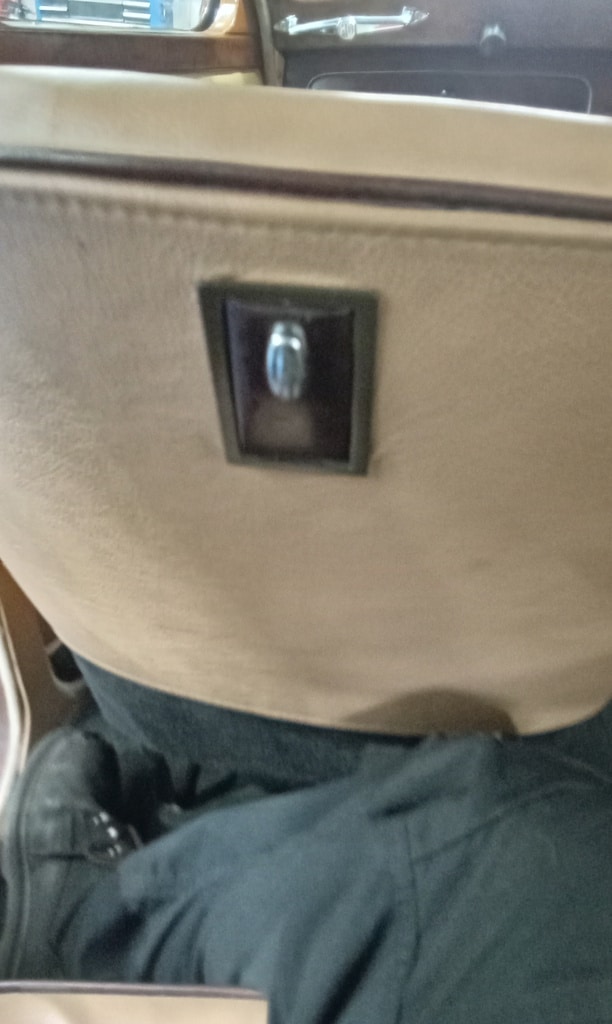

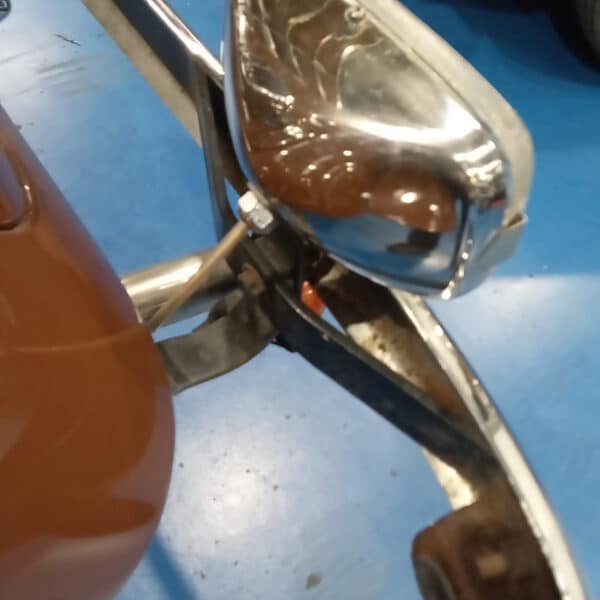

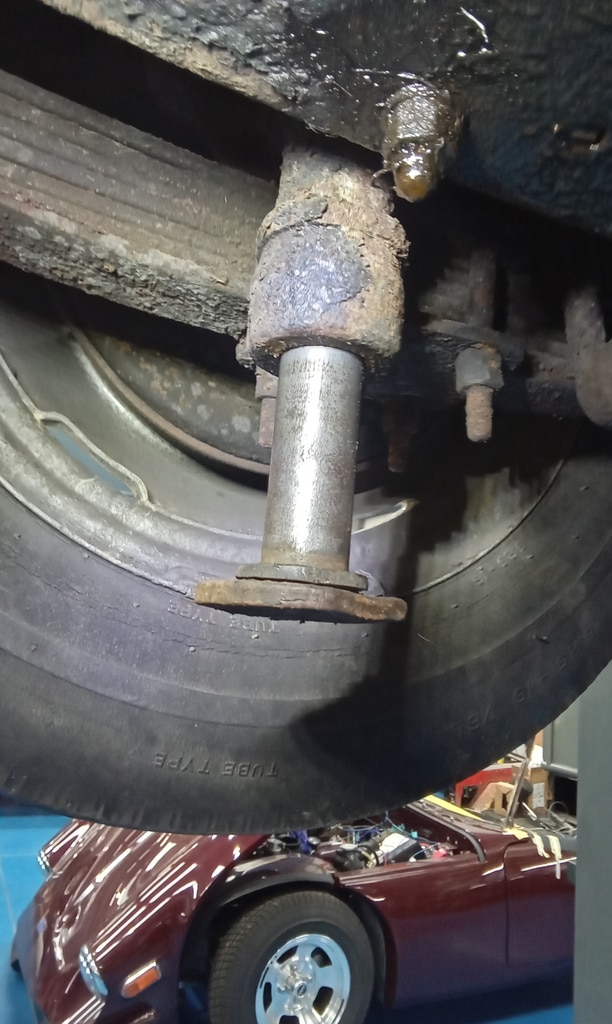

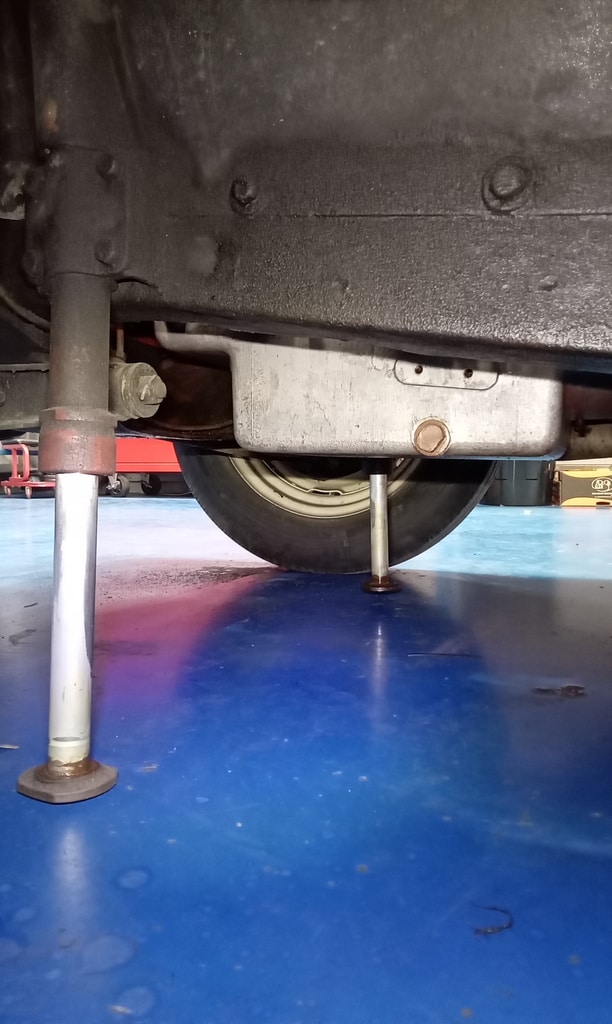

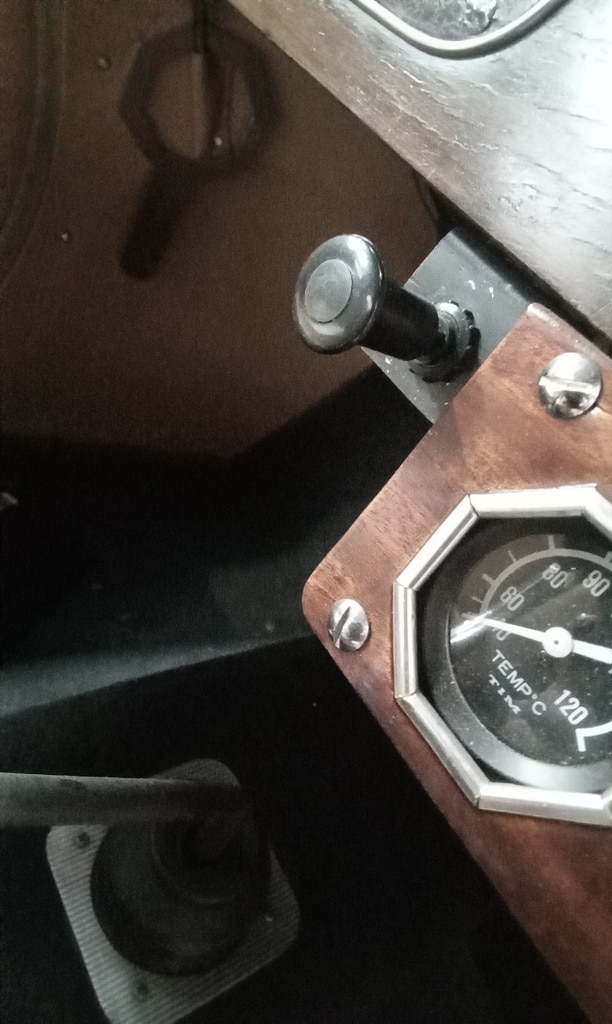

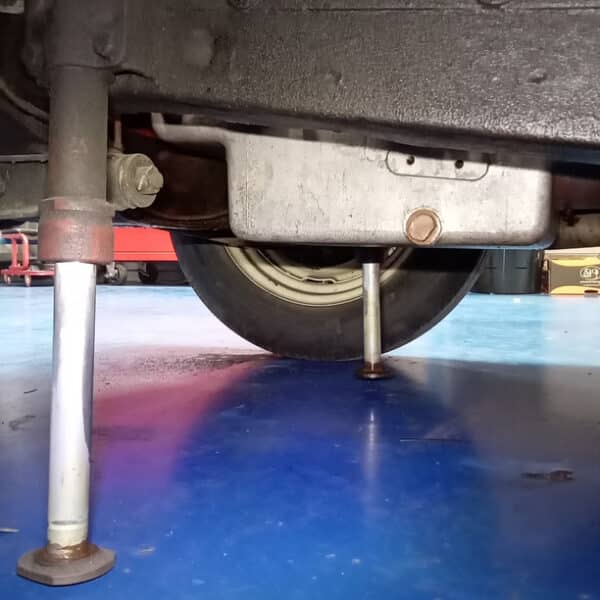

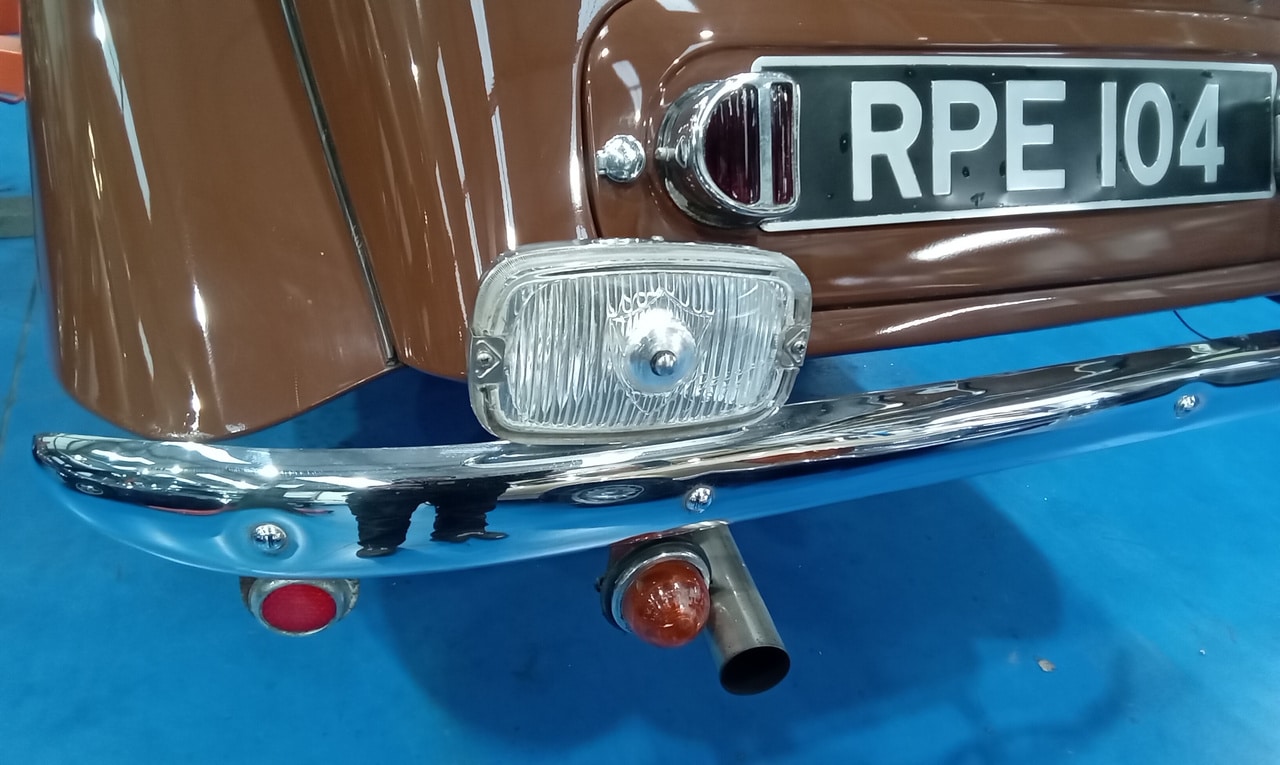

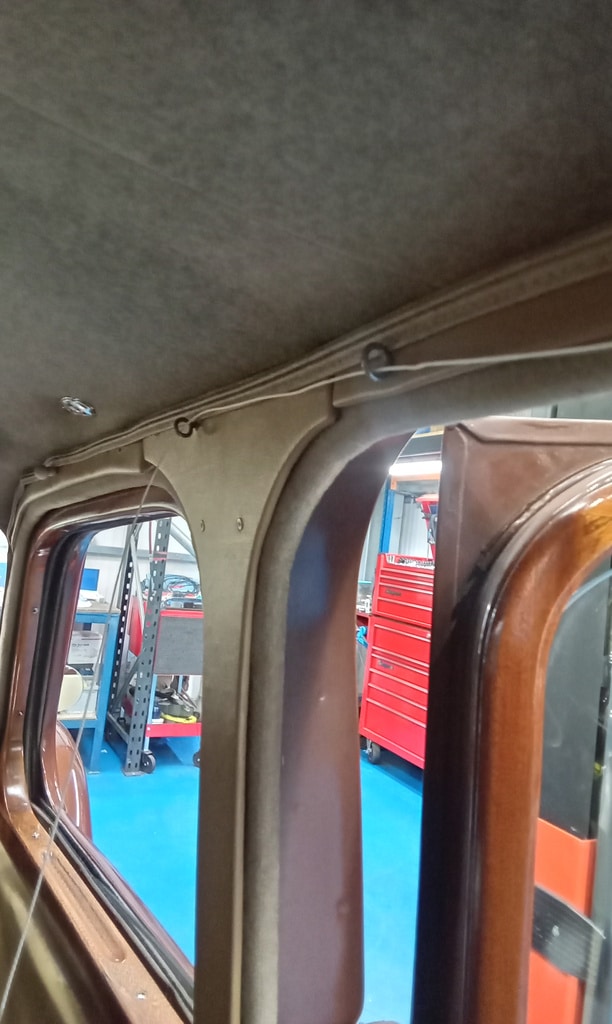

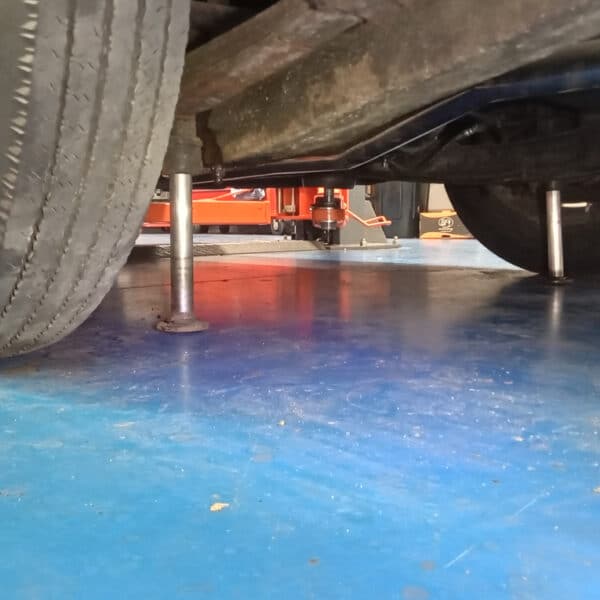

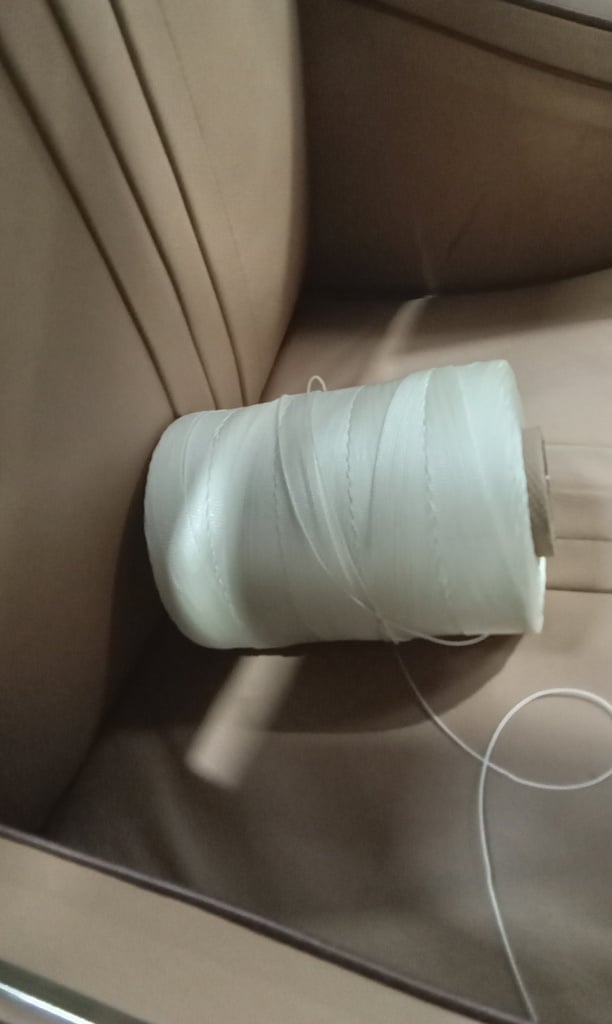

‘Trace wiring to reverse lights. Found switch on dash thats wired into indicators. Check amd replace fuse. Check power to reverse switch and to light. No earth at light. Clean and tighten fixing and now Working. Secure wiring and refit components. Tighten connection to horn and test. Tidy wiring under bonnet. Check clutch pedal side to side play ut it’s in the shaft so leave as is. Refit carpet. Remove broken string from rear blind and replace. Free off nearside jack unit and test. Working now. Top up fluid. Offside rear unit weeping. Secure rear ashtrays in seats.’

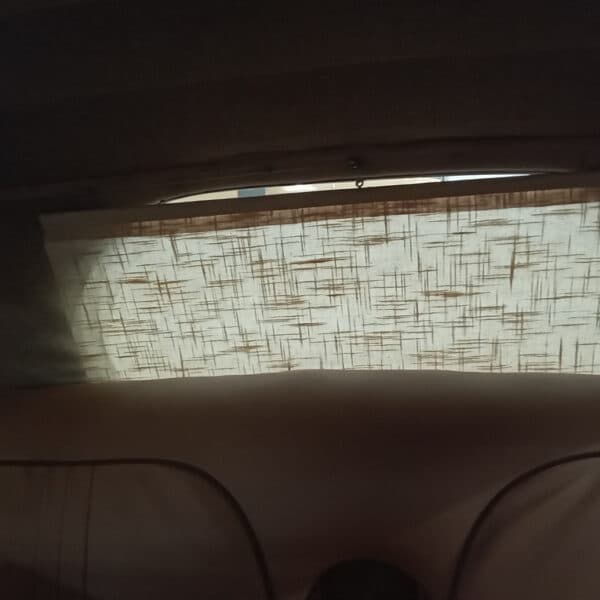

140526 1952 MG YA Repairs 8
140526 1952 MG YA Repairs 9

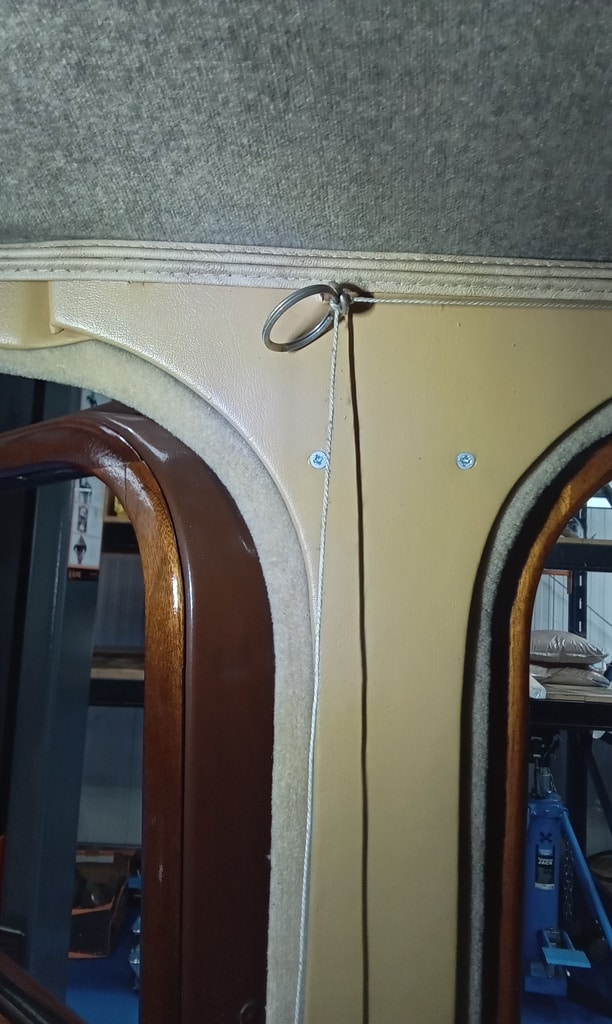

140526 1952 MG YA Repairs 10
140526 1952 MG YA Repairs 11
140526 1952 MG YA Repairs 12
140526 1952 MG YA Repairs 13
140526 1952 MG YA Repairs 14
140526 1952 MG YA Repairs 15
140526 1952 MG YA Repairs 16
140526 1952 MG YA Repairs 17
140526 1952 MG YA Repairs 18
140526 1952 MG YA Repairs 19
140526 1952 MG YA Repairs 20
140526 1952 MG YA Repairs
140526 1952 MG YA Repairs 2
140526 1952 MG YA Repairs 3
140526 1952 MG YA Repairs 4
140526 1952 MG YA Repairs 5
140526 1952 MG YA Repairs 6

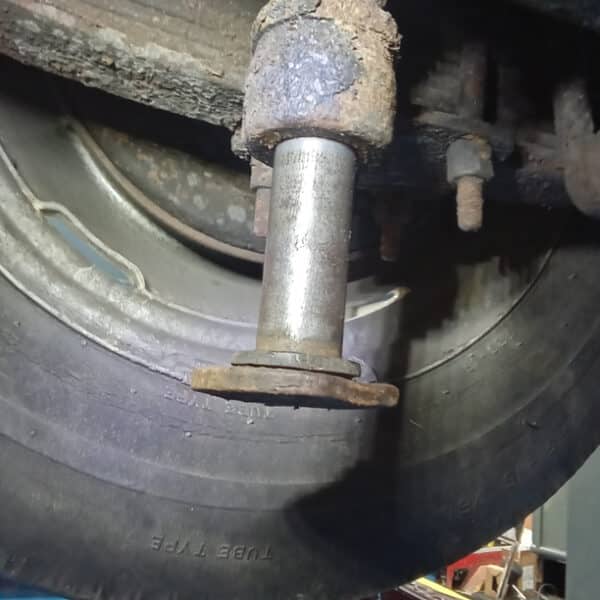

140526 1952 MG YA Repairs 7

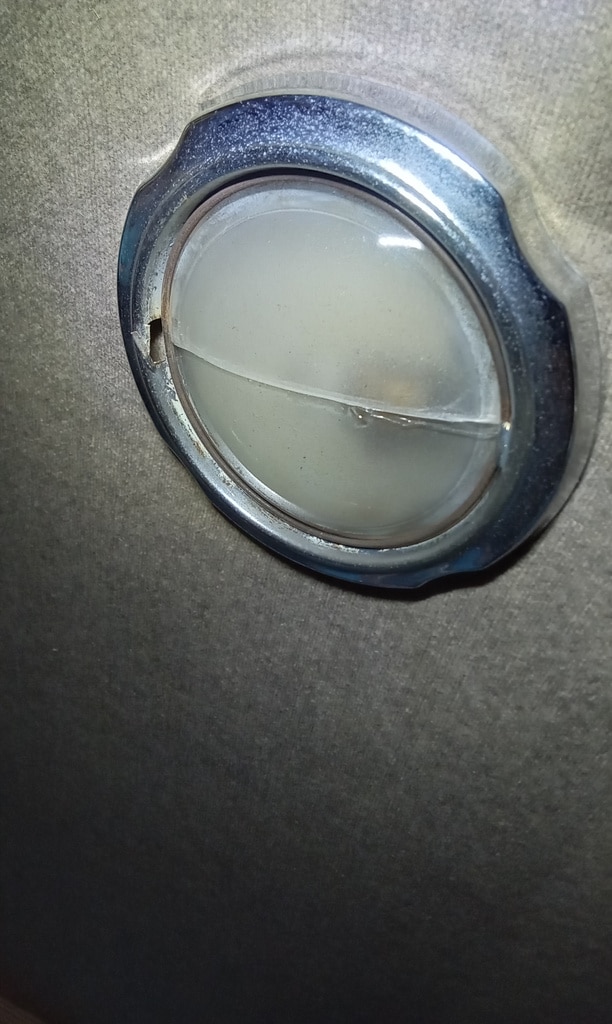

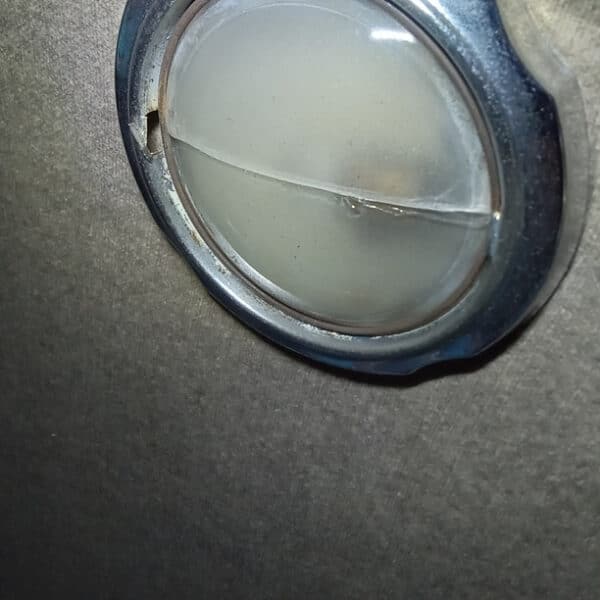

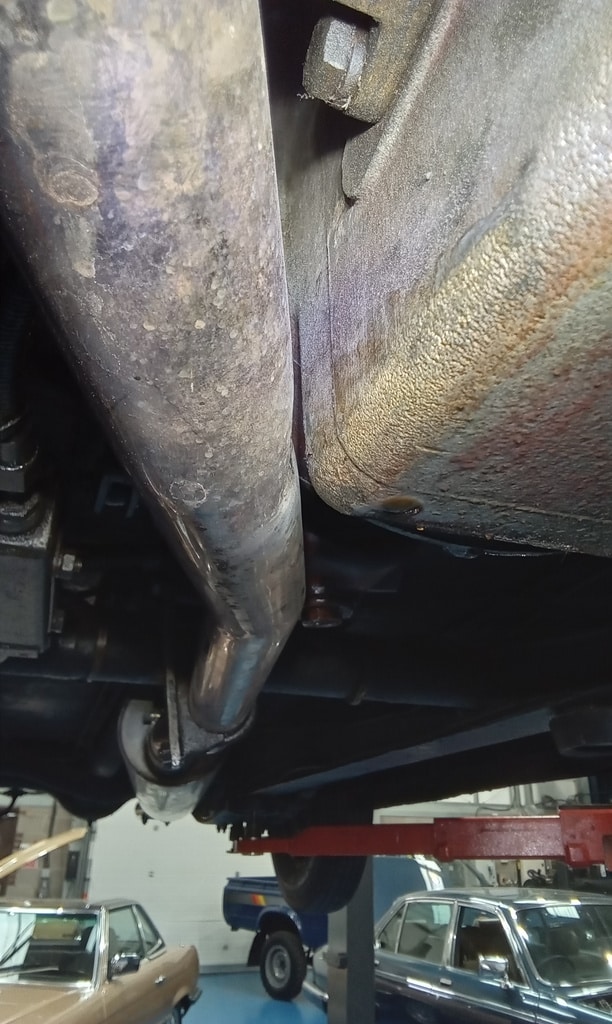

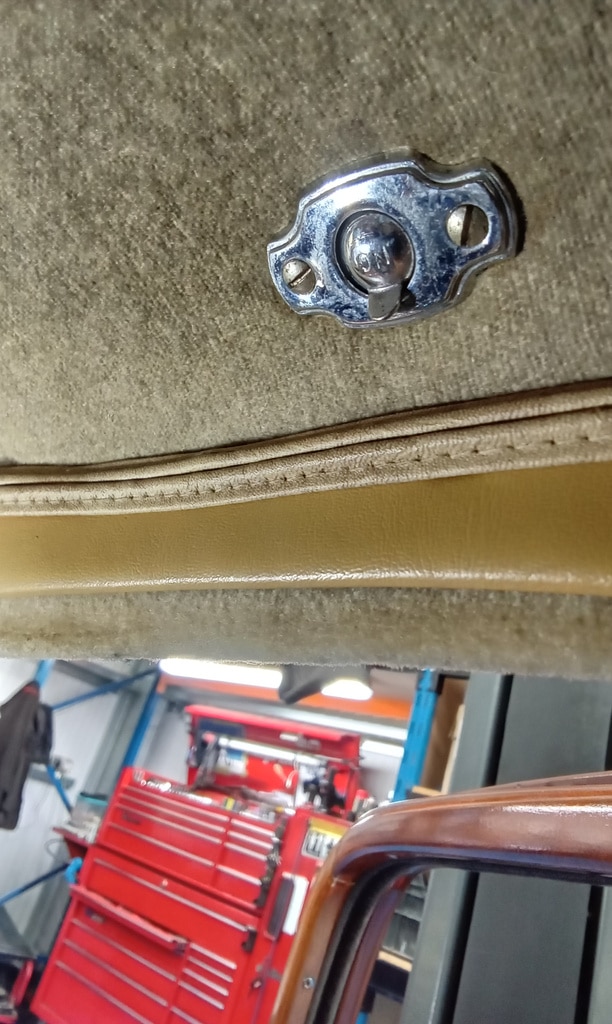

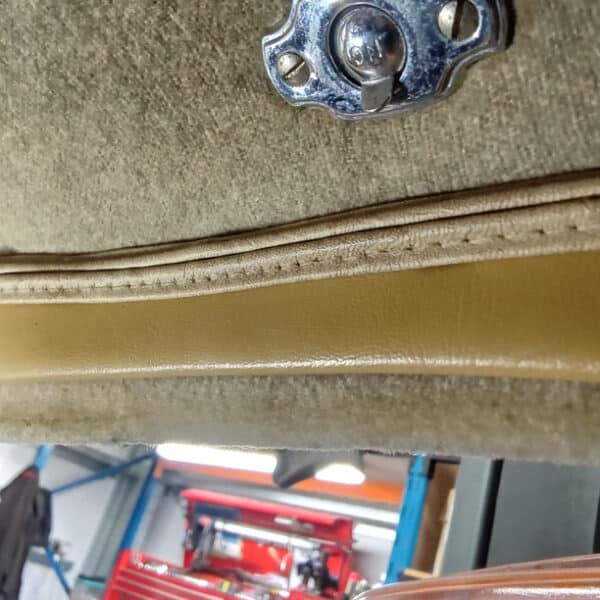

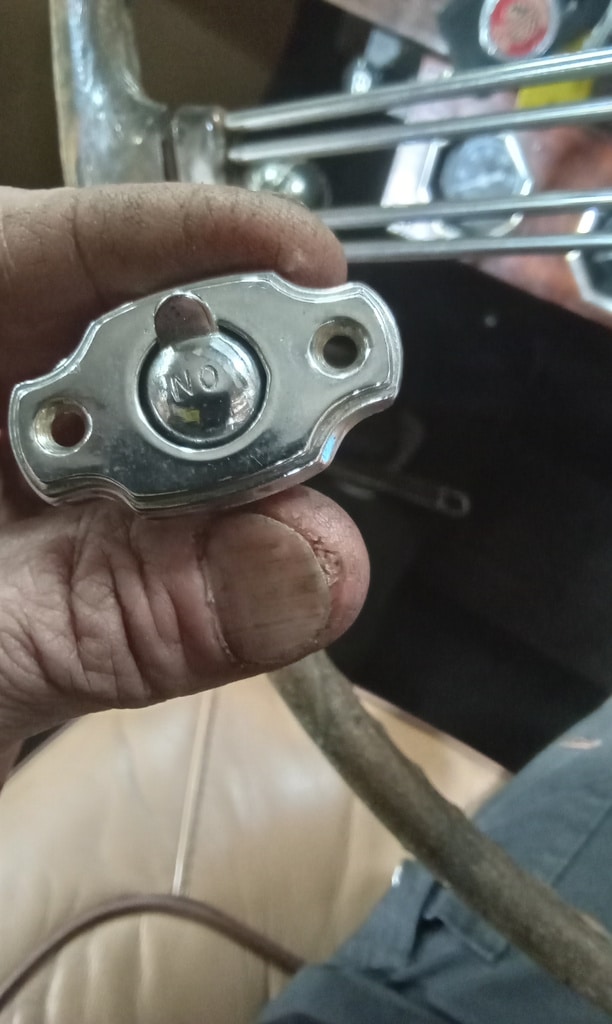

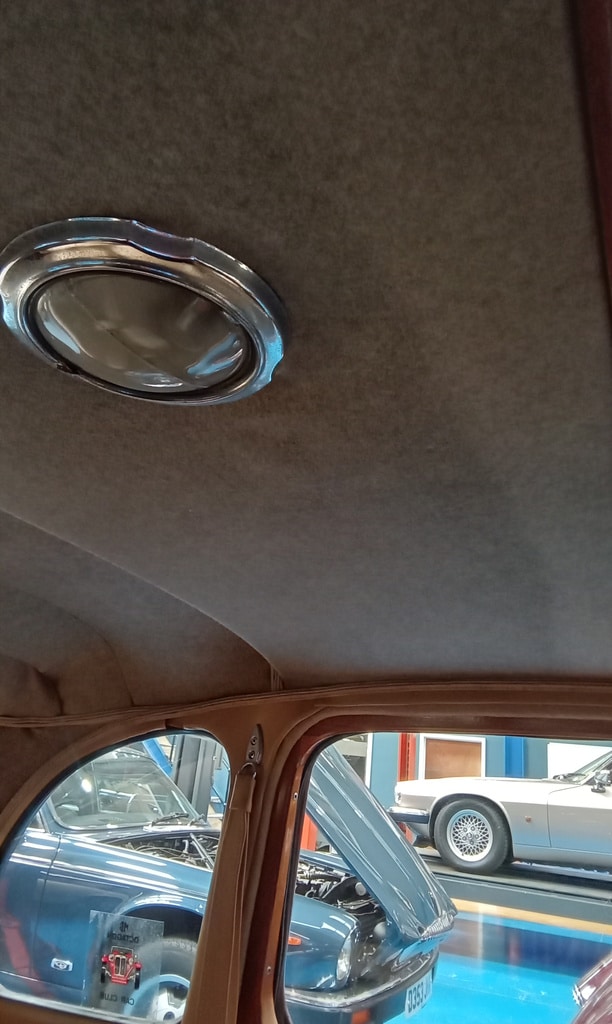

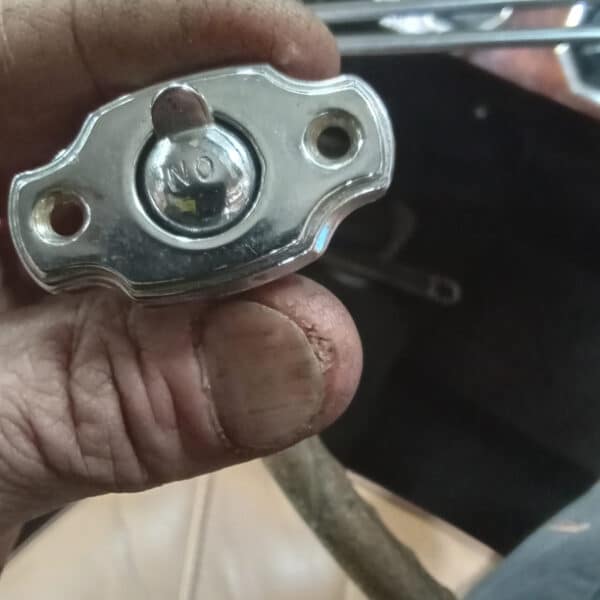

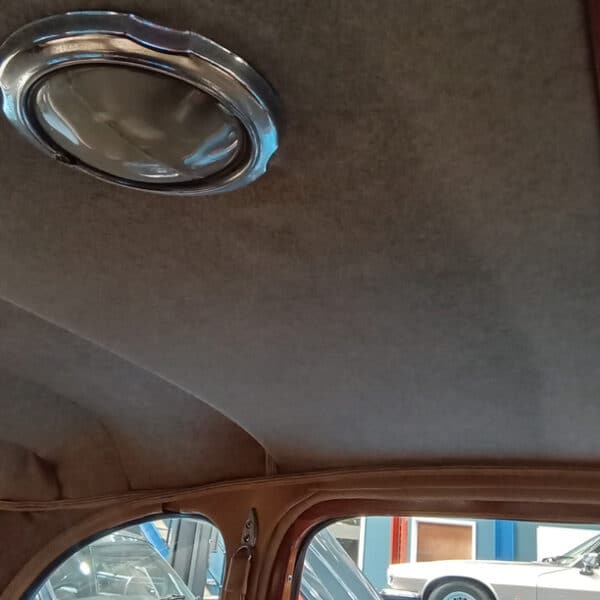

‘Investigate interior lightnt working. Look at wiring diagram, then trace wiring on car. Check continuity to switch. Check power at switch OK. No power at light. Remove switch and test. Switch faulty. Raise and heat up e haust and knock in so doent touch engine. Free off nearside trafficator and test.’

140526 1952 MG YA Interior Light Not Working 4
140526 1952 MG YA Interior Light Not Working
140526 1952 MG YA Interior Light Not Working 2
140526 1952 MG YA Interior Light Not Working 3

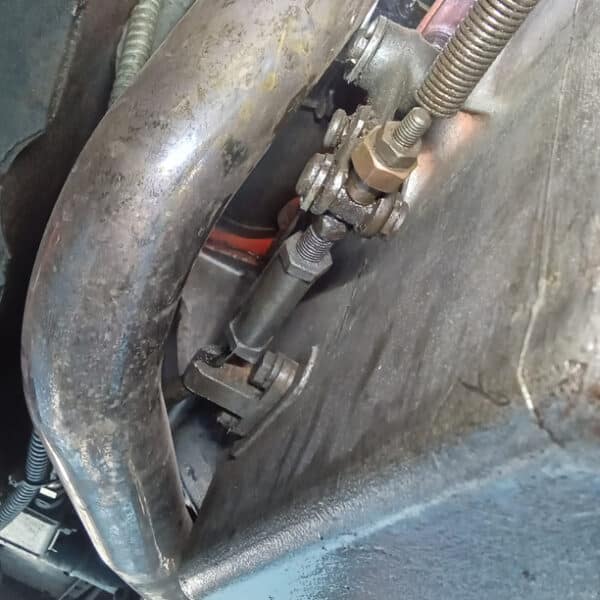

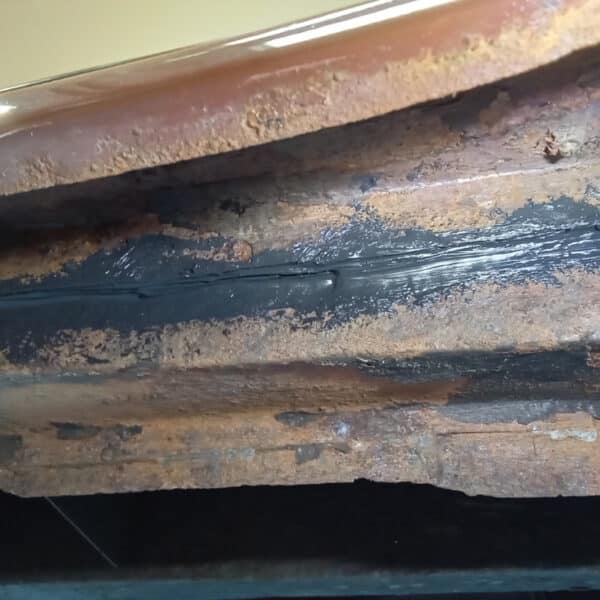

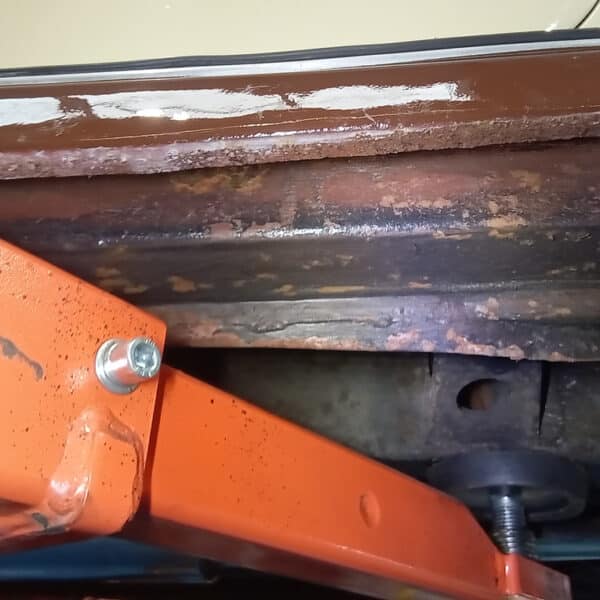

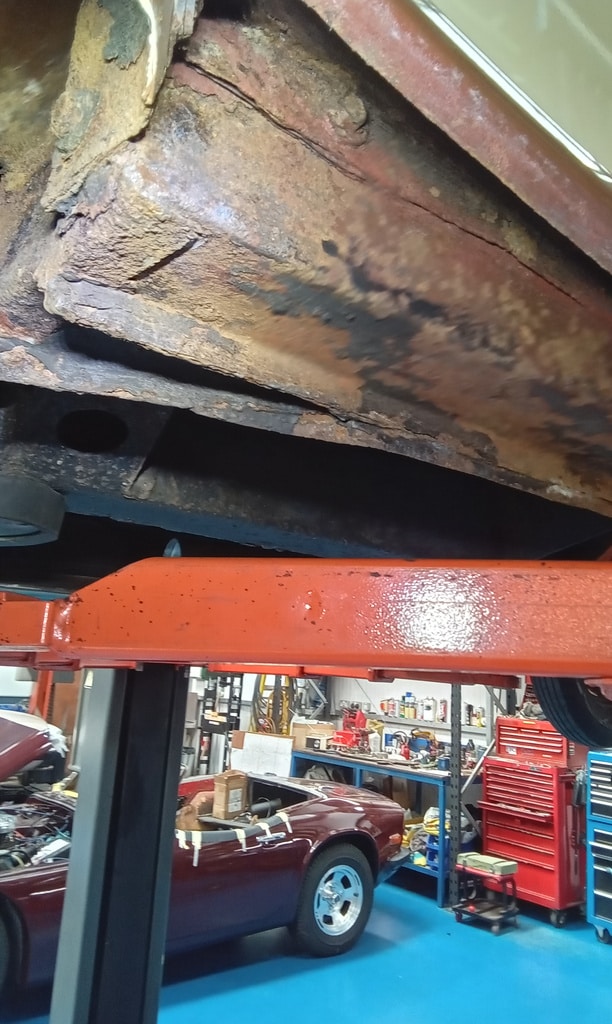

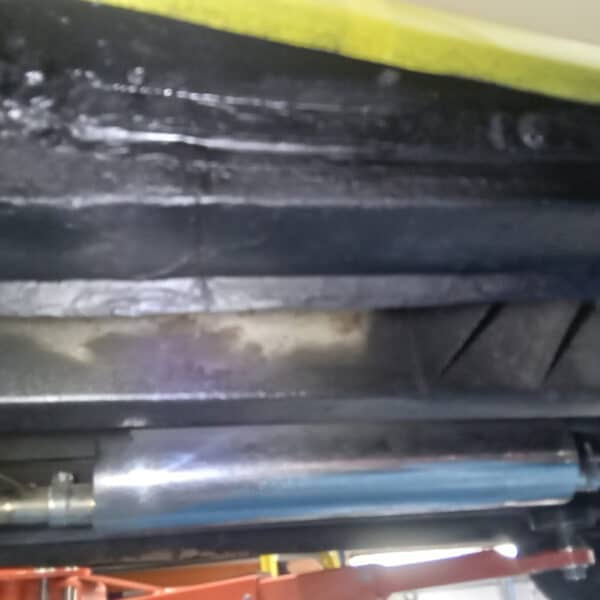

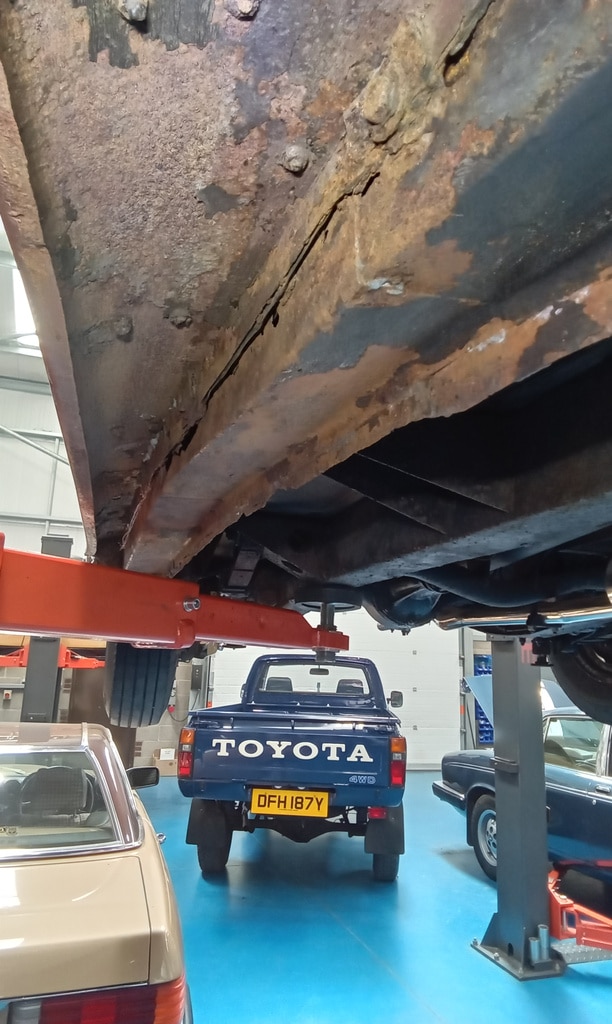

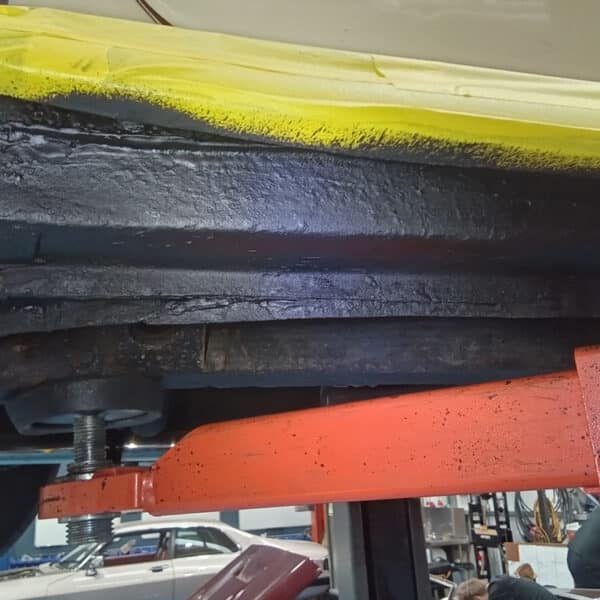

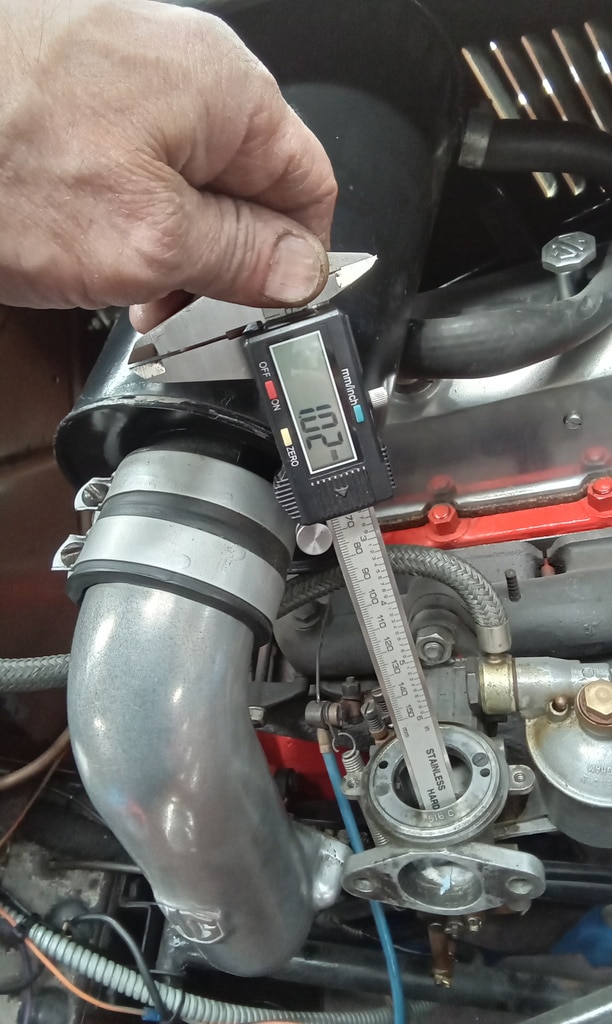

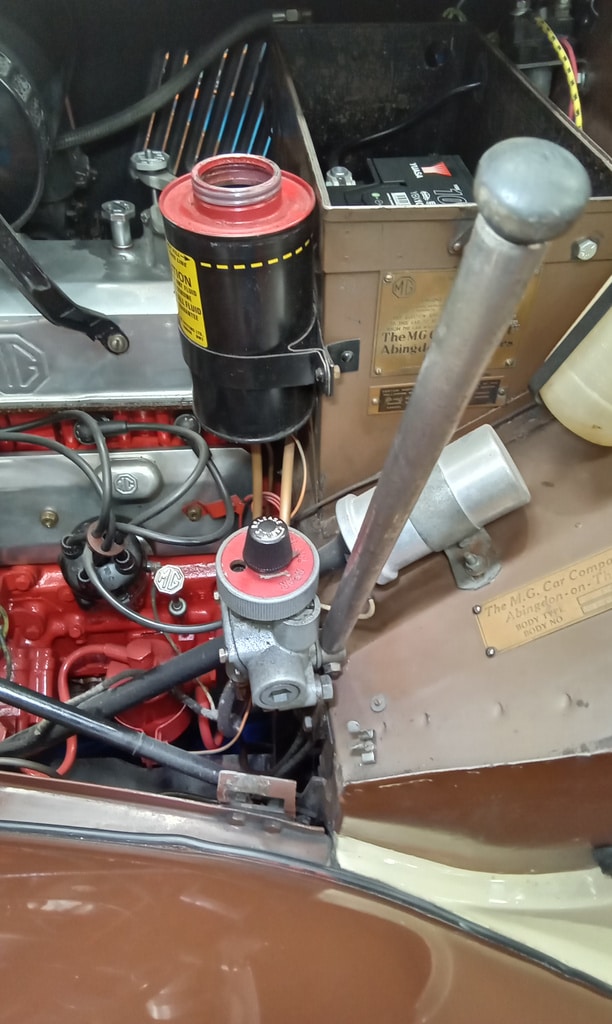

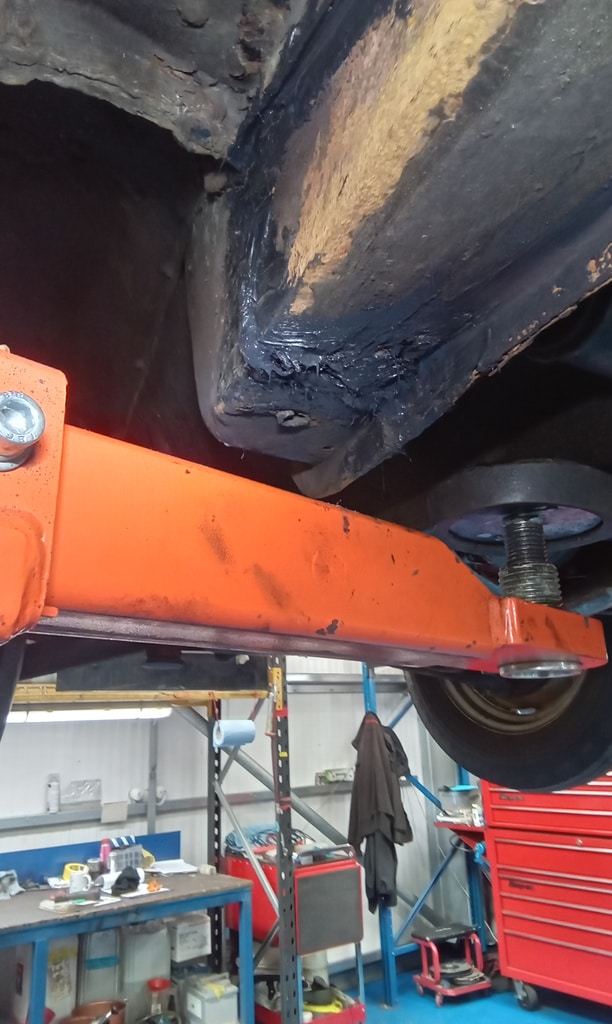

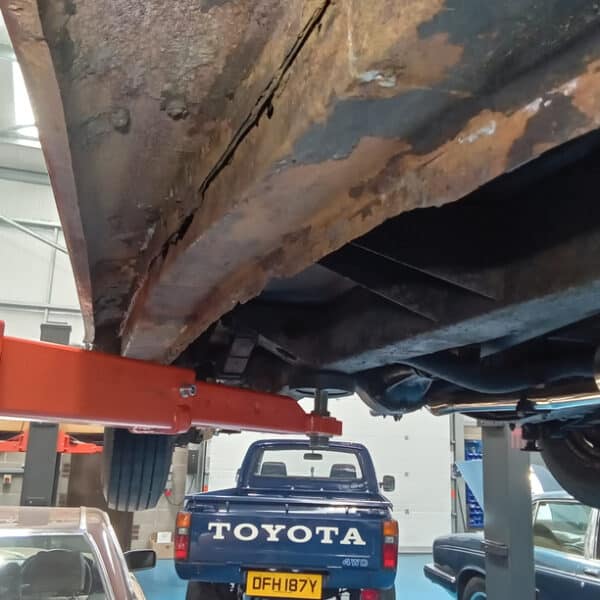

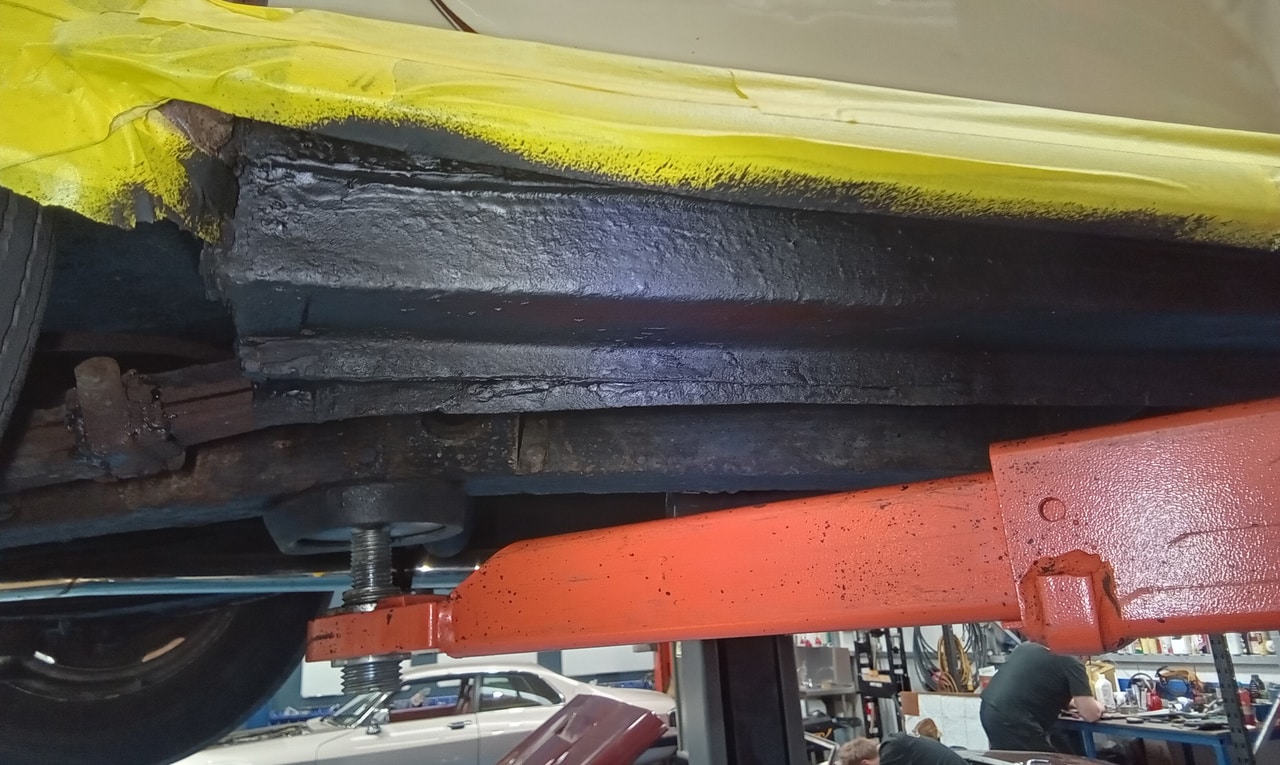

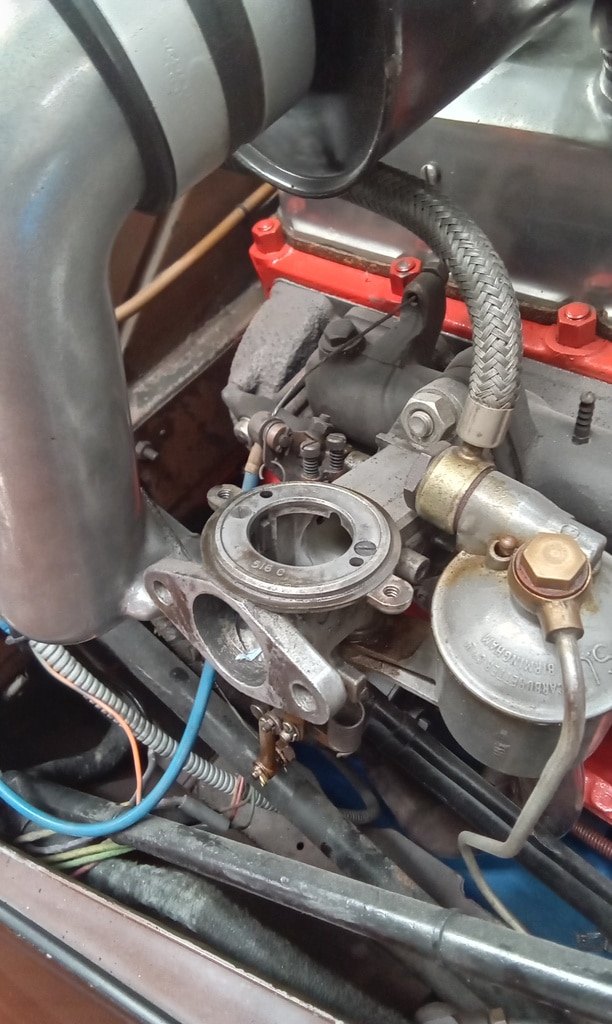

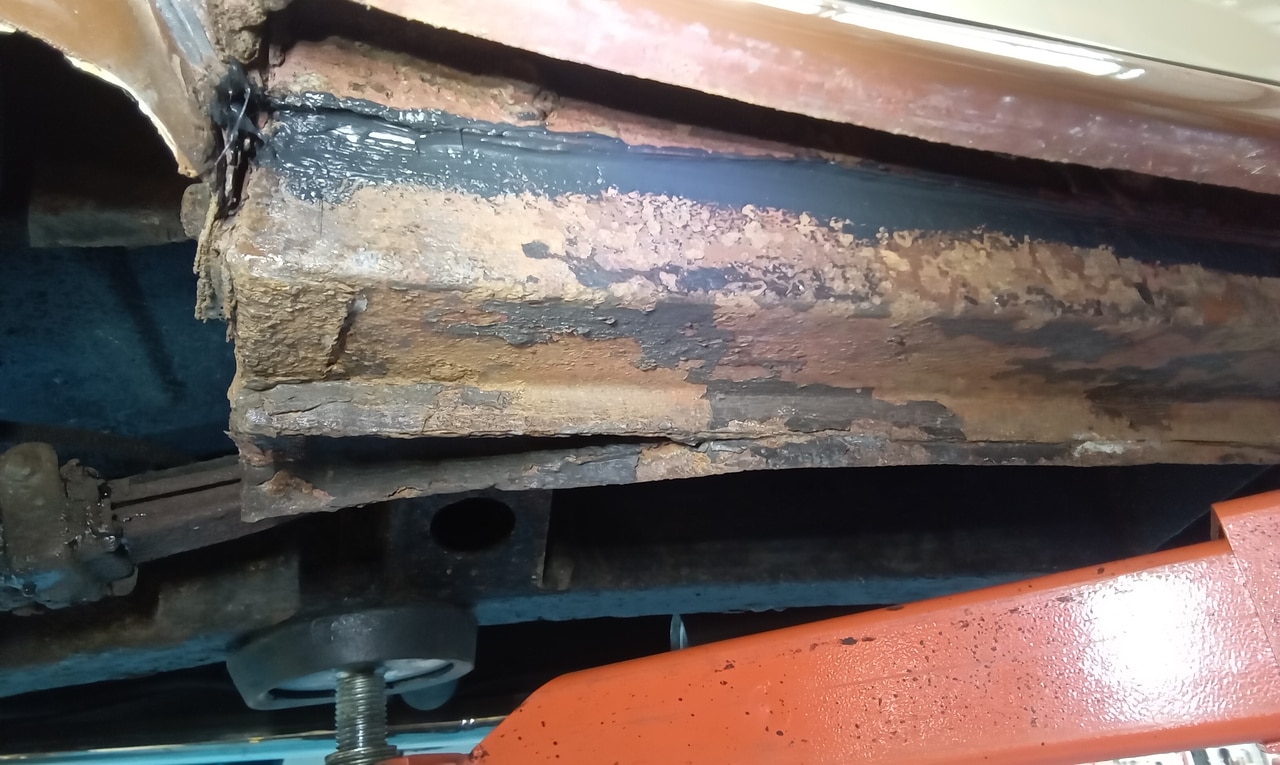

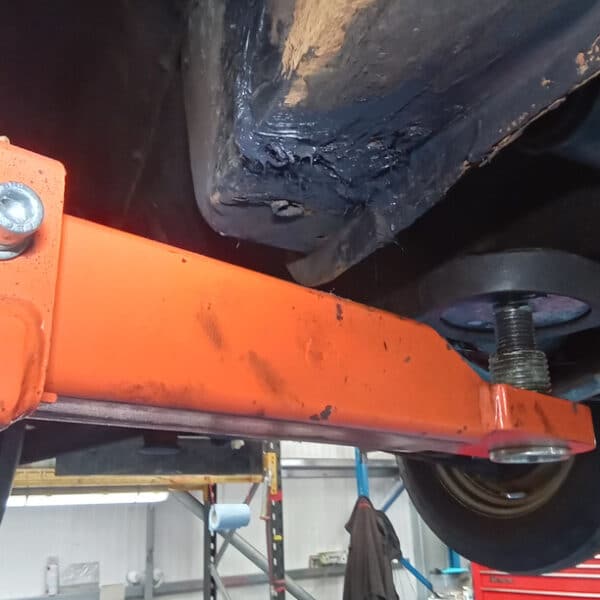

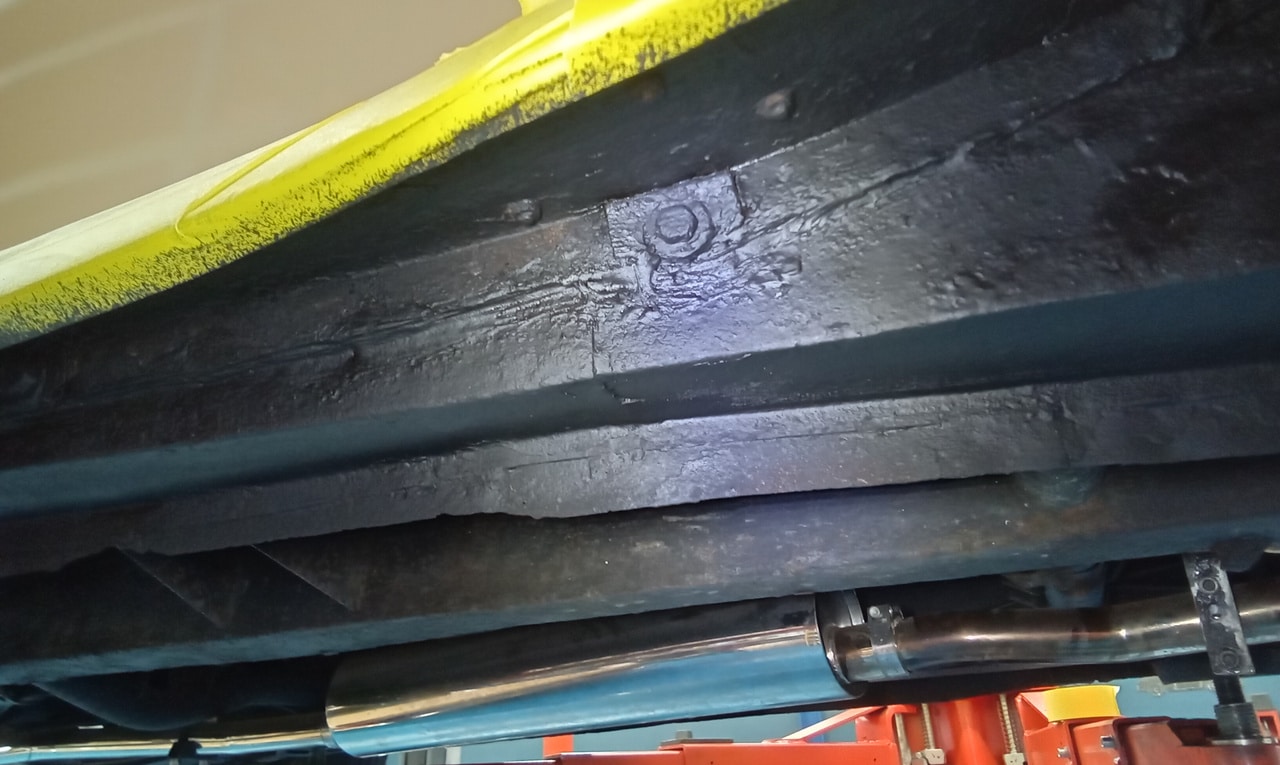

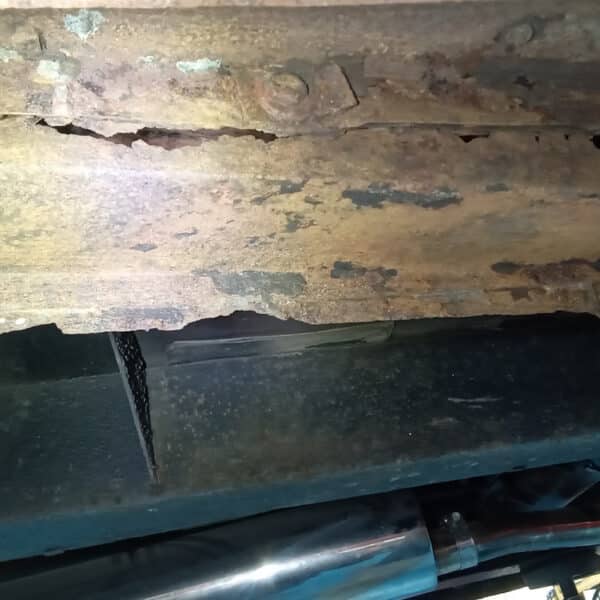

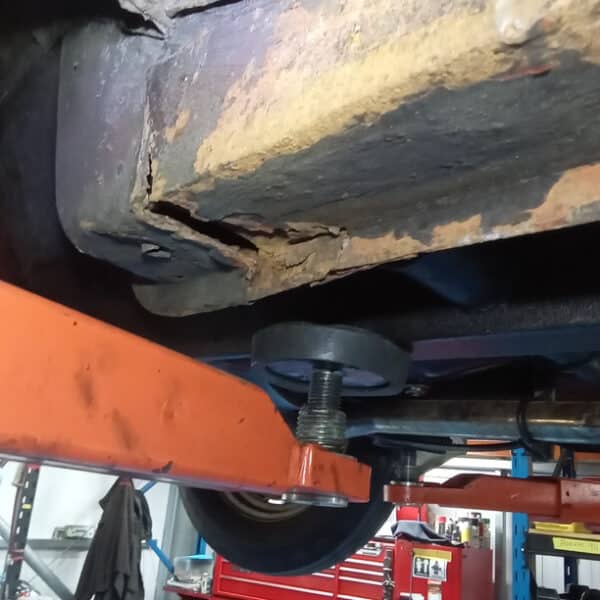

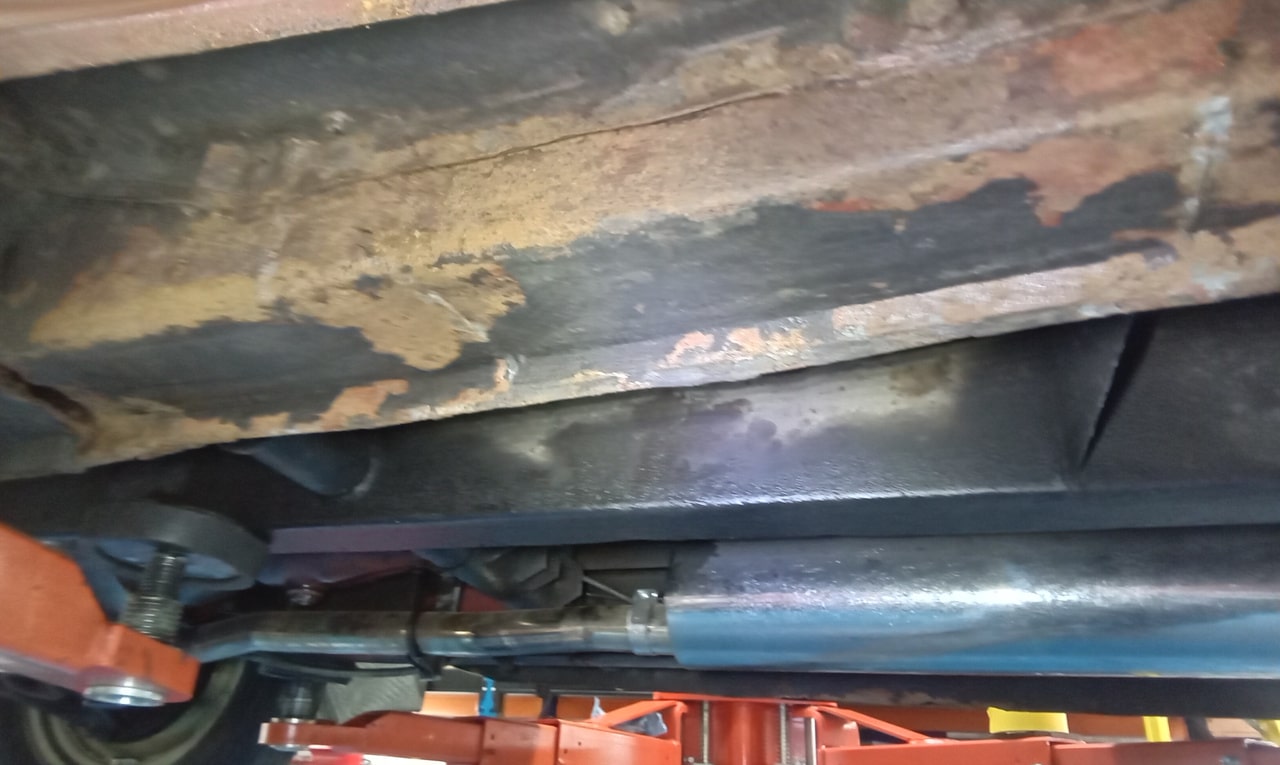

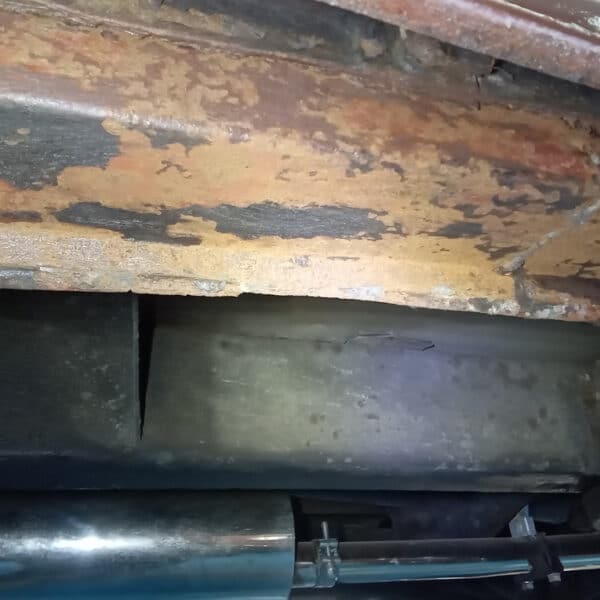

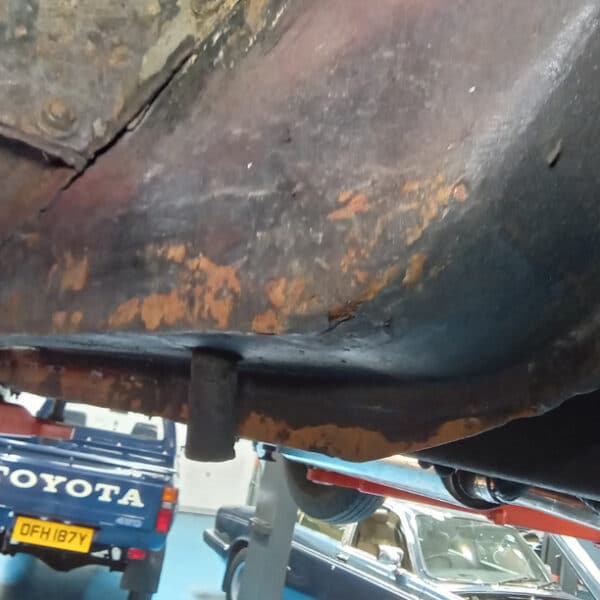

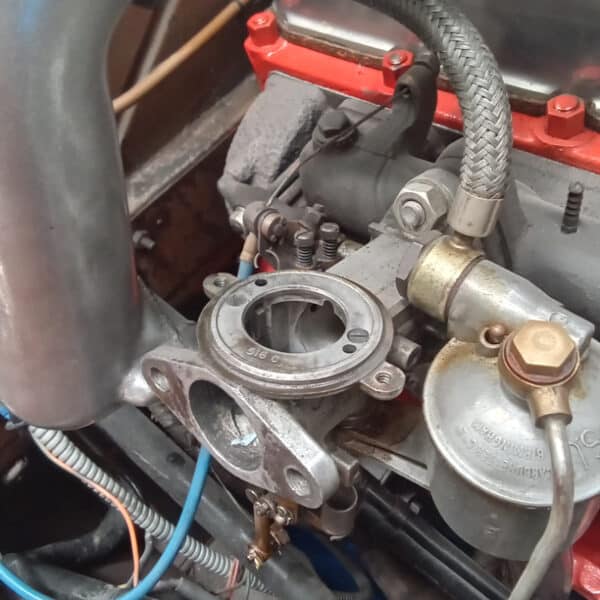

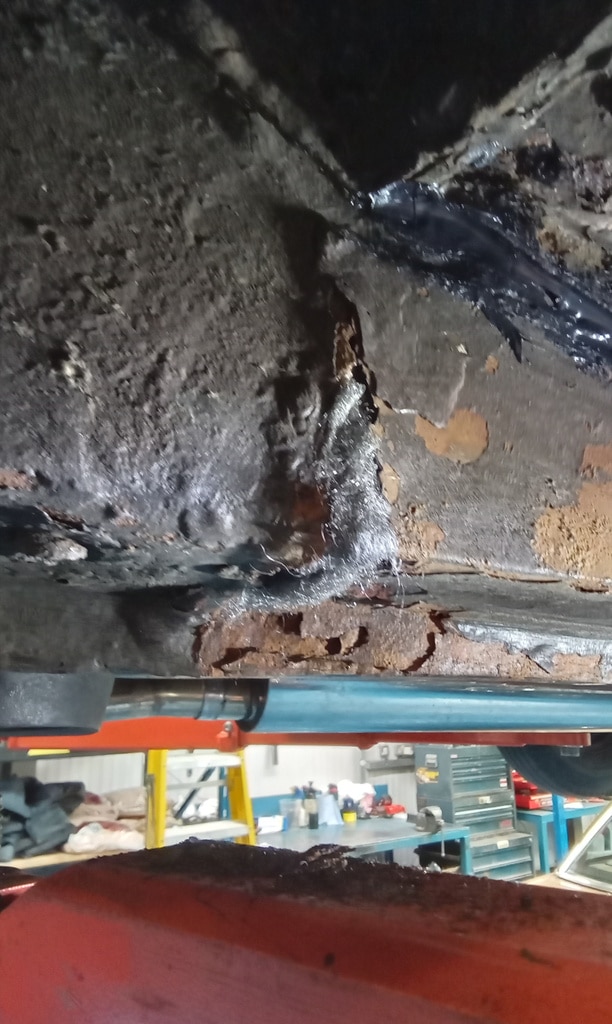

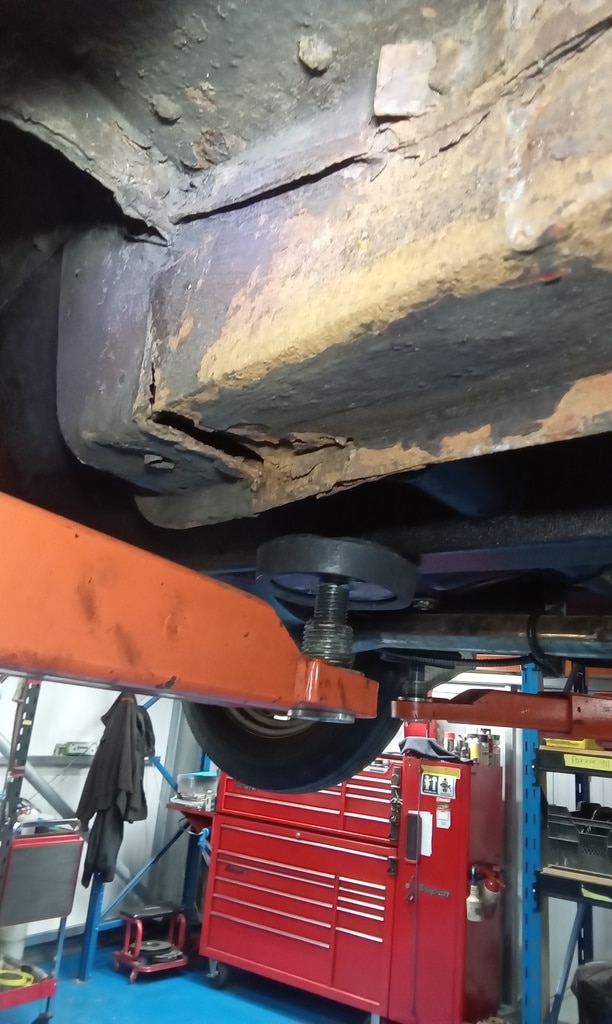

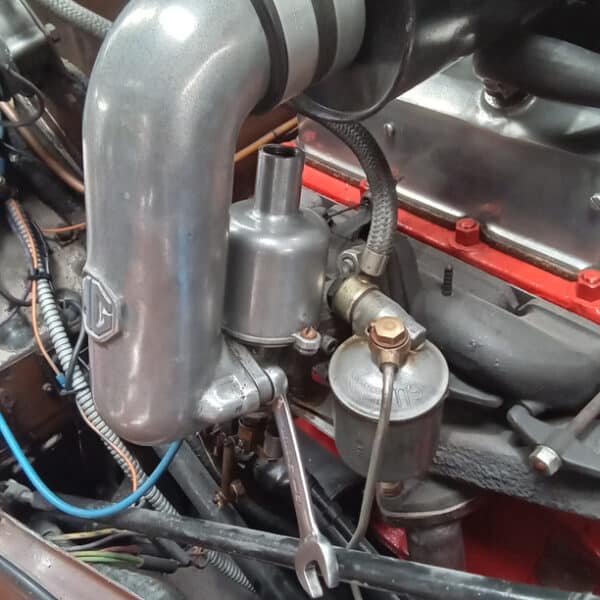

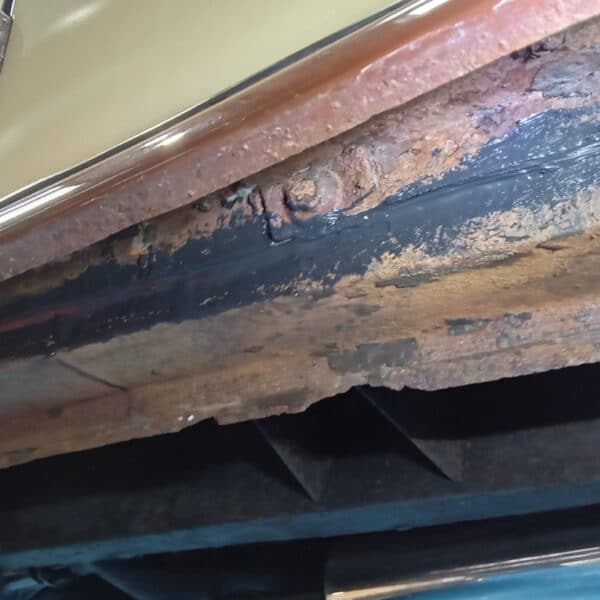

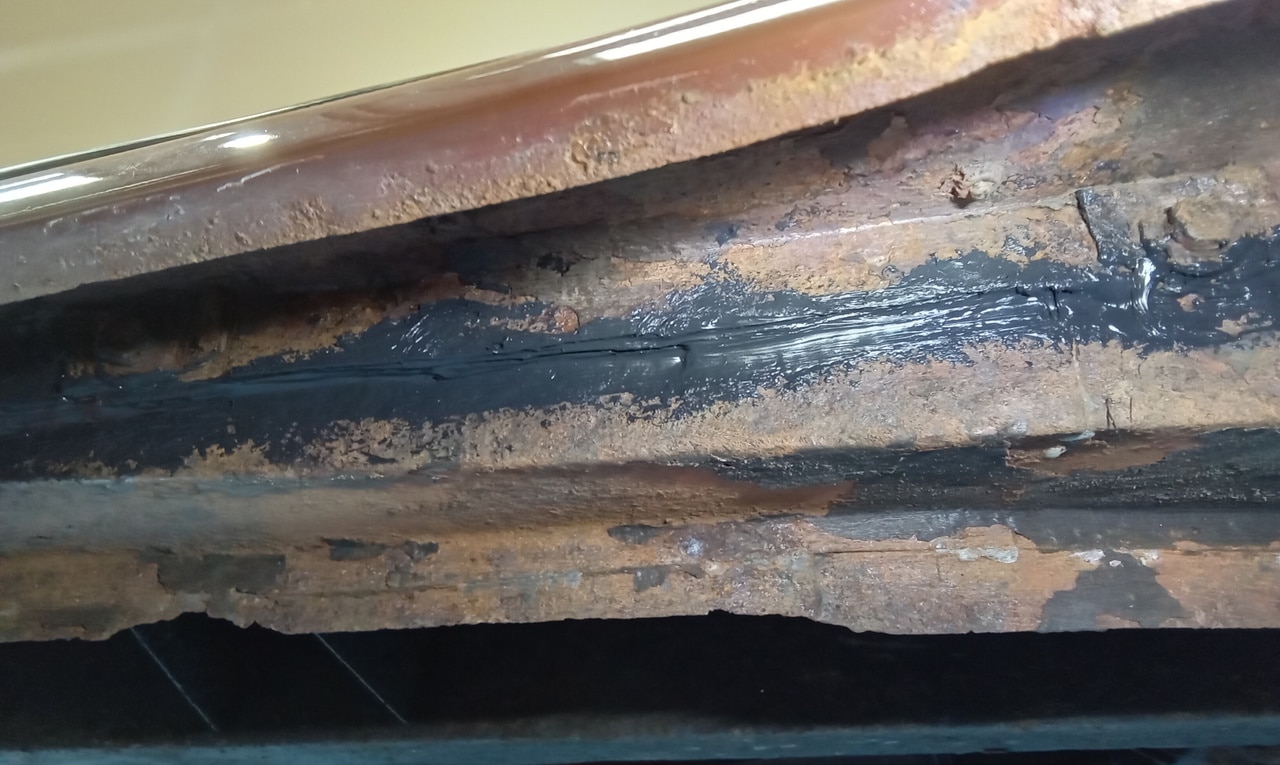

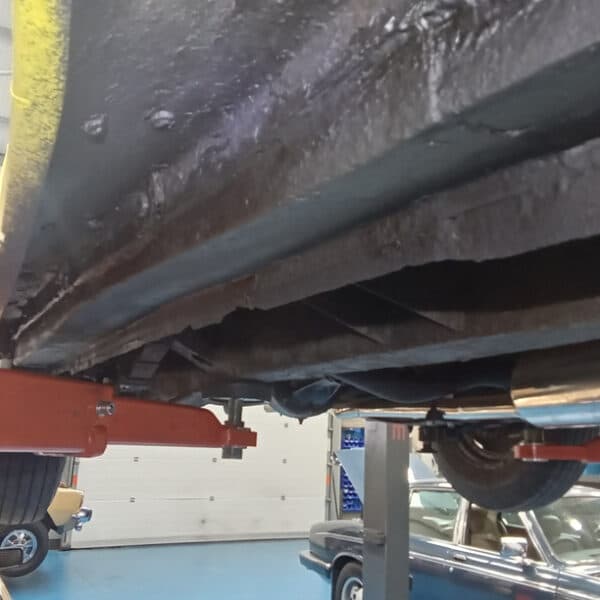

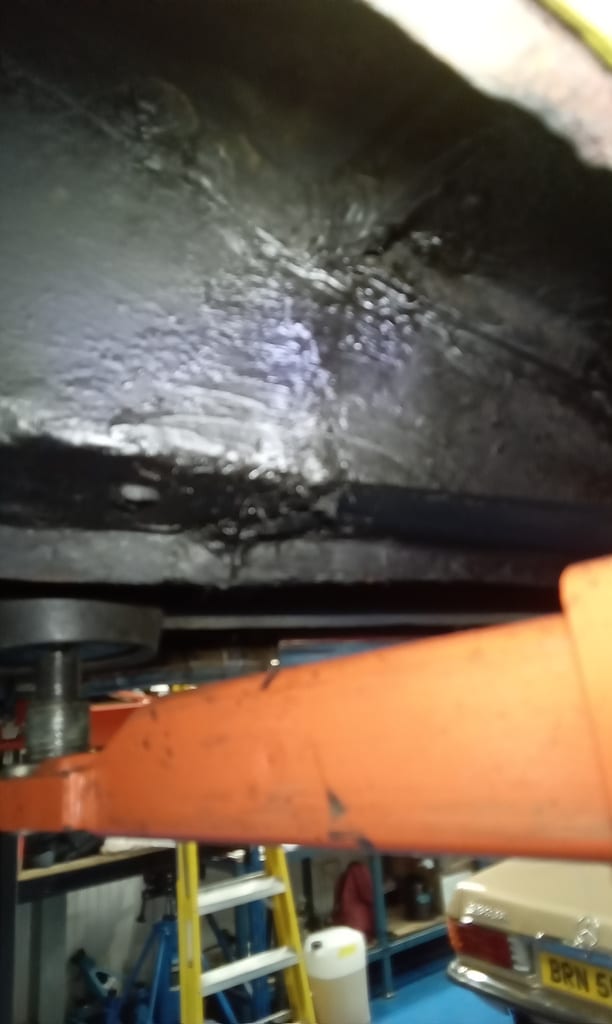

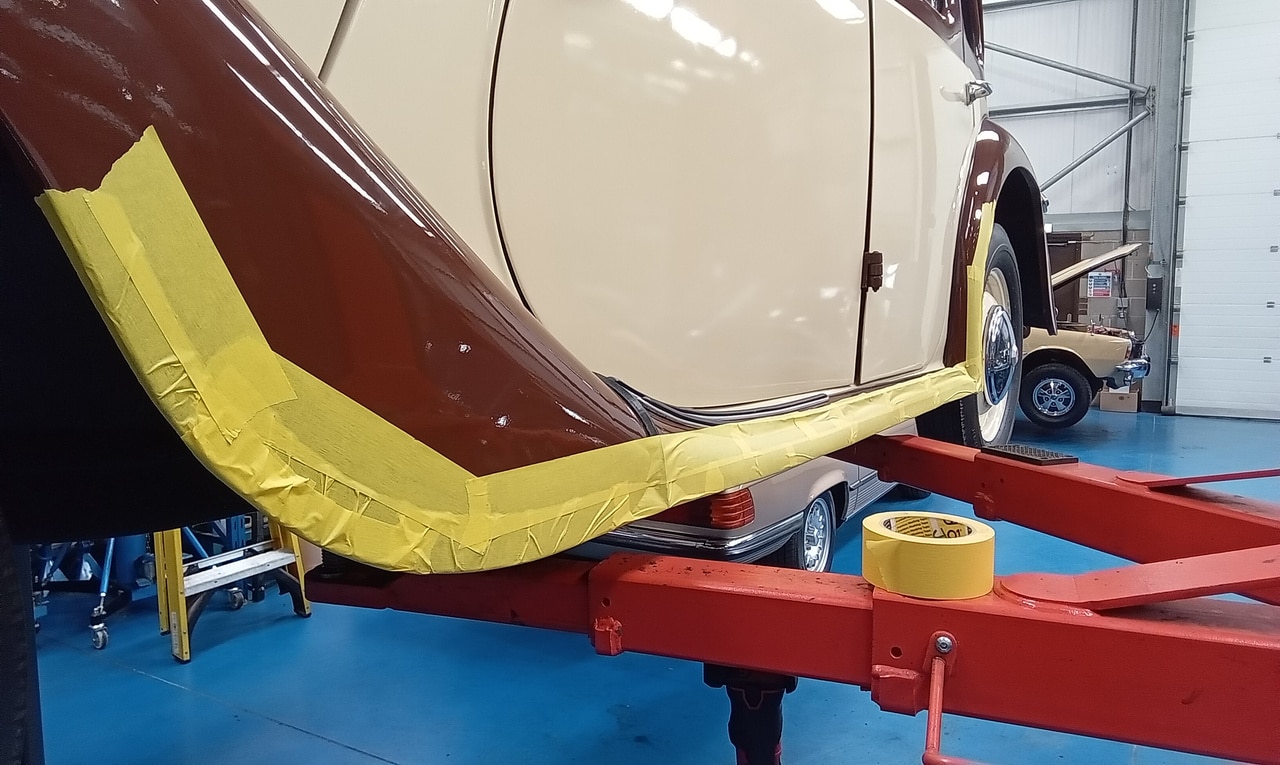

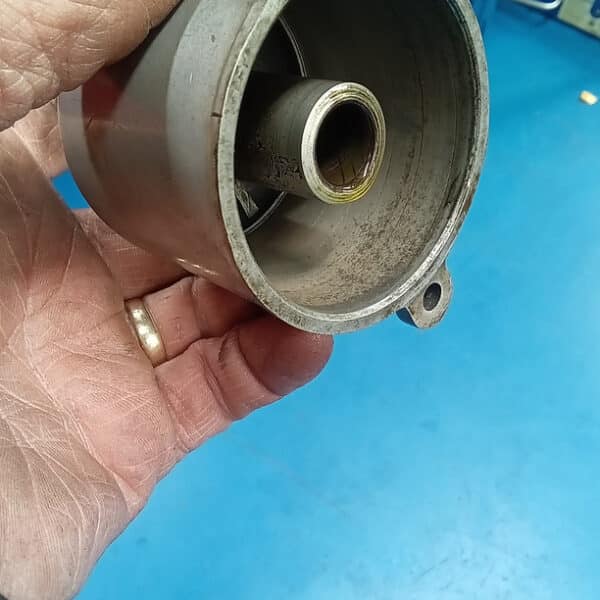

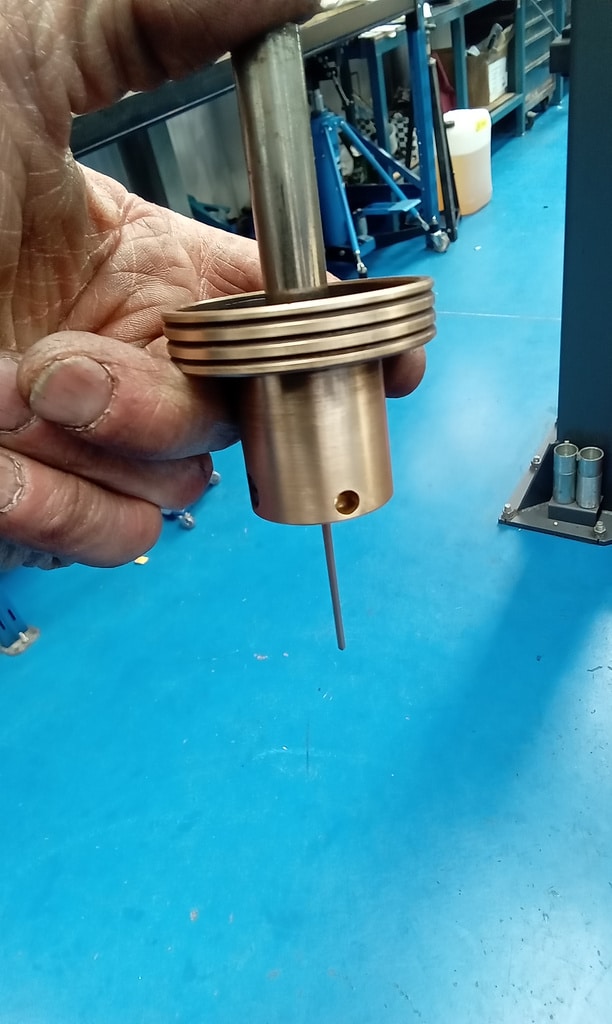

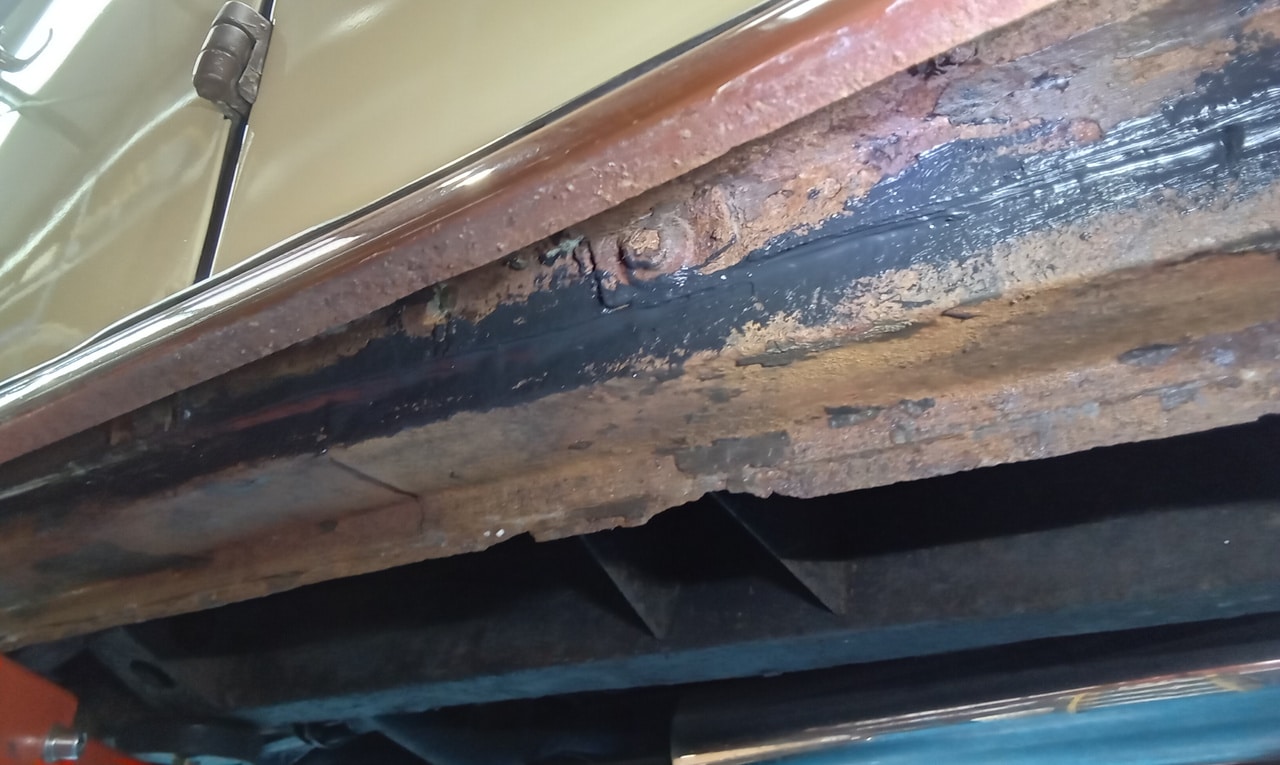

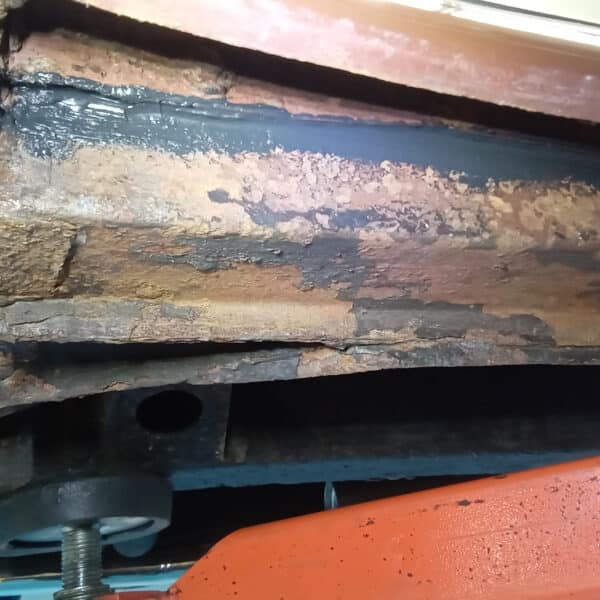

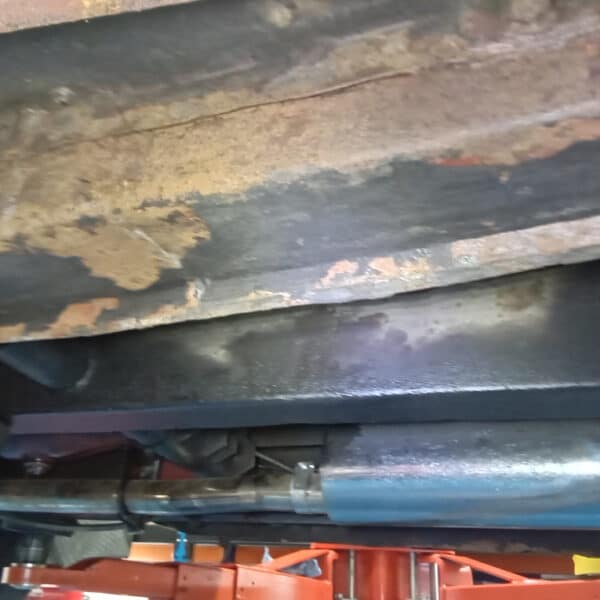

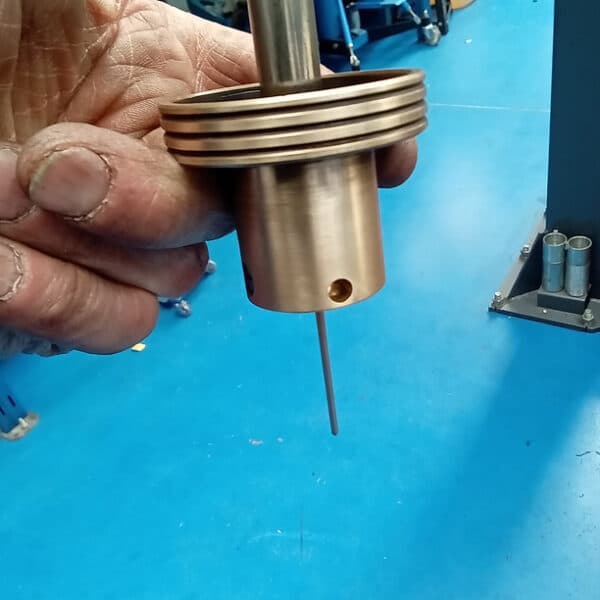

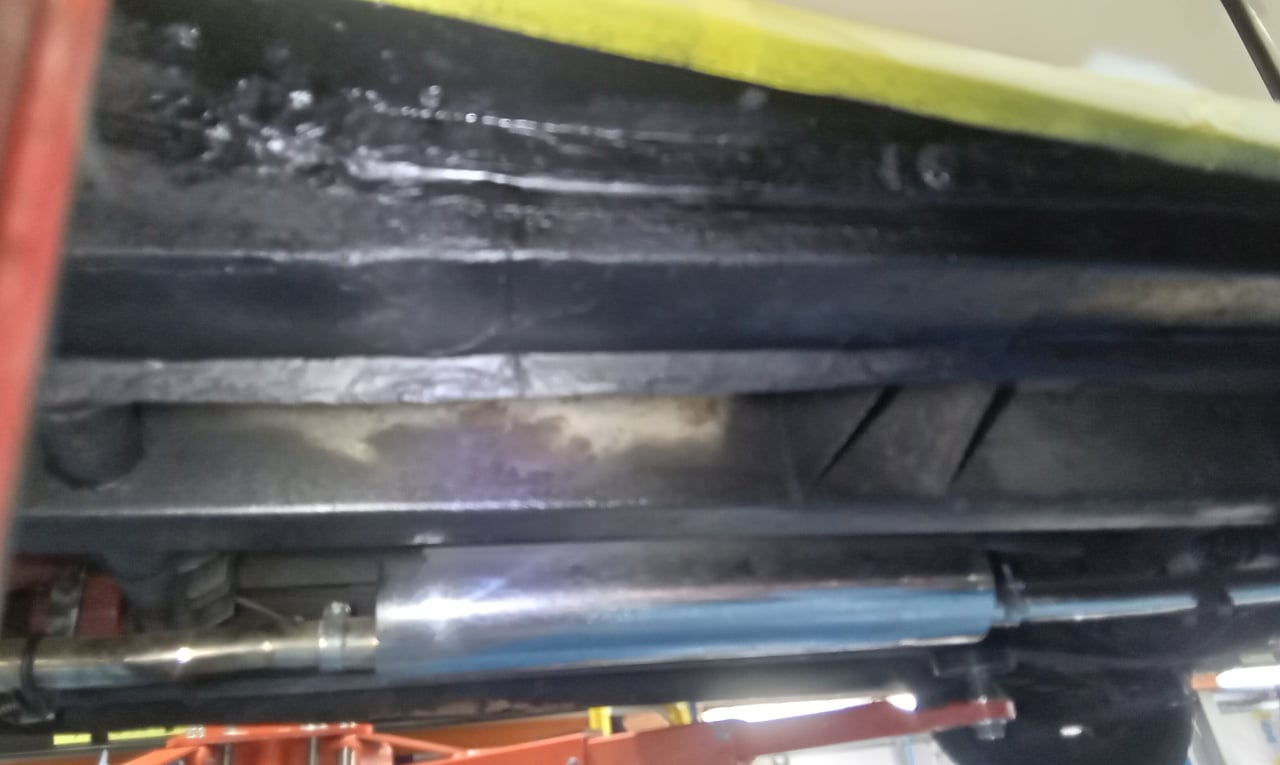

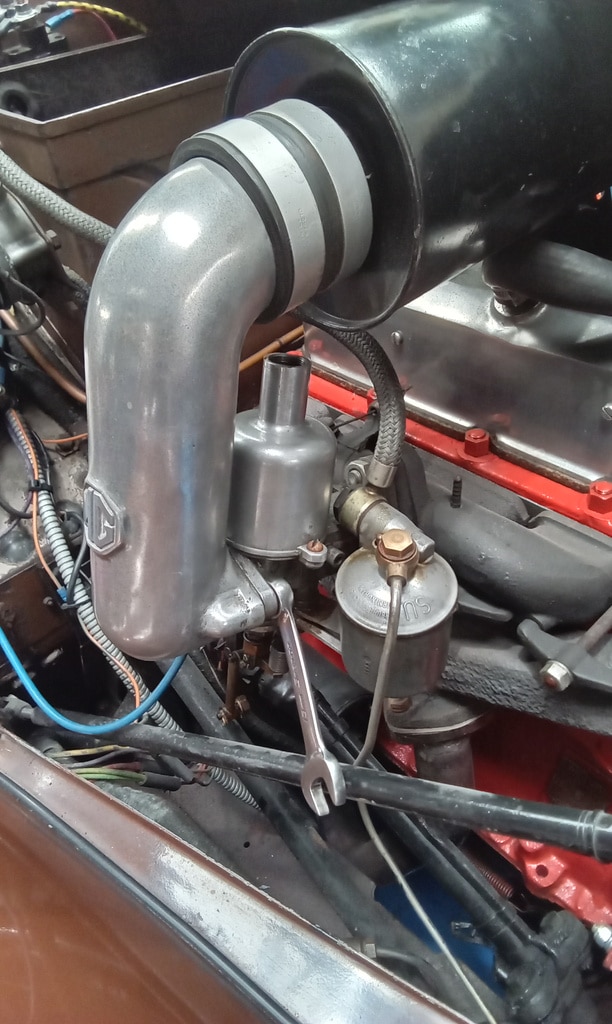

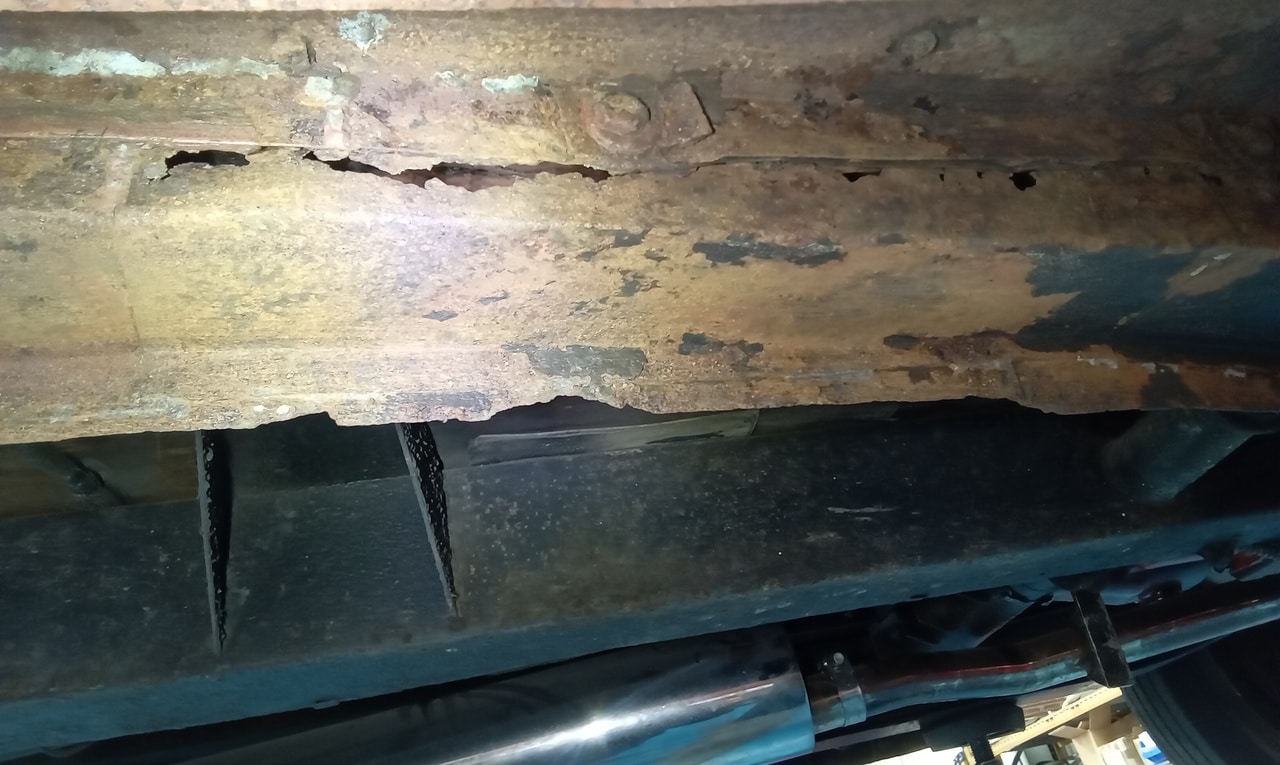

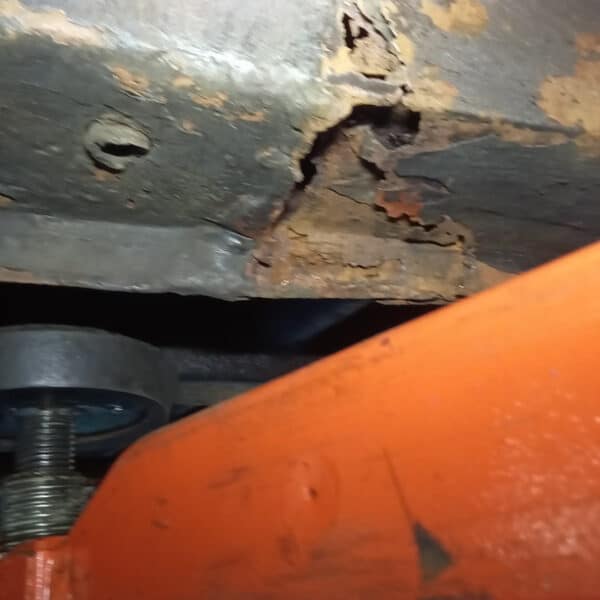

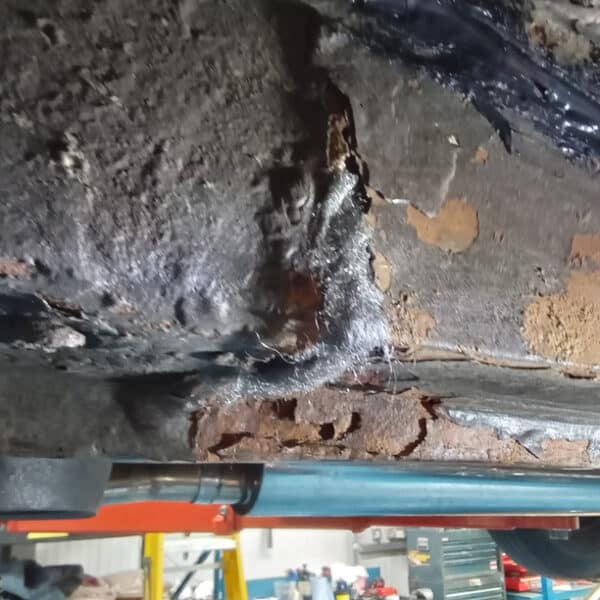

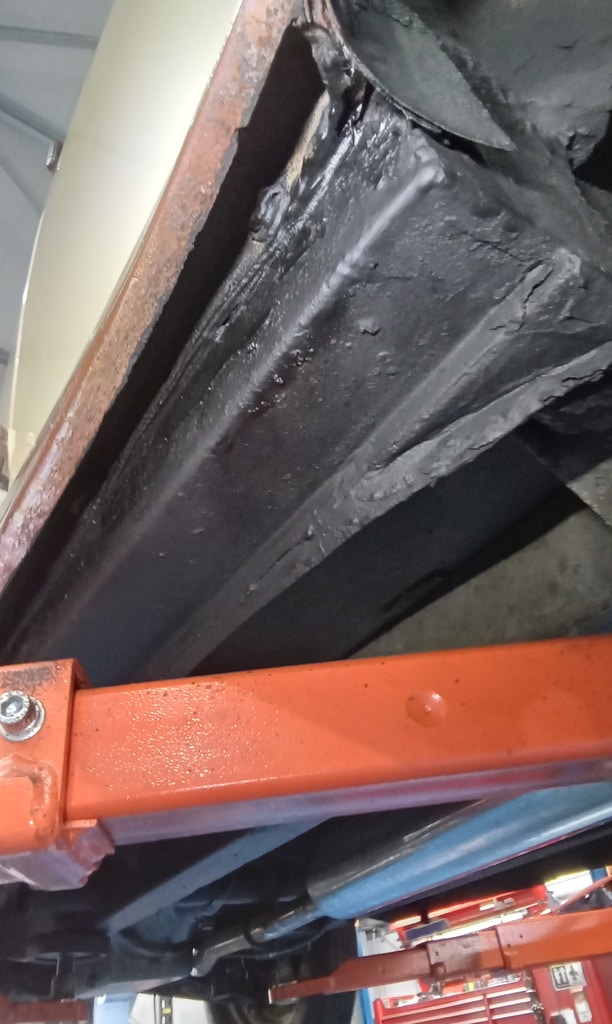

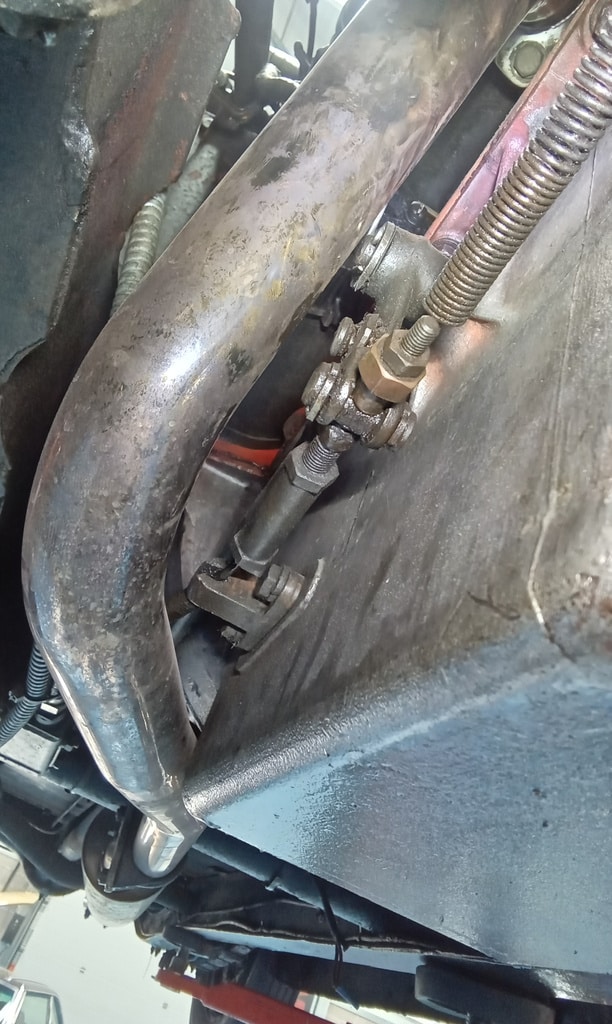

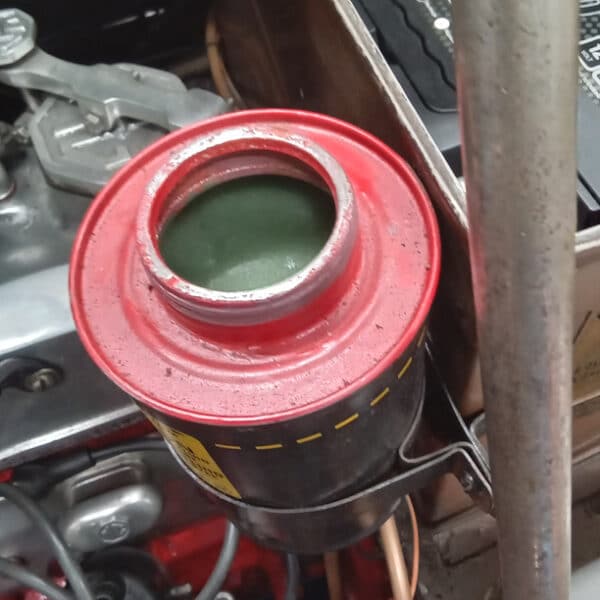

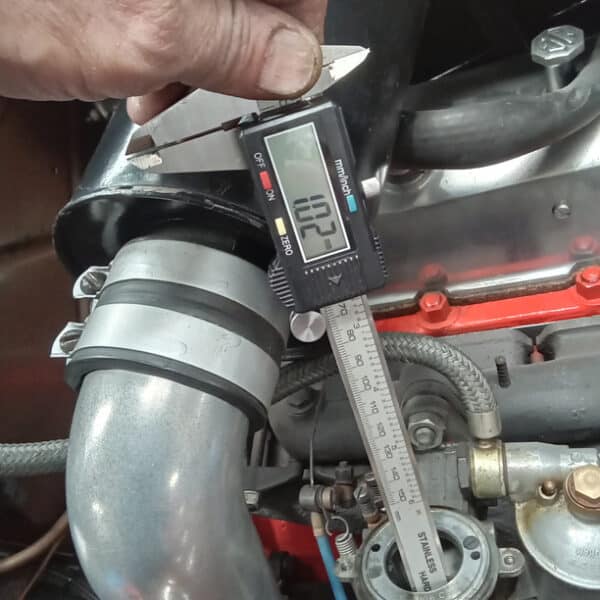

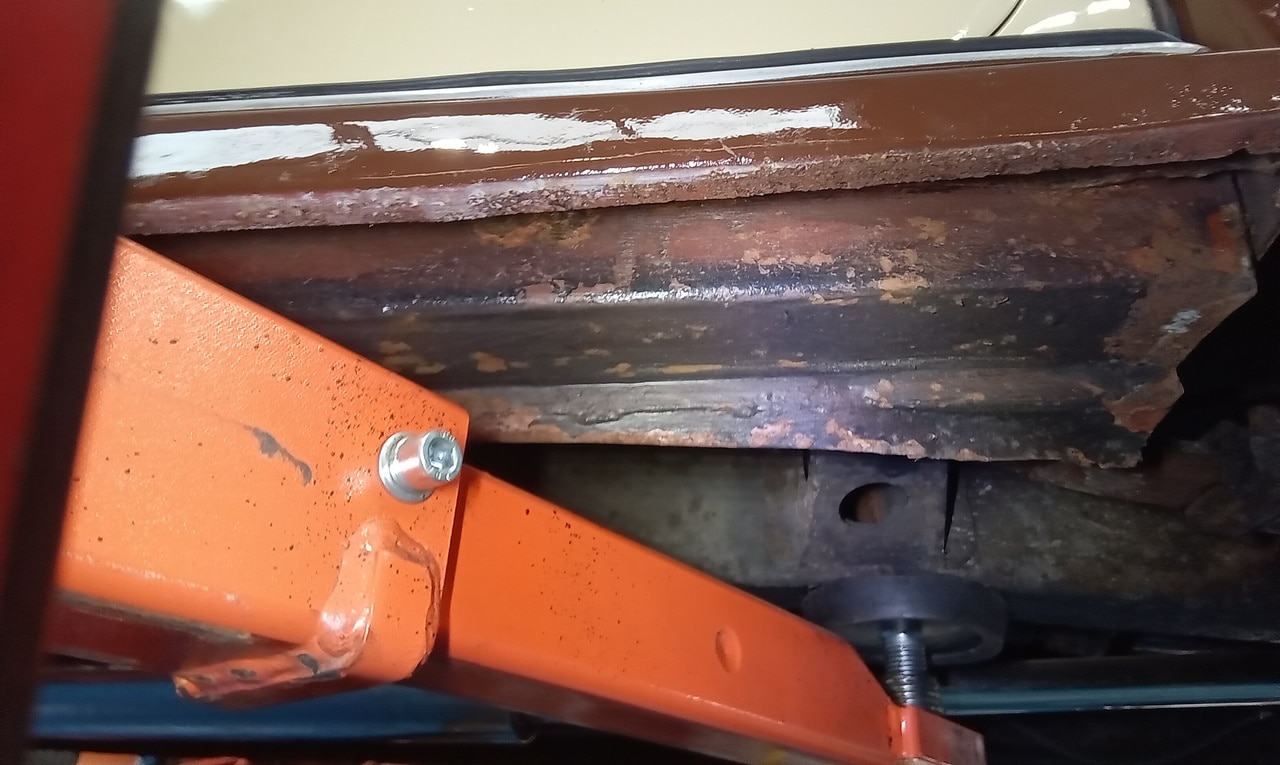

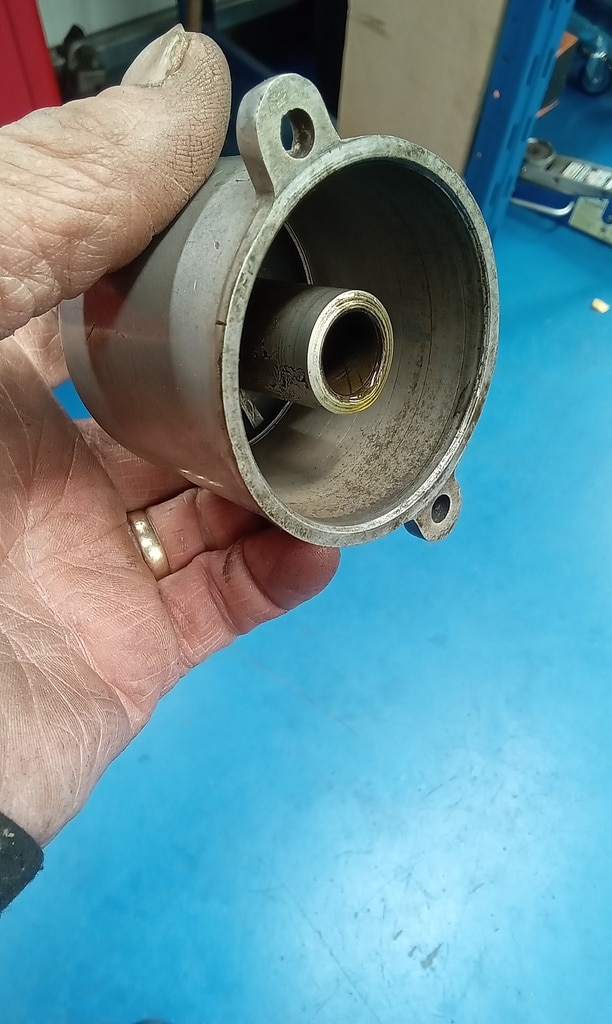

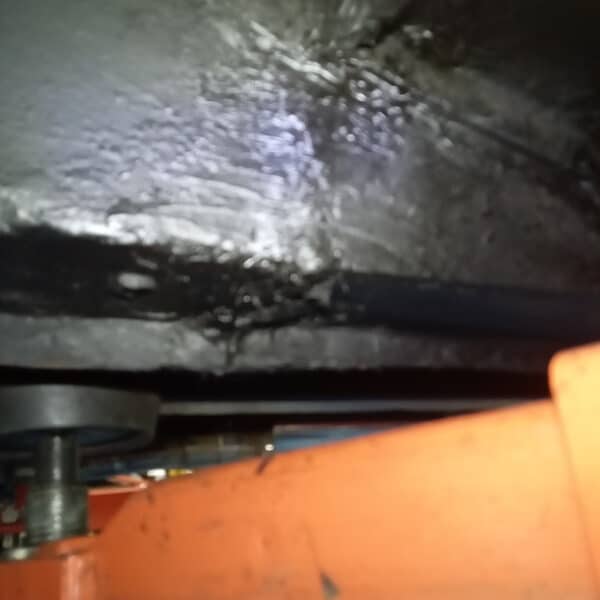

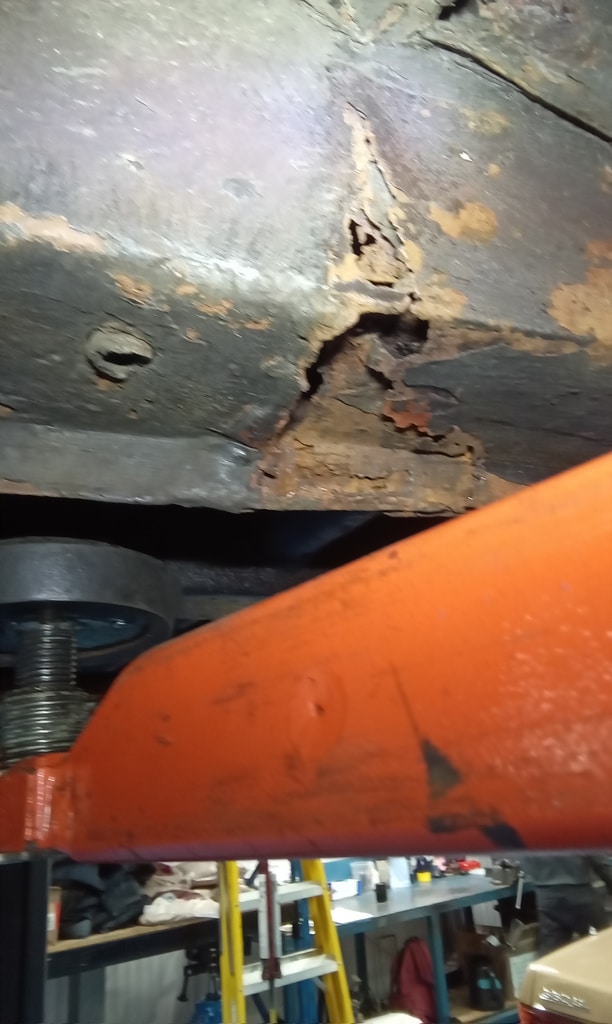

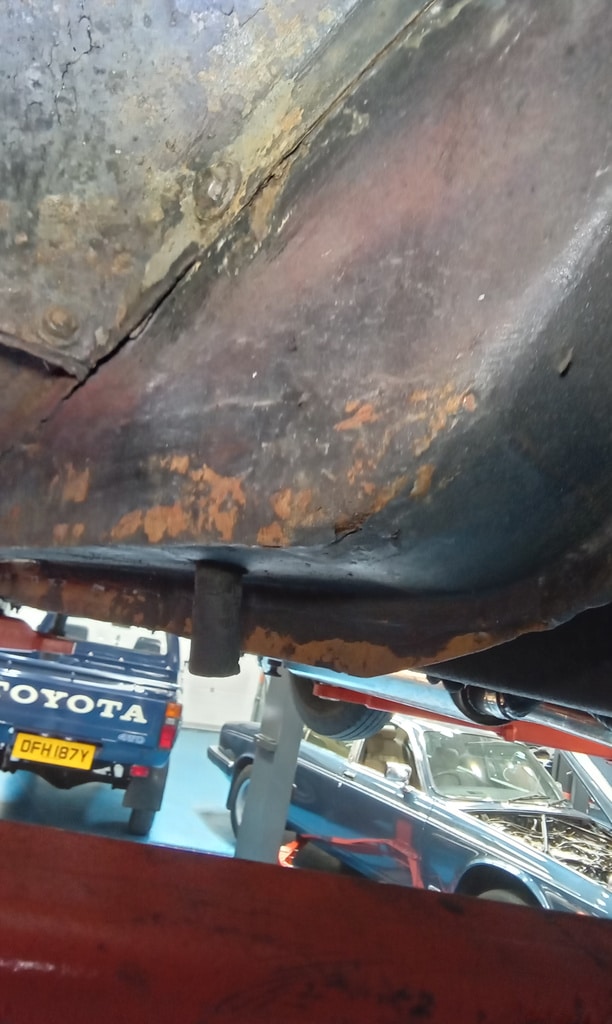

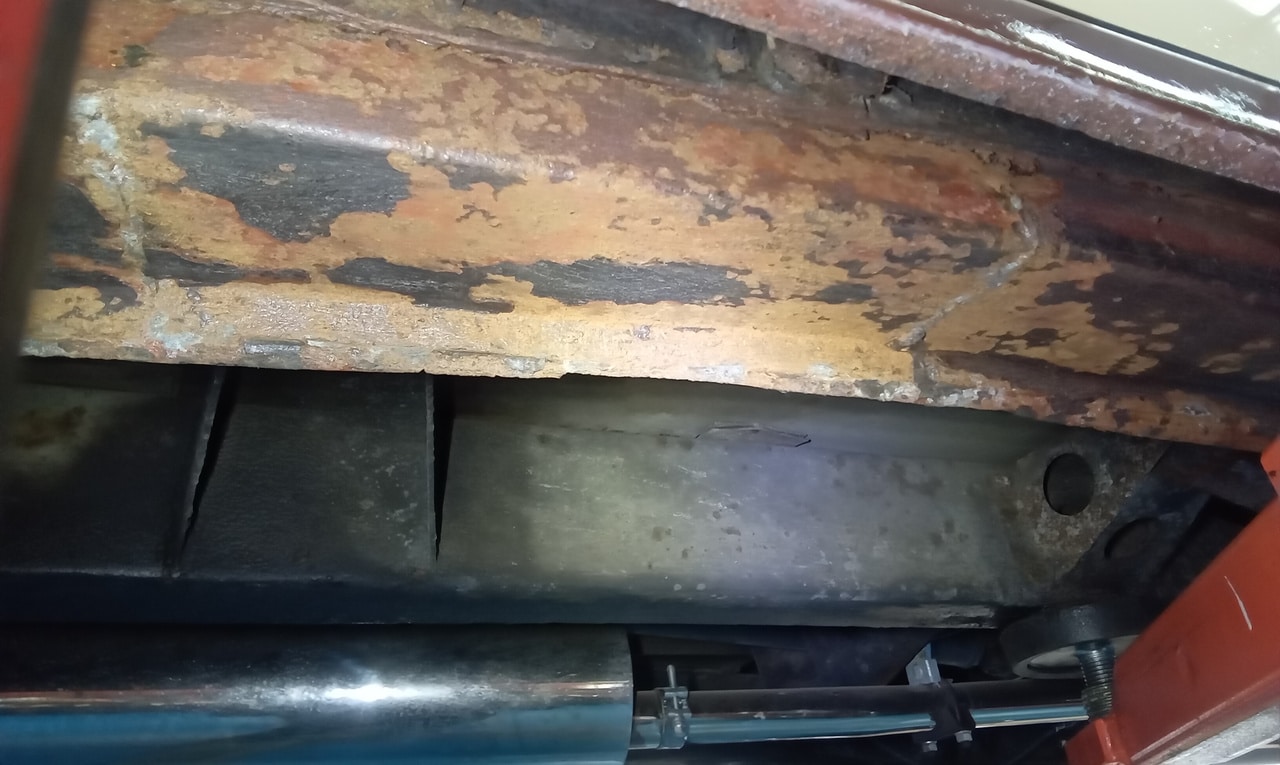

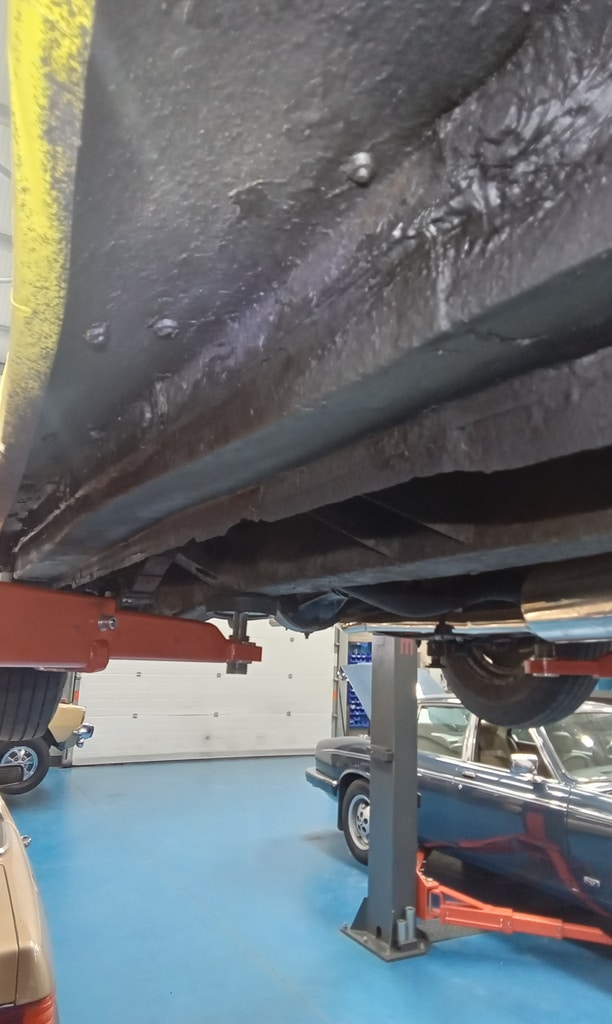

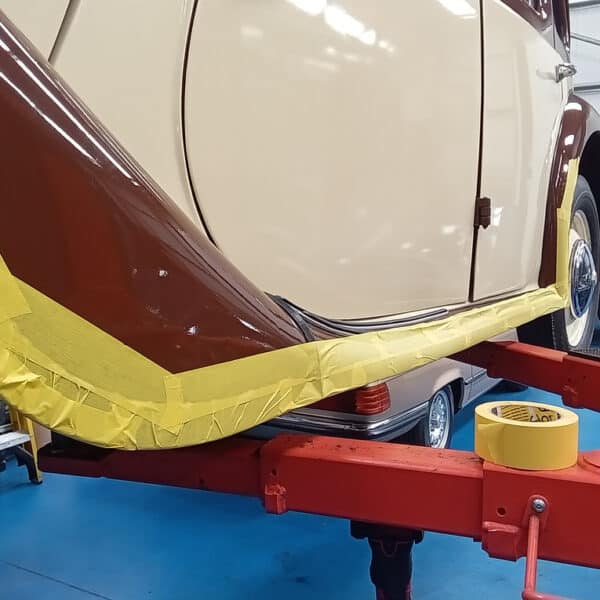

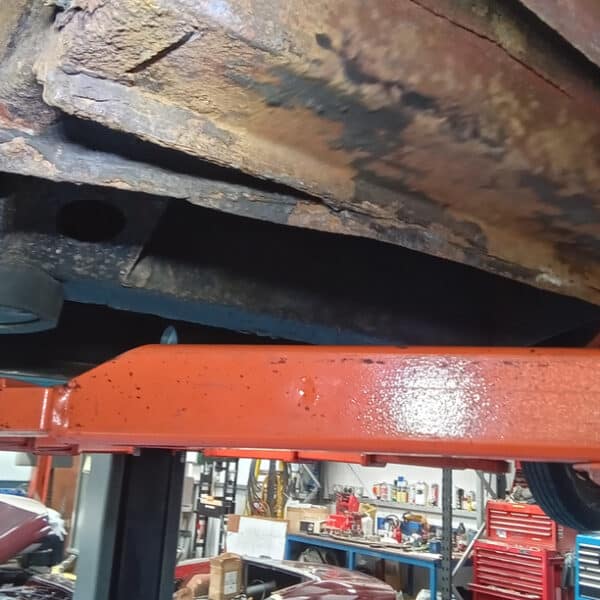

‘Remove air filter and removecarb chamber and piston. Clean and set jet and refit. Wire brush offside sill box section where corroded and seam seal. Leave to dry then underseal. Unmask offside. Repeat or nearside and underseal and leave to dry overnight.’

140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 21
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 22
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 23
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 24
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 25
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 26
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 27
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 2
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 3
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 4
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 5
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 6
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 7
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 8

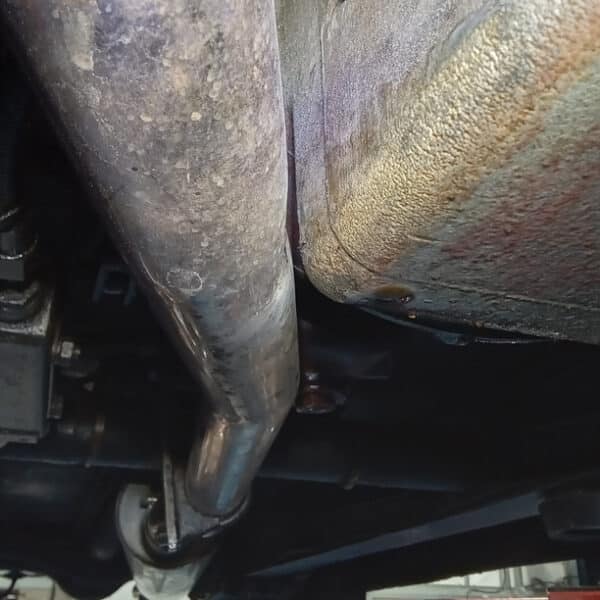

140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 9
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 10
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 11
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 12
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 13
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 14
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 15
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 16
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 17
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 18

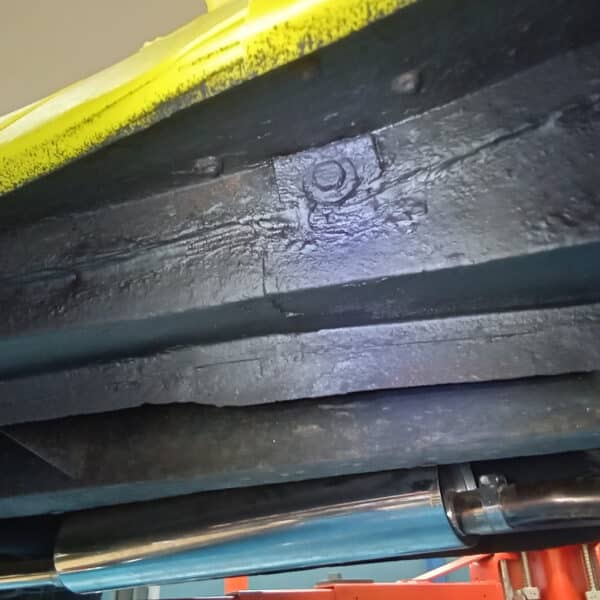

140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 19
140526 1952 MG YA Jet Reset Sill Underseal and Seam Seal 20

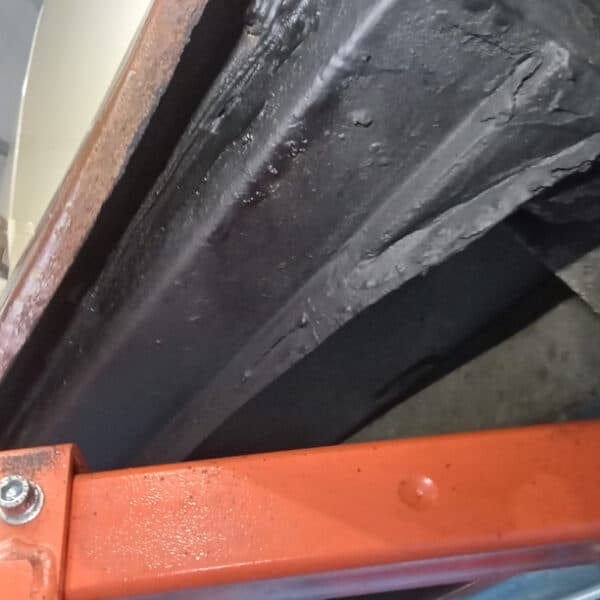

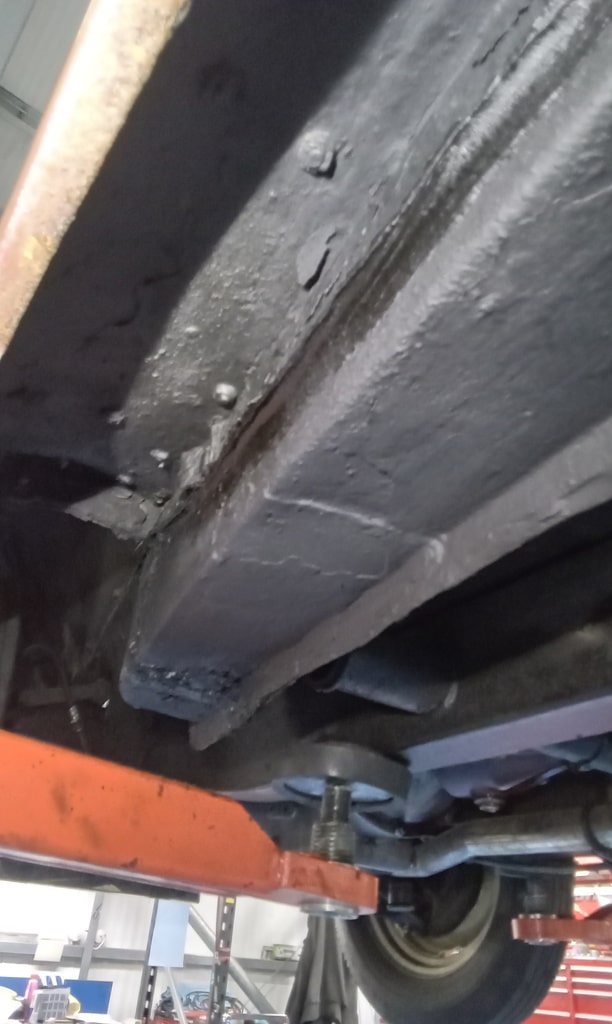

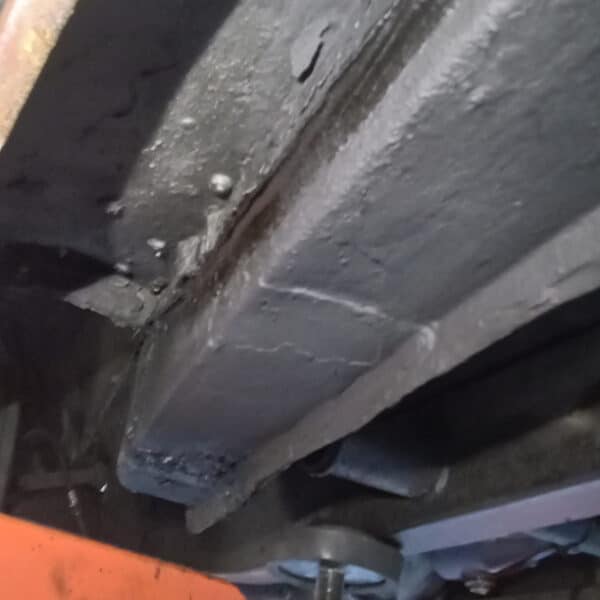

190526 1952 MG YA Underseal 2
190526 1952 MG YA Underseal
