[vc_row][vc_column][vc_column_text]We’ve managed to successfully tackle the main tasks of our 1960 Jensen 541S prototype chassis rebuild.

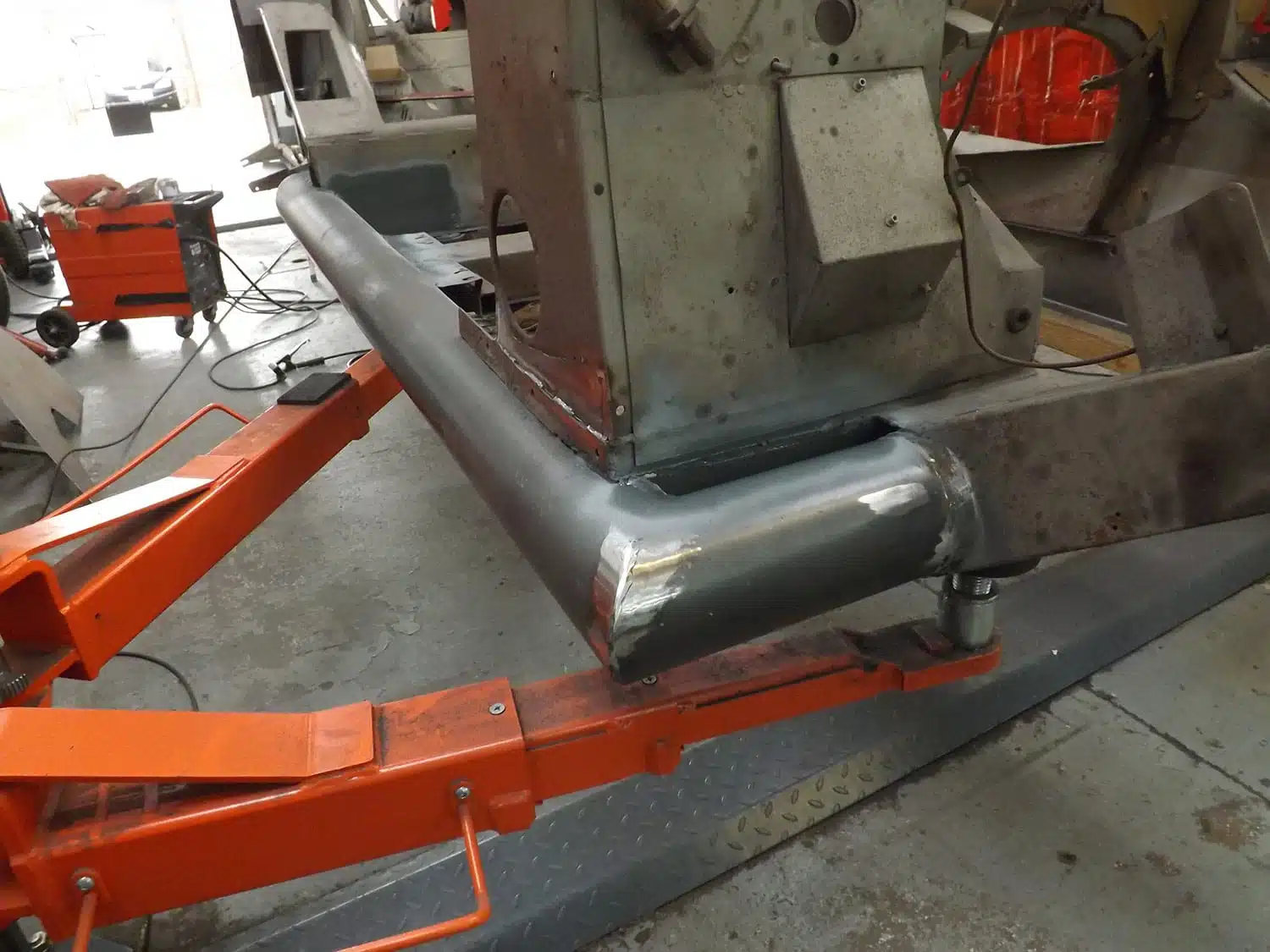

As you can see, we have had to replace one side of the chassis with new but we have managed to save certain areas of the other side which is great news.

The rear tube has also been replaced, this forms parts of the spring hangers and also holds the bumpers. We have also carried out extensive work on the strengthening bars.

We are still only a fraction of the way through the chassis build but the next task is to temporarily refit the body.

The body will need to be refitted to ensure everything lines up as it should. The inner arches also need to be fabricated but for these to be designed and built accurately the measurements are best to be taken with the body attached.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_gallery type=”image_grid” images=”10345,10346,10347,10348,10349,10350,10351,10352,10353,10354,10355,10356,10357,10358″][/vc_column][/vc_row]
