Hidden Bluetooth Amplifier

By Craig Ranson
By Craig Ranson

Managing Director – Bridge Classic Cars

Ideal for hidden audio solutions!

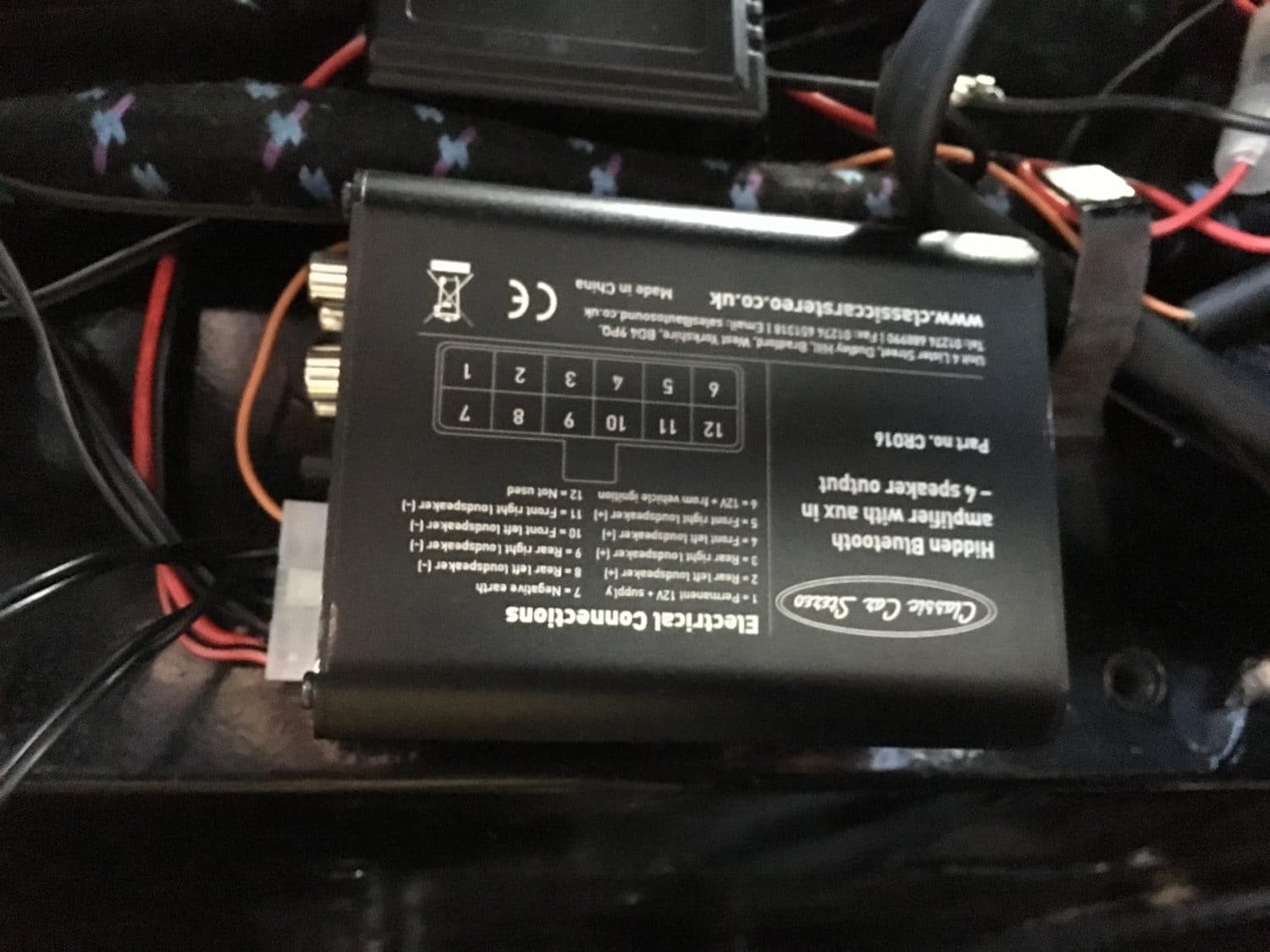

Our hidden Bluetooth amplifier allows you the option to retain the appearance of your vehicle interior whilst offering a quality sound from your mobile phone or other portable music devices either via Bluetooth or via the headphone jack.

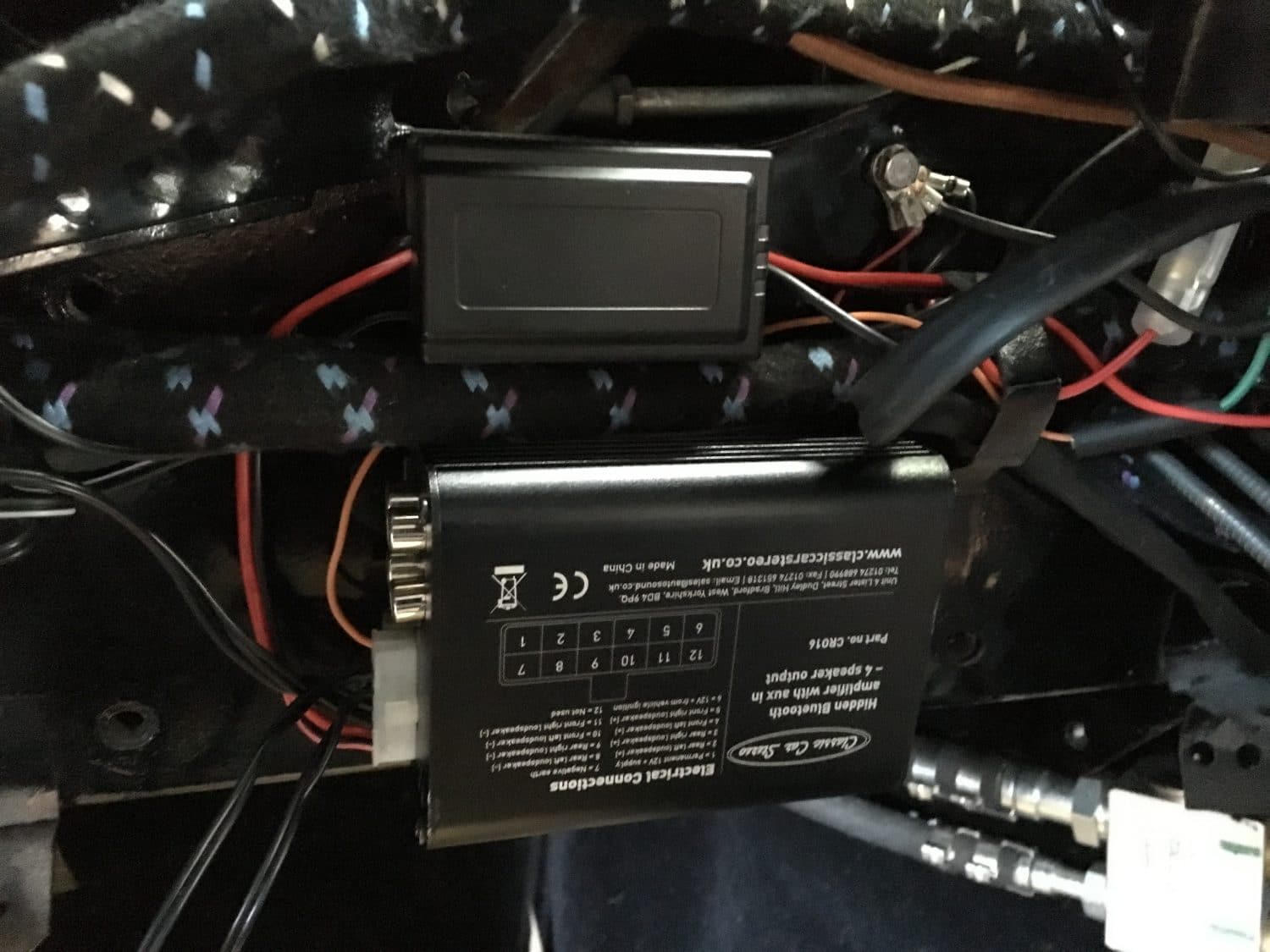

There is no need to have a radio installed in your vehicle, however, you will require at least two speakers or one of our dual voice coil single speakers. The amplifier can be hidden away behind the dashboard, under the seat or even in the boot and is capable of powering 2 or 4 speakers.

Specifications

Maximum output @ 4 ohms 4 x 250 watts
RMS output @ 4 ohms 4 x 60 watts
Frequency Response 0 HZ – 20 KHZ
Fuse Rating 5 Amps
Power Supply 10 to 16 volts
Sensitivity 150 MV
Channel Separation > 50 DB
THD < 0.1 %

Dimensions – 113 x 80 x 45mm

And due to air conditioning system installed we have a lack of room to play with in our 1967 Jaguar E-Type 2+2.

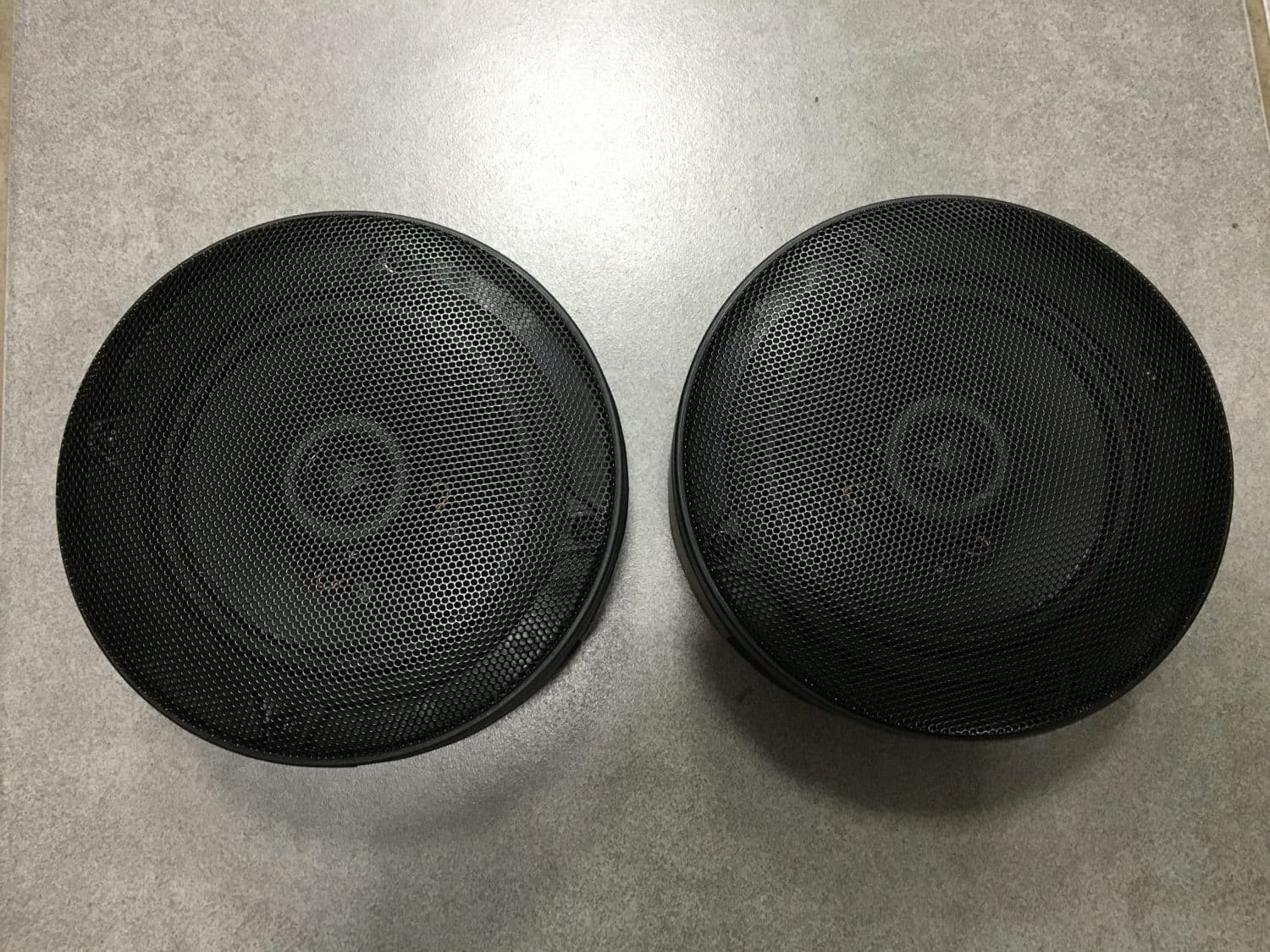

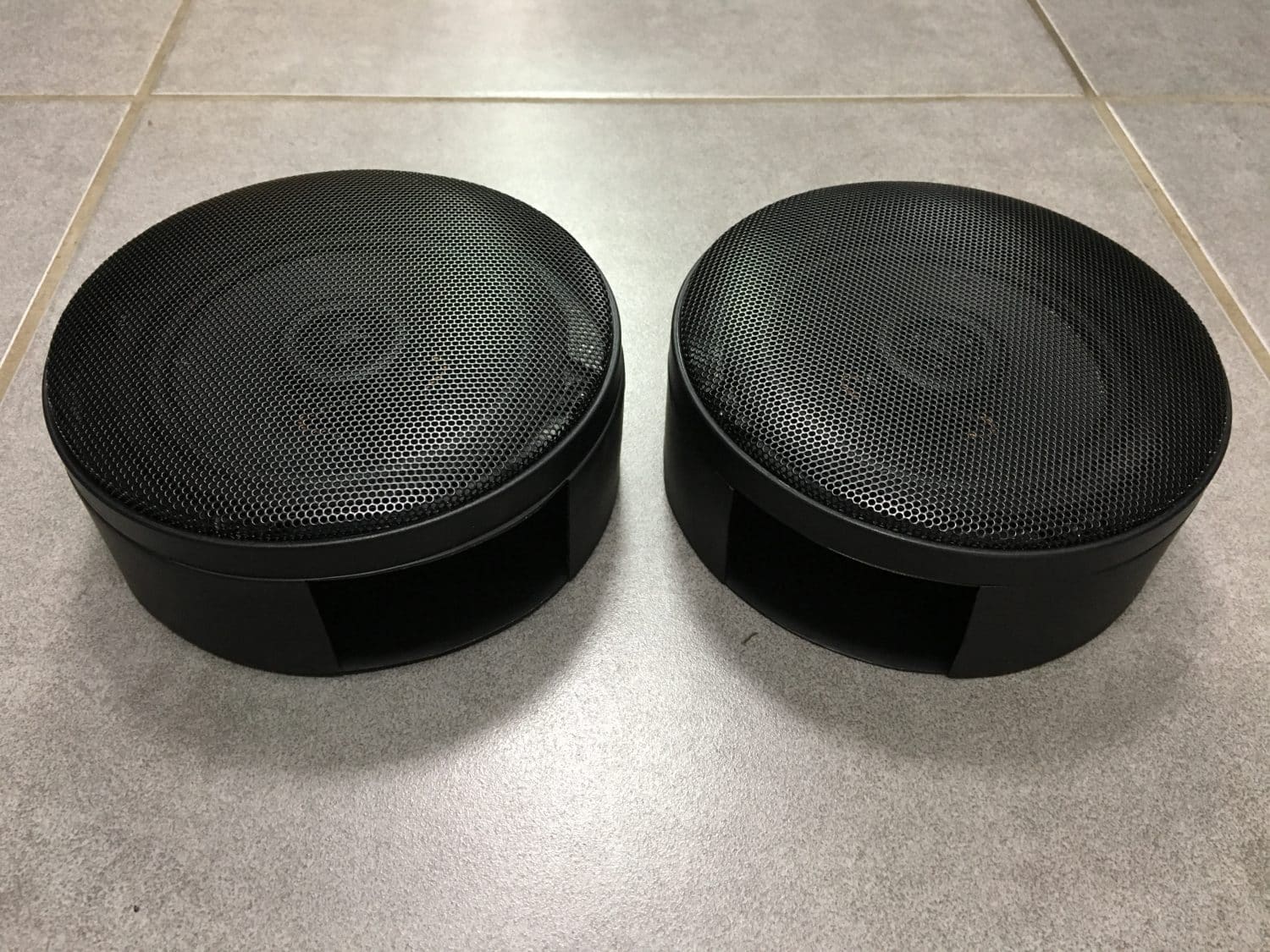

With that in mind we have manufactured our speaker boxes to house the hidden speakers which will be strategically placed throughout the car.
