Fitting the new wiring loom

By Craig Ranson
By Craig Ranson

Managing Director – Bridge Classic Cars

As with the majority of our wiring harness’, we deal directly with Autosparks.

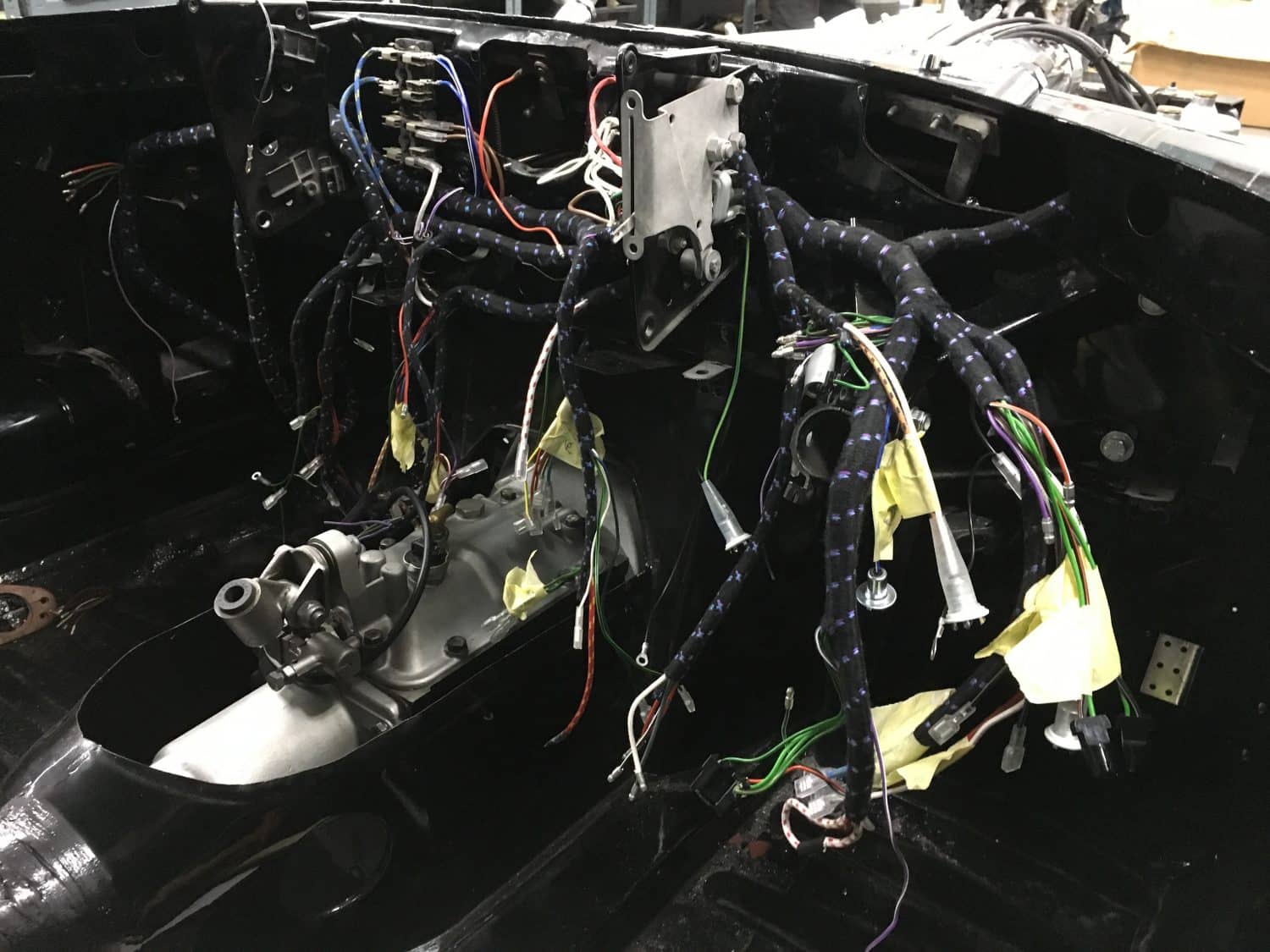

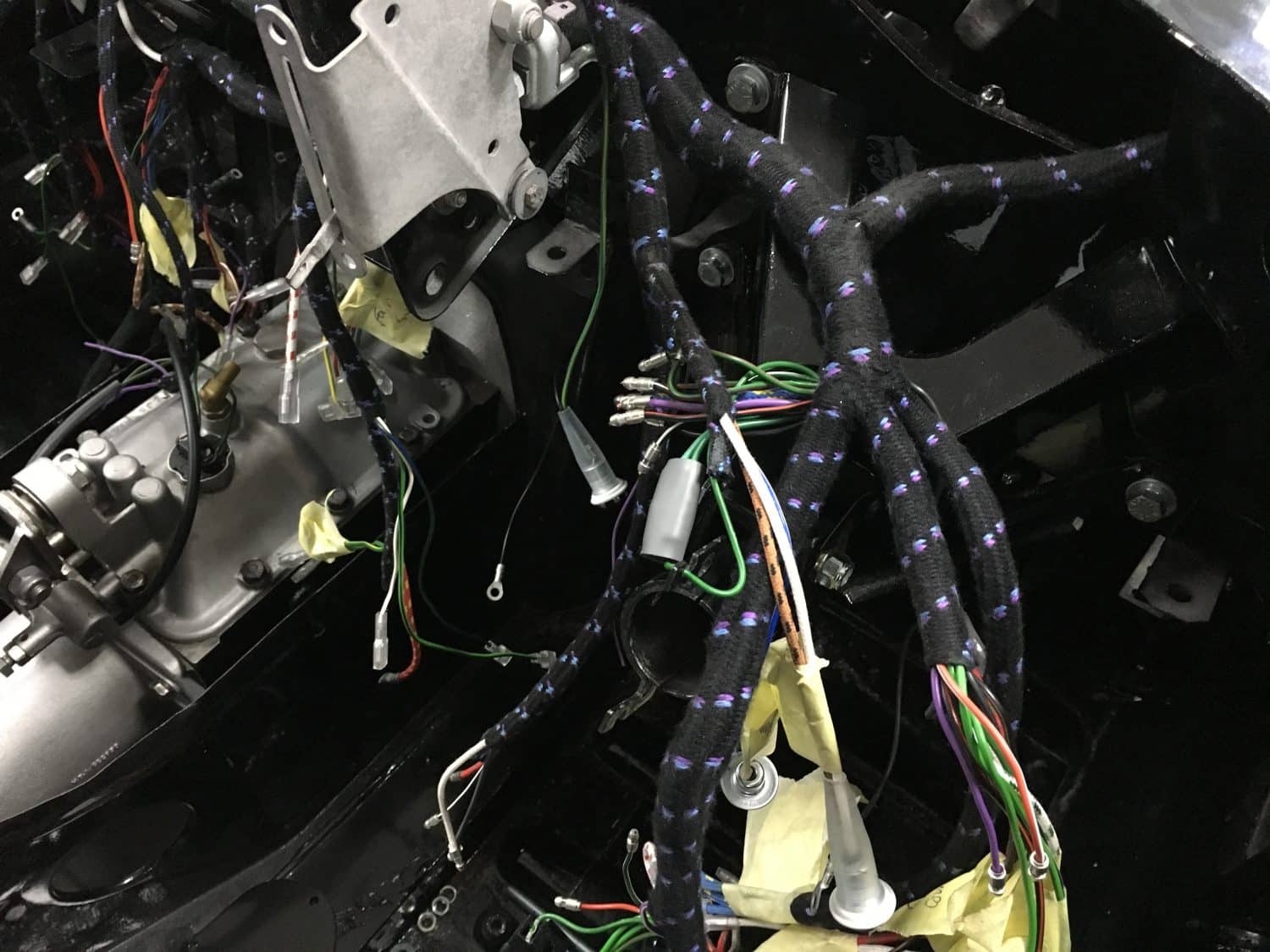

Autosparks are the market leaders in manufacturing bespoke harness’. They use British Standard 6862 PVC insulated automotive cable where applicable. This can then be braided to replicate the classic braided cable look with the modern day PVC cable properties. Once the harnesses are laid they can then be bound in either PVC harness tape or a cloth braiding depending on vehicle.

Original Manufacturers colour coding is used where possible; terminals and fittings are supplied where necessary. Autosparks go to great lengths to obtain original-type terminals but on older vehicles some wiring accessories may no longer be manufactured. If terminals and fittings are unobtainable they may omit or substitute for a suitable alternative.

The new harnesses are not labelled but will follow the pattern of an original harness. A good tip is to label the old harness up as you take it off. You can then use this as a guide for the replacement. Wiring diagrams are useful to identifying each branch on the harness and location for the wiring in each vehicle however, be aware there can be a few out there for the same vehicle but will say different things.
