[vc_row][vc_column][vc_column_text]History of the Jensen 541S

The Jensen 541S was Jensen Motors luxury GT model of the Jensen 541 series, being 4″ wider than the 541R, which had the advantages of making the interior roomier and improving the road holding. The 541S had a conventional radiator grill (as opposed to the flap of the 541) to allow for the extra heat given by a proposed new V8 engine, and a Salisbury limited slip differential for the extra torque demanded.

Jensen used their own powerful version of the Austin DS5 4-litre straight-six engine (featuring triple SU carburetor, a high compression Weslake head with custom-made twin exhaust manifolds and an alloy baffled sump/oil cooler) in the 541S. Initially the Jensen brothers tested Chrysler Hemi V8s in the 541S, also trialed in Richard Jensen’s Jensen 541 deluxe, but none were used because of supply difficulties. One was fitted with a Chevrolet 327 V8 however, at Donald Healey‘s request. A total of 127 cars were hand-built between 1960 and 1962 at Jensen’s West Bromwich factory, mostย having GM-licensed Rolls-Royce hydramatic gearboxes. This was innovative at the time as performance cars mainly had manual gearboxes. It also suited the criteria of effortless speed and luxurious long distance driving Jensen set for their new car, although twenty-two were fitted with Moss manual gear boxes at the request of their prospective owners.

The Jensen 541S is also notable for being the first British car to have seat belts fitted as standard equipment. Another first for the 541 series was the use of Dunlop disc brakes on all four wheels. A rack and pinion steering system was employed, giving the car very positive steering. Other safety equipment included a padded windscreen surround, fire extinguisher and first-aid kit. Each car was also fitted with a Motorola radio.

The 541S was superseded by the Chrysler Golden Commando V8 powered Jensen CV8 model, which inherited from the 541S the same wheelbase and track dimensions, as well as the Jensen ethos of safe, easy, comfortable and fast inter-continental travel while the groundbreaking 1966 Jensen FF used a perimeter tube style chassis first tried on the 541 series of cars.

Jensen 541S

Jensen 541S

Reg Number: 5871 VT

Date of Registration: 02.01.1961

Chassis No: 100/1013

Engine No: 40/A/11052

Cubic Capacity: 3993CC

Fuel Type: Unleaded petrol

Taxation Class: Private Light Goods

Wheel Pan: 2-Axle-Rgid Body

Body Type: Saloon

No of Seats: 4 Seater

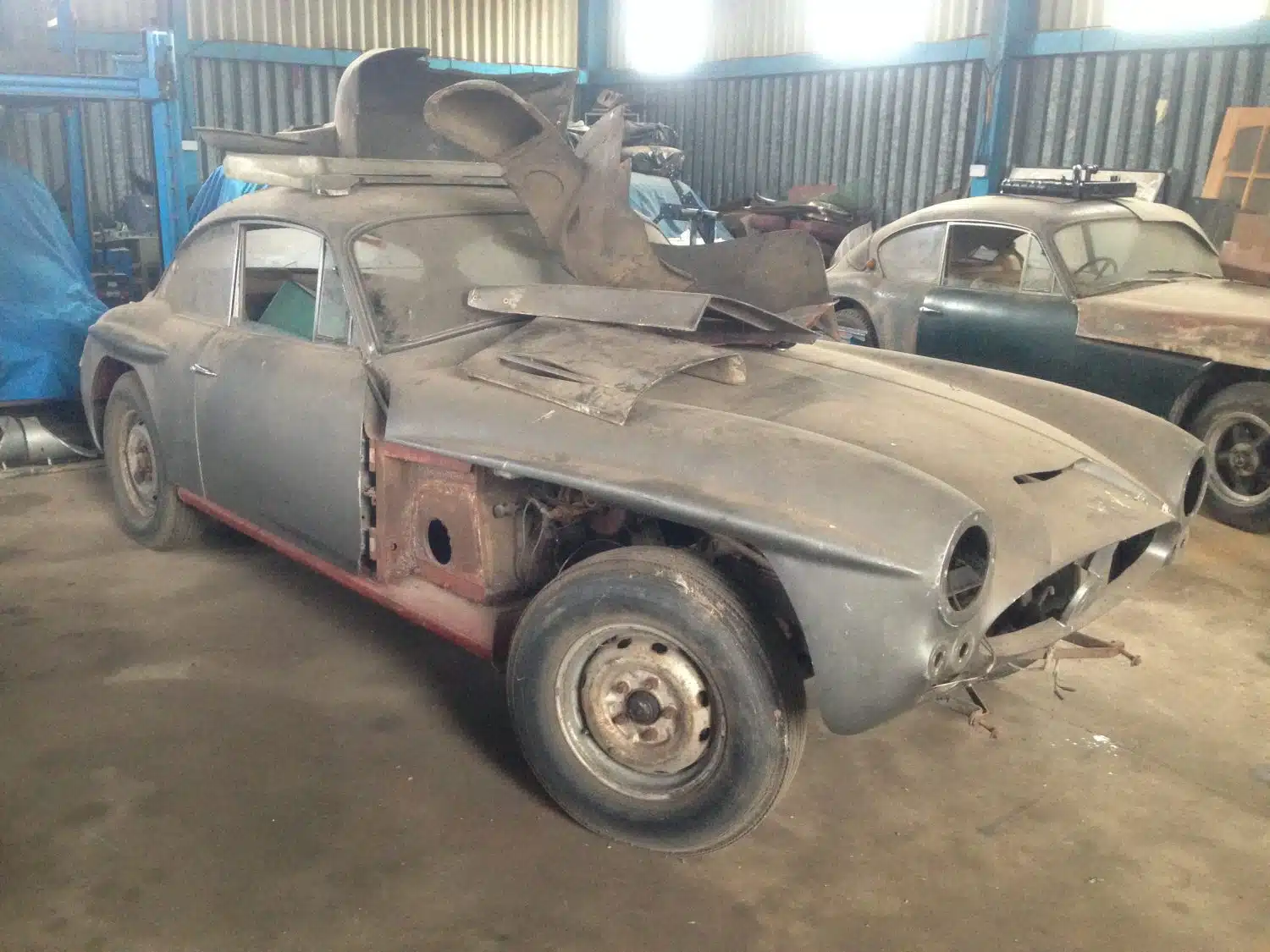

This Jensen 541S was found in a farm building in Boxford Suffolk. The owner had bought two Jensenโ€™s a 541 and the 541S. He had previously restored a 541S.

The Jensen 541S was disassembled, having its interior removed and the engine stripped. Some parts were missing. It was purchased by Bridge Classic Cars as a restoration project.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_gallery type=”image_grid” images=”1069,1070,1071,1072,1073,1074,1075,1076,1078,1068″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Chassis and Suspension

The large tubular chassis has been totally restored and or replaced.

The remaining chassis structure was sandblasted and repaired as necessary and the total chassis was painted in gloss chassis black.

The foot wells, front and back, are made of triple marine ply that is protected on both sides with 3mm aluminium plate and bonded to the chassis cross and longitude rails.

In the front floors pans there are removable panels to access the jack mounts. These apertures are closed with the same floor structure with a holding wing nutโ€™s and secondary clamps.

The suspension was totally rebuilt and Proteck Adjustable shock absorbers were fitted.

The front dampers were rebuilt by SCP (Specialist Car Products) of Tamworth.

Running Gear, Braking and Fuel Systems

All the running gear was removed from the car. The back axle was stripped, cleaned and rebuilt and the casings again were painted black. The differential was filled with โ€œCOMMA LSD LS80W-90 differential oilโ€.

The braking system was totally rebuilt. The calliperโ€™s were rebuilt and refurbished by โ€œPast Partsโ€ of Bury St Edmunds as was the brake servo.

New discs and โ€œCounty Asbestos Free brake padsโ€ were fitted and the total system was reinstalled using all new brake lines, calliper hoses and filled with โ€œComma Dot 4 Synthetic brake fluidโ€.

New wheel bearings were fitted and the steering rack was totally rebuilt and fitted with โ€œMorris Lubricants KP400โ€ rather than normal grease to lighten the non power assisted steering.

The fuel system has been totally rebuilt or renewed using the existing fuel tank.

The exhaust is bespoke stainless with twin pipes manufactured by others and fitted by us during refitting.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_gallery type=”image_grid” images=”1081,1082,1083,1084,1085,1086,1087,1088,1089,1090,1091,1092,1093,1094,1095,1096,1097,1098,1099,1100,1101,1102,1103,1104,1105,1106,1107,1108″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Main Body

The glass fibre body was in reasonable condition and free of any previous accident damage.

It had been stripped of top coat paint leaving a faded grey colour which had over the years been left to the elements.

Crazing within the main body tub was minimal but there was more crazing on the one piece bonnet section.

The body was totally stripped for paint and all crazing was taken back to original fibre mat, repaired and gelled.

At this time many original mould ripples and imperfections were removed to achieve the best finish possible.

Jensen 541S

The car was repainted in Jensen Royal Blue.

Colour code ICI3310B.

Chrome and External Fittings

All external chrome was repairedย and refinished in triple coatedย hardened chrome by Wyatt Polishingย of Thetford in Norfolk. The originalย front grill was lost before the carย was purchased and was a nonย available part to replace.

A new tool was made to press aย new grill and a new stainlessย template was laser cut and pressedย on the new tooling . The finished grillย was then polished.

Jensen 541S Front Grill

The number plates which are custom built Aluminium raised letters and numbers riveted to a black background that were made and supplied by Framptons.

Jensen 541S Number Plate

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Engine and Gearbox

The engine was rebuilt by renowned racing engine builder Don Warman of Maldon in Essex.

The cylinder head is a Dennis Welsh Motorsport Alloy โ€œNumber 002โ€ which gives compression of 8.3-1 Ratio.

It has a valve clearance of 12โ€ Thou and a head bolt torque of 75lbft.

The pistons are Dennis Welsh Motorsport Omega Fast Road.

The engine oil is โ€œComma Classic 20W50 with a Fleetguard FF4003 oil filterโ€.

It has an Accuspark Electronic Ignition System fitted.

The Hydramatic gearbox was drained of its fluids, inspected and deemed to be in fantastic condition. The drained oil was clean and free of any foreign bodies. The whole unit was cleaned, reassembled and refilled with โ€œComma AQF mineral transmission fluidโ€.

The Dynamo was replaced with a Dynamator which has the original looks of the dynamo but is an Alternator for better charging and voltage stabilisation.

Jensen 541S

Electrics

The electrics of the car have been either totally renewed or overhauled.

A new โ€œAutosparkโ€ wiring loom was fitted.

The headlights were converted to new โ€œLucas H4 Halogen headlampsโ€.

All other electrical items were refurbished and refitted.

Glass

The rear screen and back windows are made of Perspex from โ€œProject Plastics of Colchesterโ€ who re-formed and cut to size the shaped units.

Front screen, front door glass, quarter lights are all original and fitted with new rubbers.

Jensen 541S Screen[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Badges and Decals

Original badges have been refurbished where possible and new badges have been sourced and purchased as necessary.

The Jensenโ€™s decals were sourced and fitted as necessary.

Kick Plates and Door Shut Protectors

These were beyond repair, a new set were remade to the original design in Australia and shipped to the UK.

Interior

The interior is โ€œUK Hide Autocalfโ€ mulberry leather with matching mulberry vinyl. The carpets are high grade in โ€œAS Trim code No: German 23X318โ€ with a black boot carpet piped in mulberry and a custom made tool roll in black vinyl.

The ceiling cloth has been replaced with a โ€œBoyriven Cream HLPVC 5684โ€ mounted on the original wires to ensure the correct shape was kept at all times.

The new seatbelts were sourced at โ€œAH Sparesโ€ and although not original to the car they are a period seat belt used in the 1960โ€™s Austin Healeyโ€™s. This is a very safe option that suits it very well.

All of the dashboard instrumentation has been refurbished or replaced.

All the dials were rebuilt by The Gauge Shop. They have been rechromed, had their dials and needles refurbished. All dials were calibrated prior to fitting.

A period radio has been fitted with concealed speakers.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_gallery type=”image_grid” images=”1116,1117,1118,1119,1120,1112″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Wheels and Tyres

The original steel wheels were sand blasted, powder coated and refurbished by โ€œWheelworx of Colchesterโ€ and fitted with Ovation Eco Vision V1682 205 with chrome hubcaps.

These have now been changed to Stainless Steel Wire wheels from โ€œMWS (Motor Wheel Services)โ€ and shod with Pirelli Cinterato 185 VR15.

Jensen 541S

These wheels are centre splined with stainless steel wheel spinners.

Specification

PAINT CODE: ICI 3310B

PAINT COLOUR: JENSEN ROYAL BLUE

BRAKE FLUID: COMMA DOT 4 SYNTHETIC

CYLINDER HEAD: DENNIS WELSH MOTORSPORT ALLOY NUMBER 002 FAST ROAD

COMPRESSION: 8.3-1 RATIO

VALVE CLEARANCE: 12โ€ THOU

HEAD BOLT TORQUE: 75lbft

IGNITION SYSTEM: ACCUSPARK ELECTRONIC

ENGINE OIL: COMMA CLASSIC 20W50

OIL FILTER: FLEETGUARD LF4003

TRNSMISSION FLUID: COMMA AQF MINERAL

DIFFERENTIAL OIL: COMMA LSD LS80W-90

WIRING LOOM: AUTOSPARKS

S/S WIRE WHEELS: MWS (MOTOR WHEEL SERVICES)

TYRES ON STEEL RIMS: OVATION ECO VISION V1682 205 70R15

TYRES ON WIRE RIMS: PIRRELI CINTERATO 185 VR 15

BRAKE PADS: COUNTY ASBESTOS FREE

SHOCK ABSORBERS: PROTECK ADJUSTABLE[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_text_separator title=”Seckford Hall Hotel, Woodbridge, Suffolk, IP13 6NU”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]It was a beautiful summer’s day, on Saturday 29th August and the day the Jensen was ready to leave us…but not before one final task!

The whole team at Bridge Classic Cars took herย to one of Suffolk’s most beautiful settings, Seckford Hall Hotel in Woodbridge for the completed photoshoot.

A huge thank you to Jason at Sugar & Spice Photography in Felixstowe for the stunning images. We all had a wonderful day and it was lovely to meet all of the hotel guests who took the time to come and chat to us and to admire our Jensen 541S.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_gallery type=”image_grid” images=”2241,2240,2239,2237,2236,2235,2234,2233,2232,2231,2230,2229,2228,2227,2226,2225,2224,2256,2257,2258,2259,2260,2261,2262,2263,2264,2265,2266,2269,2270,2271,2272,2273,2274,2275,2276,2277,2278,2279,2280,2281,2282,2283,2284,2285,2286,2287,2288″][/vc_column][/vc_row][vc_row][vc_column][vc_video link=”https://www.youtube.com/watch?v=MU9kikjjfIY” title=”Mr Andrew Storer, Managing Director of Pukka Pies taking delivery…”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text][/vc_column_text][vc_text_separator title=”One very proud new owner”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Andrew Storer - Pukka Pies

Andrew Storer, Managing Director of Pukka Pies collecting his newly restored Jensen 541S alongside head technician of Bridge Classic Cars, Asa Judd.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Pukka Pies Logo
